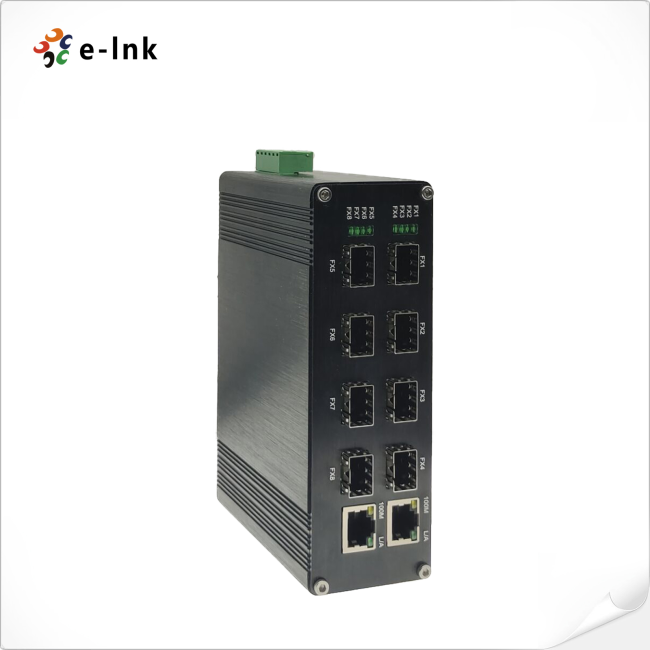

Industrial 2-port 10/100/1000Base-T + 8-port 1000BASE-X SFP Optical Switch
Industrial 2-port 10/100/1000Base-T + 8-port 1000BASE-X SFP Optical Switch
Advantages
► 2 10/100/1000Base-TX + 8 1000Base-X SFP
► 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports 802.3x Flow control
► 9K Bytes Jumbo Frame
► Redundant Power Inputs
► Supports DIN-Rail and Wall-mount installation
► -40°C to 80°C (-40°F to 176°F) operating temperature
Overview
LNK-IMC802G-SFP Series is a unmanaged 8 ports 1000Base-X SFP + 2 ports 10/100/1000Base-T Optical Ethernet Switch. The Switch provides SFP slot to support the use of SFP (Small Form-factor Pluggable) transceiver module. User can choose different types of SFPs (1.25g only). The Switch supports 1 or 2 core Single-mode or Multi-mode fiber. The product operates at temperatures ranging from -40oC to 80oC and DIN-Rail installation.

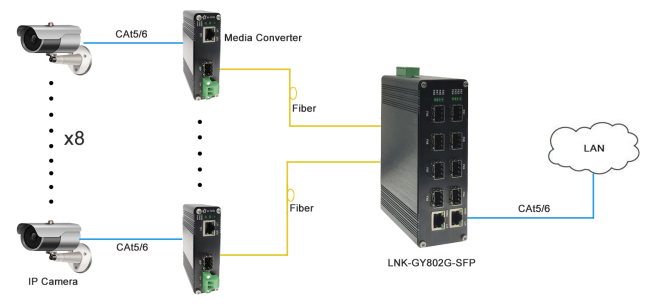

Application
Ordering Information
|
Model |
Description |
|
LNK-IMC802G-SFP |
Industrial Ethernet Switch: 2-Port 10/100/1000Base-TX + 8-port 1000Base-X SFP |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed |
|
Power Options |
► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
