Industrial L2+ 16-Port 10/100/1000T + 4-Port 1000X SFP Managed Ethernet Switch

Industrial L2+ 16-Port 10/100/1000T + 4-Port 1000X SFP Managed Ethernet Switch

Advantages

► Support 16x10/100/1000Base-T + 4x1000Base-X SFP

► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all

► 10K Bytes Jumbo Frame

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► IP40 Aluminum Case

► Supports DIN-Rail installation

-40°C to 80°C (-40°F to 176°F) operating

Overview

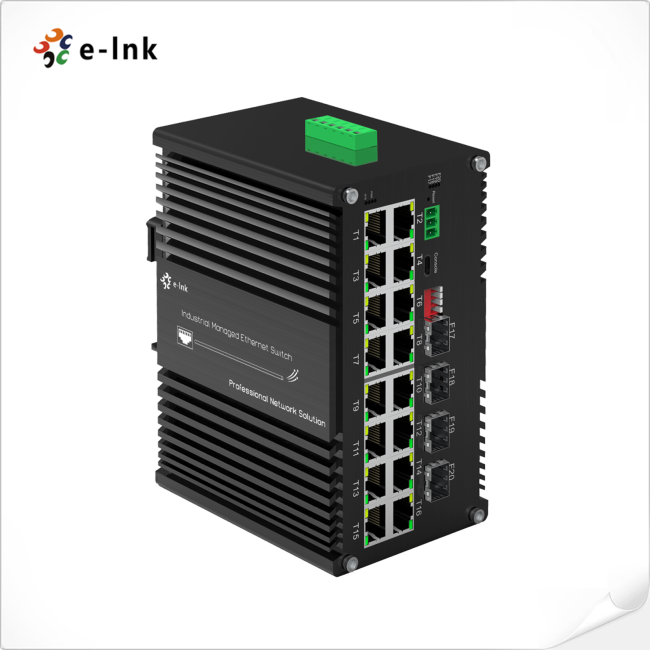

ETH-DIMC2416M series is the L2+ managed 16-port 10/100/1000Base-T + 4-port 1000Base-X SFP hardened Ethernet switch. The Switch has 16 TP ports and 4 fiber ports. The TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; the 1000Base-X SFP port supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.

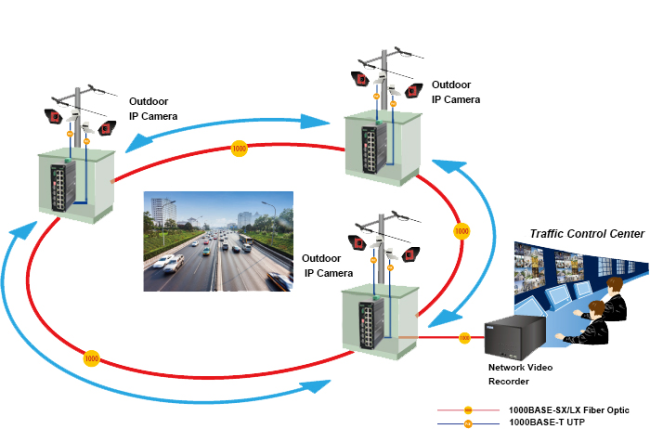

Application

Ordering Information
