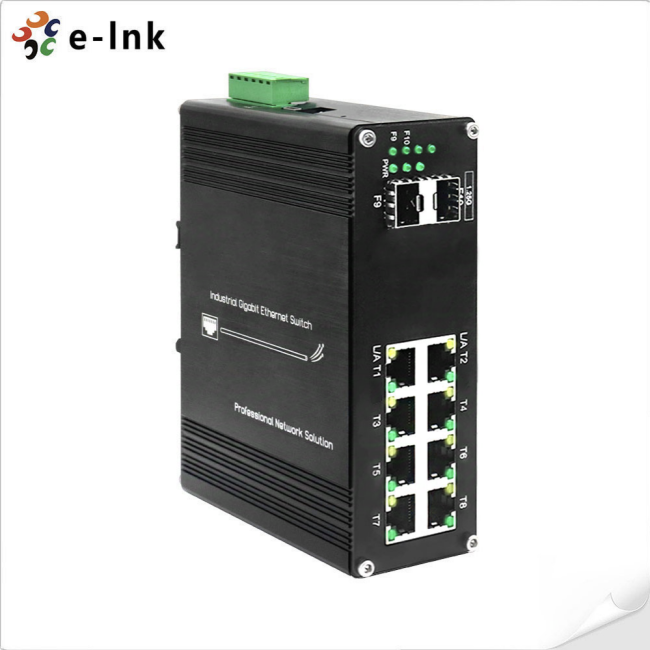

Industrial 8-Port 10/100/1000T + 2-Port 1000X SFP Managed Ethernet Switch
Industrial 8-Port 10/100/1000T + 2-Port 1000X SFP Managed Ethernet Switch
Advantages
► Support 8x10/100/1000Base-T + 2x1000Base-X SFP
► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► DIP switch for serial port configuration
► 16K Bytes Jumbo Frame
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► IP40 Aluminum Case
► Wide-range DC input: 12~48V
► Supports DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature
Overview
LNK-IMC208GL-SFP series is the managed 8-port 10/100/1000Base-T + 2-port 1000Base-X SFP hardened Ethernet switch. The Switch has 8 TP ports and 2 fiber ports. The TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 1000Base-X SFP port supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.

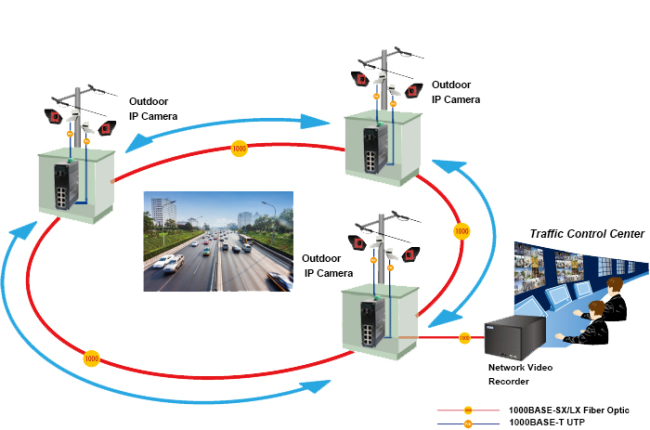

Application
Ordering Information
|
Model |
Description |
|
LNK-IMC208GL-SFP |
Industrial 8-Port 10/100/1000T + 2-Port 1000X SFP Managed Ethernet Switch |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed |
|
Power Options |
► DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
