Industrial 8-port 10/100/1000T + 2-port 100/1000X SFP Managed Ethernet Switch
Industrial 8-port 10/100/1000T + 2-port 100/1000X SFP Managed Ethernet Switch
Advantage
► 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection
► IPv6 Protocol, Electric 4KV surge protection
► Complete status indicator, working state at a glance
► Power input polarity protection design, no worry about wrong operation
► Metal case, no fan design
► Installation method: DIN-Rail /Wall mounting
Overview
LNK-GYM7208G-SFP Serie is a new generation industrial Managed switch with 8-Port 10/100/1000Base-T and 2-Port 100/1000Base-X
SFP that provide stable and reliable Ethernet transmission offered by E-link, with high quality design and reliability. It is positioning in the
broadband network intervention market, to offer and realize Ethernet data exchange, convergence and long-distance optical transmission
with efficient bandwidth and reliable fiber optic network solutions for users. The industrial switch complies with various characteristics such
as mini size, no fan, low power consumption, high reliability and stability, and easy to maintain.
Technical Indexes
|
LED Indicator |
|
|
Power |
Connect-always |
|
RJ45 |
Link/Act: connect-always; data exchange-twinkle Speed light: 100Mbps-always; 10Mbps-twinkle |
|
Fiber |
Link/Act: connect-always; data exchange-twinkle |
|
Power Information |
|
|
Power access mode |
Phoenix terminal, DC seat |
|
Redundant power input |
DC 9-56V |
|
Overload protection |
Yes |
|
Power reverse |
Support |
|
Power consumption |
Full-load<15W |
|
Physical Property |
|
|
Protection grade |
IP40 aluminum case |
|
Cooling mode |
Natural cooling, no fan design |
|
Dimensions |
138mm x 106mm x 41mm (L x W x H) |
|
Installation mode |
DIN trail/wall-mountable |
|
Weight |
600g |
|
Working Environment |
|
|
Operating Temperature |
-40℃~80℃ |
|
Operating Humidity |
5%~90% non-condensing |
|
Storage Temperature |
-40℃~80℃ |
|
Warranty |
|
|
MTBF |
100,000 hours |
|
Defects Liability Period |
5-year warranty, lifetime technical support |

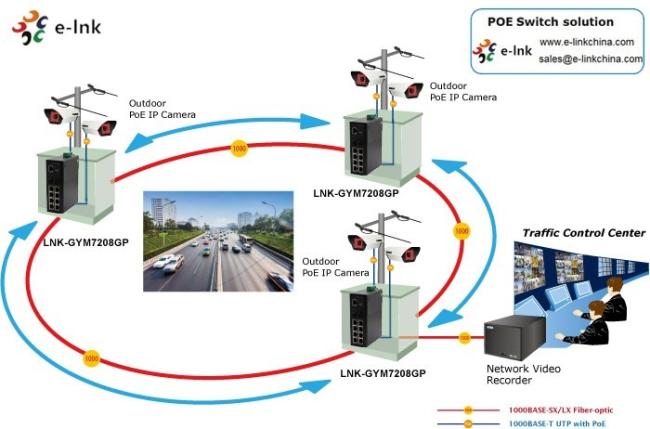

Application
Ordering Information
|
Model |
Description |
|
LNK-GYM7208G-SFP |
Managed 8-Port 10/100/1000Base-T + 2-Port 100/1000Base-X SFP Ethernet Switch |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
►24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
