EN50155 Industrial 1-port 10/100/1000 PoE Injector with 30W output, M12 connector
EN50155 Industrial 1-port 10/100/1000 PoE Injector with 30W output, M12 connector
PoE Injector Adapter Advantages
► 12~48VDC Power Input
► Fully compliant with IEEE802.3af/at

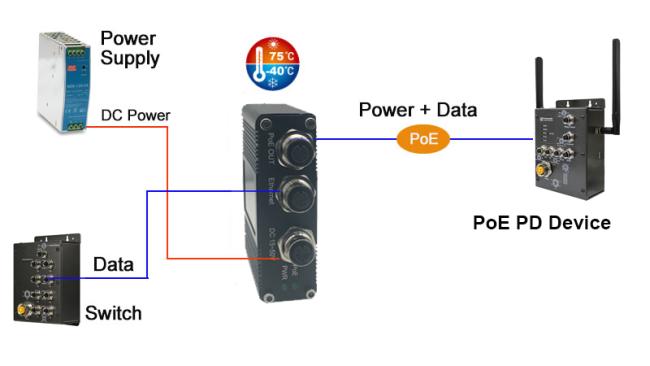

► Support 10/100/1000Base-TX for power and data output
► Support DIN-Rail & Wall-mount installation
► Use M12 connectors to ensure tight and robust connections
Technical Indexes
| Electrical and Mechanical | |
| Input Power: | 12~48VDC on 5-pin female M12 A-Coding |
| Power Consumption: | 36W Max. |
| PoE (Power over Ethernet) | |
| Standard: | IEEE802.3af/at |
| Port: | M12 connector (8-pin female M12 A-coding) |
| Max. Power per Port: | 30W Max |
| LED Indicators: | |
| Power: | Power Status |
| PoE: | PoE Status |
| Casing: | Aluminum Case |
Overview
E-link EN50155 compliant PoE Injectors are designed for industrial applications, such as rolling stock, vehicle, and railway
applications. The PoE Injector is an advanced IEEE802.3at compliant device with Intelligent Detection that provides 1-port
10/100/1000 Base-T(X) PoE output which is compliant with EN50155. It is specifically designed for the toughest industrial
environments.
Ordering Information
| Model | Description |
| LNK-INJ301-M12 | EN50155 Industrial 1-port 10/100/1000M M12 PoE Injector 12~48VDC Power Input |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately |
