Network Managed Industrial 16-port 10/100/1000BASE-T + 4-port 100/1000BASE-X SFP Ethernet Switch
Network Managed Industrial 16-port 10/100/1000BASE-T
+ 4-port 100/1000BASE-X SFP Ethernet Switch
Advantage
► 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection
► Support 16K bytes giant frame, compatible with various extension protocol
► Complete status indicator, working state at a glance
► Power input polarity protection design, no worry about wrong operation
► Metal case, no fan design
► Installation method: DIN trail /Wall mounting
Overview
LNK-GYM7416G-SFP Series is a new generation industrial Managed Ethernet switch with 16-Port
10/100/1000Base-TX and 4-Port 100/1000Base-X SFP that provide stable and reliable Ethernet
transmission offered by E-link, with high quality design and reliability. It is positioning in the broadband
network intervention market, to offer and realize Ethernet data exchange, convergence and long-distance
optical transmission with efficient bandwidth and reliable fiber optic network solutions for users. The
industrial switch complies with various characteristics such as mini size, no fan, low power consumption,
high reliability and stability, and easy to maintain.
Technical Indexes
|
Power Information |
|
|
Power access mode |
Phoenix terminal, DC seat |
|
Redundant power input |
DC 9-56V / DC5V |
|
Overload protection |
Yes |
|
Power reverse |
Support |
|
Power consumption |
Full-load<15W |
|
Physical Property |
|
|
Protection grade |
IP40 aluminum case |
|
Cooling mode |
Natural cooling, no fan design |
|
Dimensions |
160mm x 130mm x 70mm (L x W x H) |
|
Installation mode |
DIN Rail/Wall-mountable |
|
Weight |
1000g |
|
Working Environment |
|
|
Operating Temperature |
-40℃~80℃ |
|
Operating Humidity |
5%~90% non-condensing |
|
Storage Temperature |
-40℃~85℃ |
|
Warranty |
|
|
MTBF |
500,000 hours |
|
Defects Liability Period |
5 year warranty, lifetime technical support |

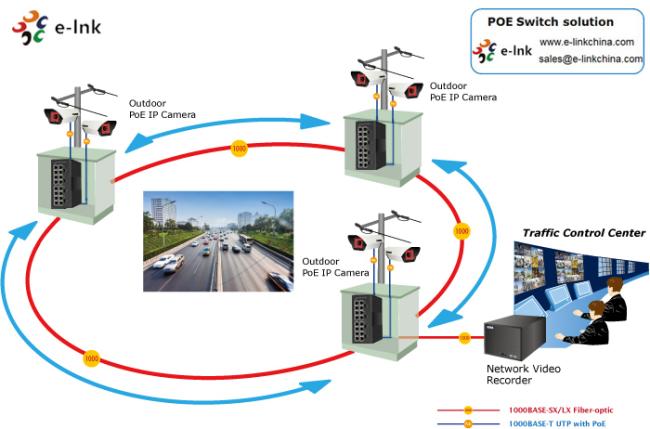

Application
Ordering Information
|
Model |
Description |
|
LNK-GYM7416G-SFP |
Managed 16-Port 10/100/1000Base-T + 4-Port 100/1000Base-X SFP Ethernet Switch |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed, Wall Mount Bracket is included. |
|
Power Options |
►24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
