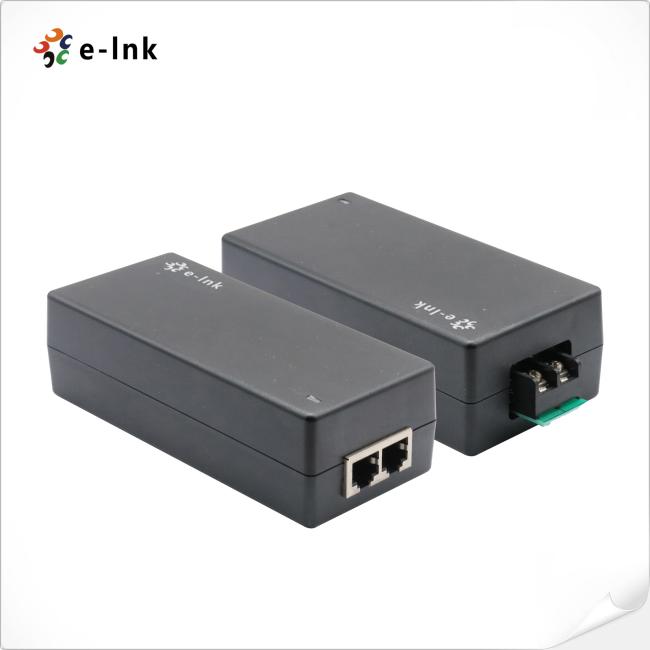

36-72VDC IN, 24V 24W Gigabit Passive PoE OUT, DC to DC Converter and PoE Injector
36-72VDC IN, 24V 24W Gigabit Passive PoE OUT, DC to DC Converter and PoE Injector
36-72VDC IN, 24V 24W Gigabit Passive PoE OUT, DC to DC Converter and PoE Injector Advantages
► Input Voltage 36-72VDC; Output 24VDC (Passive)
► Integrated Gigabit PoE Inserter
► High Power 24W
► Support 10/100/1000Base-T
► Nominal Frequency 50/60KHz
► High Efficiency > 85%
► Over-Voltage/Load/Temperature & Short Circuit protections
► Plug & Play, no configuration required
► Safe and Reliable Power to WLAN Access Points
► Automatic Detection and Protection of Non-standard Ethernet Terminals
► Storage Temperature: -20°C to 70°C
36-72VDC IN, 24V 24W Gigabit Passive PoE OUT, DC to DC Converter and PoE Injector Overview
The LNK-DC-P24G is a low cost and high efficiency solution for those requiring Passive Power over Ethernet from a 36-72VDC voltage source. They have an integrated POE injector to apply the power and data output to the CAT5/6 Ethernet cable. The output voltage is regulated and protected.
They have a common (-) and two (+) for connecting 2 power sources, such as a primary with a backup power source. A metal enclosure model is available for industrial applications.
They accept Gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45 output jack. It works by supplying power on Ethernet pins 4,5(V+) and 7,8(V-). This converter has various protections for surge, short circuit and overload. Other models have power outputs up to 24W.
36-72VDC IN, 24V 24W Gigabit Passive PoE OUT, DC to DC Converter and PoE Injector Technical Indexes
|
Ethernet |
|
|
Standards: |
IEEE 802.3 10Base-T Ethernet |
|
|
IEEE 802.3u 100Base-TX Fast Ethernet |
|
|
IEEE 802.3ab 1000Base-T Gigabit Ethernet |
|
Processing Type: |
Forward |
|
|
Half-duplex, Full-duplex |
|
Forward Filter Rate: |
1,488,000pps (1000Mbps) |
|
Cabling: |
10/100/1000Base-T: Cat5 or above |
|
Maximum Distance: |
Cat. 5, 5e, 6 up to 100m (328ft) |
|
Connector: |
LAN: 1 x RJ-45 STP, “Data” Input Port POE: 1 x RJ-45 STP, “Data + Power” Output Port |
36-72VDC IN, 24V 24W Gigabit Passive PoE OUT, DC to DC Converter and PoE Injector Ordering Information
|
Model |
Description |
|
LNK-DC-P24G |
36-72VDC IN, 24V 24W Gigabit Passive PoE OUT, DC to DC Converter and PoE Injector |
