Industrial 4-port 10/100/1000T 802.3bt PoE + 2-port 100/1000X Ethernet Switch
Industrial 4-port 10/100/1000T 802.3bt PoE + 2-port 100/1000X Ethernet Switch
Industrial 4-port 10/100/1000T 802.3bt PoE + 2-port 100/1000X Ethernet Switch Features
1. 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
2. Supports IEEE 802.3bt PoE+ (90W per port)
3. SFP, SC, FC, ST Optional
4. Supports 802.3x Flow Control
5. IEEE 802.3az Energy Efficient Ethernet (EEE)
6. Redundant Power Inputs

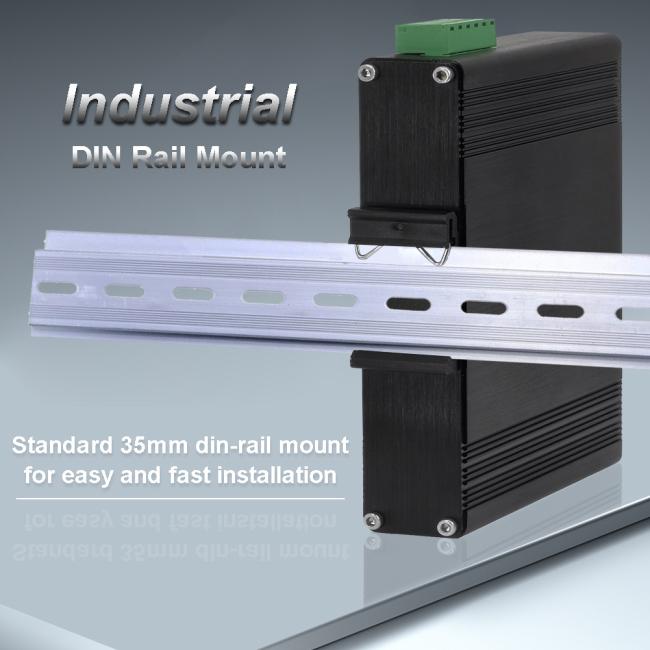

7. Supports Wall-mount and DIN-Rail installation
8. -40°C to 80°C (-40°F to 176°F) operating temperature
Industrial 4-port 10/100/1000T 802.3bt PoE + 2-port 100/1000X Ethernet Switch Overview
LNK-IMC204GP90 Series is a 4 ports 10/100/1000Base-TX + 2 port 100/1000Base-FX Hardened PoE switch. The Switch provides 4 port PoE++ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. The 100/1000Base-FX supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Industrial 4-port 10/100/1000T 802.3bt PoE + 2-port 100/1000X Ethernet Switch Technical Indexes
|
Interface |
|
|
Connector: |
4 x RJ45 |
|
Optical Port: |
2 x 100/1000Base-FX (SFP, SC, FC, ST Optional) |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
48~57V DC, Redundant Power (6-pin Terminal Block) |
|
Power Consumption: |
360W Max. (PoE in use) |
|
5W Max. (PoE not in use) |
|
|
Standard: |
IEEE802.3af/at/bt |
|
PoE: |
|
|
Port: |
RJ45 Port 1 ~ Port 4 |
|
Max. Power per Port: |
90W Max per port |
|
Power Pin Assignment |
1/2(+), 3/6(-) or 4/5(+), 7/8(-) |
|
Protection: |
|
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
LED Indicators: |
|
|
Power: |
Power1, Power2 Status |
|
PoE: |
Per Port Status |
|
Ethernet (Per Port): |
Link/Activity |
|
SFP: |
FX1, FX2 |
|
Dimensions (WxDxH): |
150 x 115 x 30 mm |
|
Weight: |
0.5Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
Industrial 4-port 10/100/1000T 802.3bt PoE + 2-port 100/1000X Ethernet Switch Ordering Information
|
Model |
Description |
|
LNK-IMC204GP90 |
Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 2-port 100/1000BASE-X Fiber, Multimode, Dual Fiber, SC, 550m |
|
LNK-IMC204GP90-20 |
Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 2-port 100/1000BASE-X Fiber, Single Mode, Dual Fiber, SC, 20KM |
|
LNK-IMC204GPS90-20 |
Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 2-port 100/1000BASE-X Fiber, Single Mode, Single Fiber, SC, 20KM |
|
LNK-IMC204GPF90-20 |
Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 2-port 100/1000BASE-X Fiber, Single Mode, Single Fiber, FC, 20KM |
|
LNK-IMC204GP90-SFP |
Industrial 4-port 10/100/1000BASE-T (4-port PoE++) + 2-port 100/1000BASE SFP Ethernet Switch |
|
SFP Options |
SFP option. Please select your SFP on our SFP Options Page |
|
SFP module is to be purchased separately. |
|
|
Mounting Options |
Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
480W/10A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
Power Supply is to be purchased separately. |

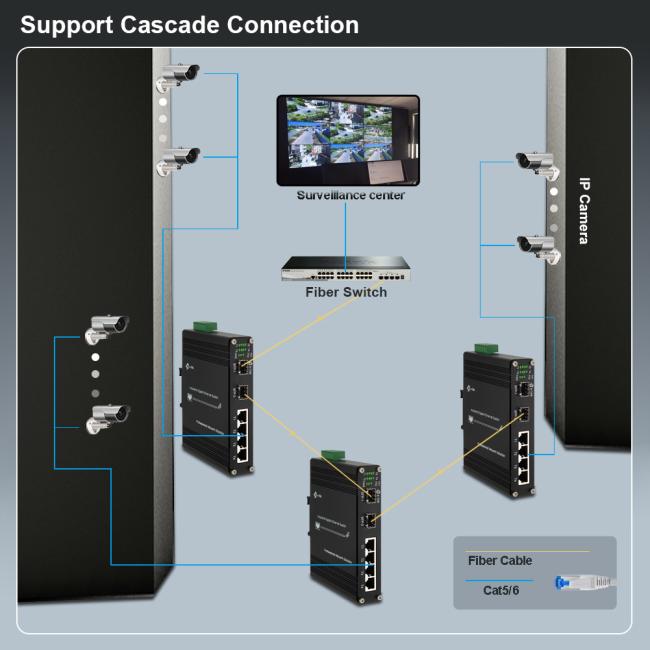

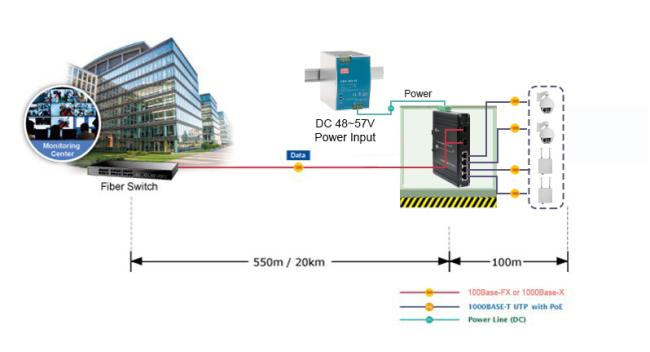

Industrial 4-port 10/100/1000T 802.3bt PoE + 2-port 100/1000X Ethernet Switch Application Picture

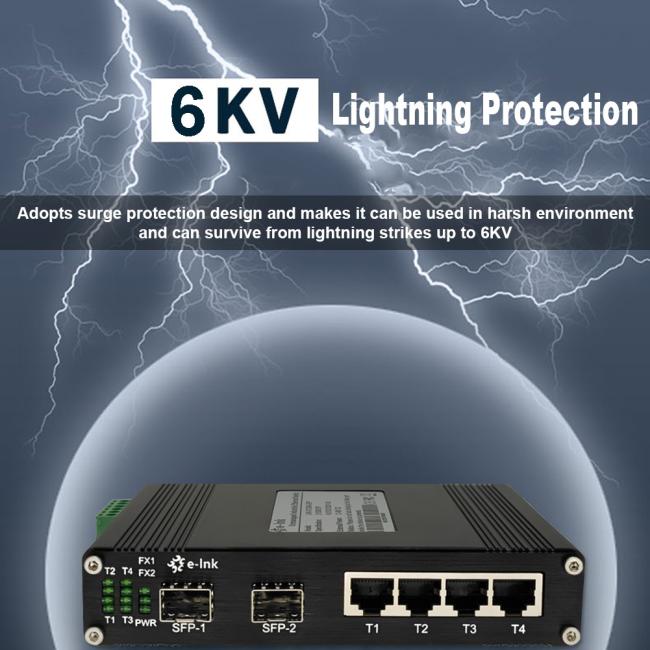

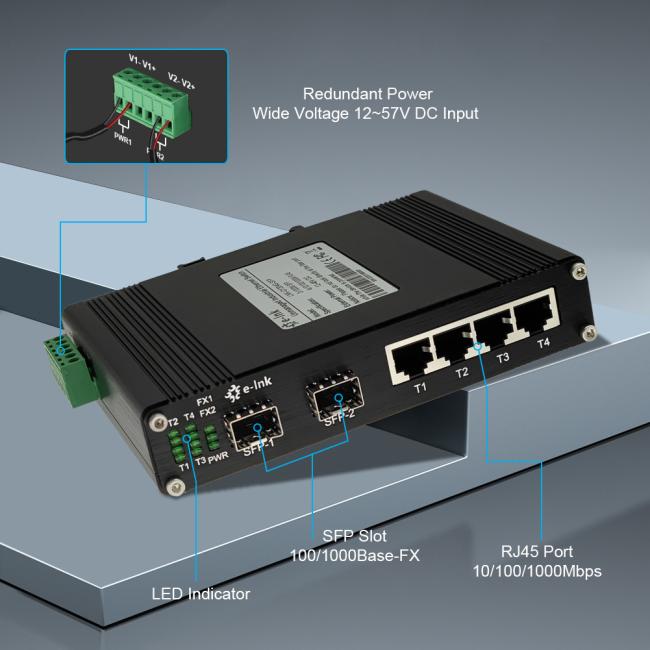

Industrial 4-port 10/100/1000T 802.3bt PoE + 2-port 100/1000X Ethernet Switch Pictures
