Product Description

Model: LNK-IMC104G-SFP Series

Overview

The LNK-IMC104G-SFP Series is a high-quality Mini Industrial 4-Port 10/100/1000T + 1-

Port 100/1000X SFP Gigabit Ethernet Switch, featuring a 12~48VDC wide range power

input to meet diverse industrial power requirements. As a Mini Industrial 4-Port 10/100/

1000T + 1-Port 100/1000X SFP Gigabit Ethernet Switch, it integrates four 10/100/1000T

copper ports and one 100/1000X SFP fiber port, offering a flexible and compact solution

for industrial networking setups.

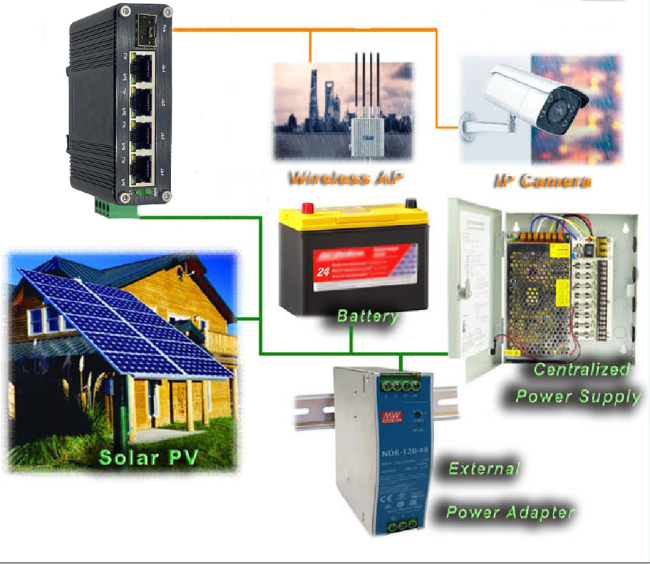

This unmanaged industrial Ethernet switch is meticulously designed to align with critical

industrial standards, ensuring compatibility and reliability in demanding environments. Its

four 10/100/1000T ports support seamless connectivity with a variety of network devices

such as IP cameras, wireless access points, and industrial sensors, while the 100/1000X

SFP port accommodates different SFP modules—including single-mode and multi-mode

fiber options—enabling versatile long-distance data transmission across remote industrial

sites.

Designed to thrive in harsh conditions, the Mini Industrial 4-Port 10/100/1000T + 1-Port

100/1000X SFP Gigabit Ethernet Switch delivers reliable operation against vibration and

shock, with a wide operating temperature range that allows it to adapt to extreme climatic

conditions, from freezing cold to intense heat. It complies with CE and FCC standards and

has passed 100% burning tests, guaranteeing exceptional durability and safety for industrial

applications. With its economical design and straightforward operation, it serves as an excellent

choice for cost-effective industrial Ethernet connections, meeting the demands of factory

automation, outdoor surveillance, remote industrial networks, and other industrial settings

where stable and efficient networking is essential.

Features

► 100/1000BASE-X SFP slots for SFP type auto detection

► 4 10/100/1000BASET RJ45 auto-MDI/MDI-X ports

► 12~48VDC wide range power input

► Supports 802.3x Flow control

► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)

► Supports DIN-Rail and Wall-mount installation

► Industry standard design, dustproof and close design IP40, rugged high-strength metal case

► -40°C to 80°C (-40°F to 176°F) operating temperature.

Technical Indexes

Ethernet
Standards:	IEEE 802.3 Ethernet
	IEEE 802.3u Fast Ethernet
	IEEE 802.3ab Gigabit Ethernet
	IEEE 802.3x Full-Duplex Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer:	1Mbits
Packet Length:	10Kbytes
MAC Address Table:	8K
Switch Fabric:	10Gbps/non-blocking
Exchange Property	Backplane bandwidth: 20Gbps; Packet forwarding rate: 14.88Mpps
Connector:	4 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
Interface
Connector:	4 x RJ45
Optical Port:	1 x SFP 1000Base-X or 100Base-FX (auto detection)
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~48VDC (Terminal Block)
Power Consumption:	<6W
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
Dimensions (WxDxH):	95 x 70x 29mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
LED Indicators:
PWR:	Power
L/A:	Link/Activity
SPD	Data Rate
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55032:2017
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC104G-SFP	Mini Industrial 4-Port 10/100/1000T + 1-Port 100/1000X SFP Gigabit Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately
