Industrial 4-port 10/100/1000BASE-T + 2-port 1000BASE-SFP 250m PoE Switch
Industrial 4-port 10/100/1000BASE-T + 2-port 1000BASE-SFP 250m PoE Switch
Industrial 4-port 10/100/1000BASE-T + 2-port 1000BASE-SFP 250m PoE Switch Advantages

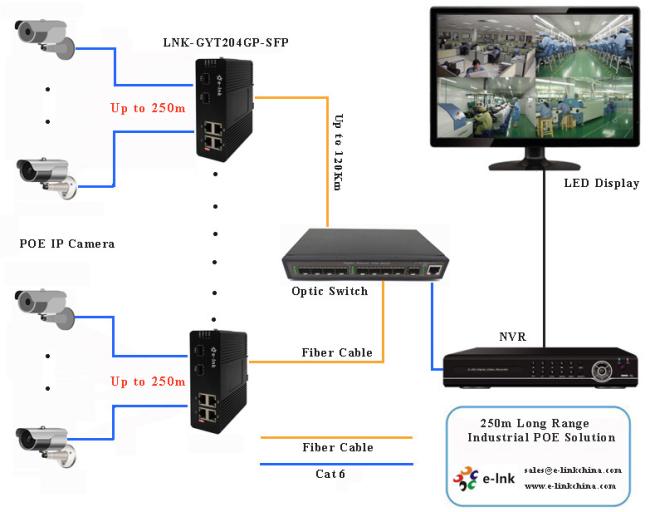

► Transmission distance 250m, it can be flexible installation for wireless AP and surveillance project
► It will give the speed of 10Mbps at 250meter when connect IP cameras
► 4*10/100Base-TX POE port and 2 uplink 100M Ethernet slot
► 10/100Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Compatible with both IEEE802.3at(30W) and IEEE802.3af (15.4W)
► Supports 802.3x Flow control
► Port Lightning Protection: General Mode 6KV
► Redundant Power Inputs
► Supports Wall-mount and DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature
Industrial 4-port 10/100/1000BASE-T + 2-port 1000BASE-SFP 250m PoE Switch Overview
LNK-GYT204GP-SFP Series is 250m Industrial PoE Switch with 4 ports 10/100/1000Base-TX and 2 port 1000Base-SFP. The Switch provides 4 port PoE+ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. The 1000Base-SFP supports 1 or 2 core Single-mode or Multi-mode fiber. The product fully combines the characteristics of security surveillance, provides fast packet forwarding ability and abundant backplane bandwidth, which ensures clear image and fluent transmission. Inserted static, surge protection circuit can improve product stability. The product supports one key VLAN mode, can achieve VLAN, QoS priority after configuration, control the Net storm, protect the information security, prevent the viral transmission and Ethernet attack, fully satisfy the Ethernet video security surveillance system and Ethernet project needs.
Industrial 4-port 10/100/1000BASE-T + 2-port 1000BASE-SFP 250m PoE Switch Technical Indexes
|
Item |
Description |
||||
|
Power |
Power Supply |
Industrial Power Adaptor |
|||
|
Voltage range |
DC48V~57V |
||||
|
Consumption |
＜5W , PoE output < 120W |
||||
|
Ethernet |
Ethernet Port |
1～4 ports: default mode: 10/100/1000BASE-TX; CCTV mode:10BASE-T; SFP:1000BASE-X |
|||
|
Transmission Distance |
Downlink port: default mode: 0～100m; CCTV mode - Cat6: 220m, Cat7: 250m SFP: depends on SFP module performance |
||||
|
Cable |
Cat6/7 network cable |
||||
|
PoE Protocol |
IEEE802.3af/at protocol |
||||
|
PoE Power Supply |
End-span |
||||
|
Ethernet Exchange Specification |
Ethernet Standard |
IEEE802.3 10BASE-T; IEEE802.3u 100BASE-TX; IEEE802.3ab 1000BASE-TX; IEEE802.3z 1000-SX/LX; IEEE802.3 X |
|||
|
Packet Buffer |
2.75M |
||||
|
MAC Address |
4K |
||||
|
Status |
Power |
Power1, Power2 |
|||
|
Optical Port |
FX1, FX2 |
||||
|
Ethernet Port |
1～4 ports : green light indicates network status, yellow light indicates PoE status |
||||
|
Protection Level |
Lighting Protection |
6KV , Per: IEC61000-4-5 |
|||
|
ESD |
6KV/ 8KV , Per: IEC61000-4-2 |
||||
|
|
Working Temperature |
-40℃~75℃ |
|||
|
Storage Temperature |
-40℃~85℃ |
||||
|
Humidity (Non-condensing) |
0~95% |
||||
|
Mechanical |
Dimension |
139mm×109mm×50mm |
|||
|
Out Shell |
Aluminum |
||||
|
Color |
Black |
||||
|
Weight |
0.6kg |
||||
|
Power/Distance |
Distance |
100m |
150m |
200m |
250m |
|
Power |
26W |
24W |
23W |
20W |
|
Industrial 4-port 10/100/1000BASE-T + 2-port 1000BASE-SFP 250m PoE Switch Ordering information
|
Model |
Description |
|
LNK-GYT204GP-SFP |
4-Port 10/100/1000Base-T PoE(up to 250m) + 2-Port 1000Base-X SFP Ethernet Switch |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed, Wall Mount Bracket is included. |
|
Power Options |
►120W/2.5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
