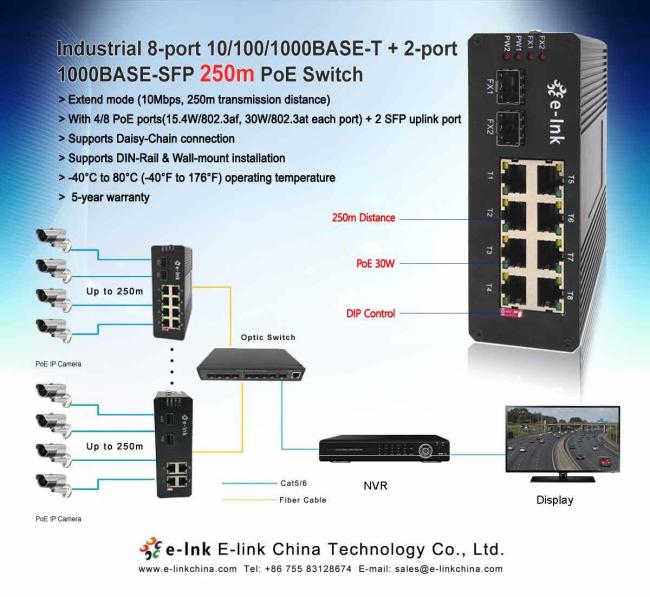

Industrial 8-port 10/100/1000BASE-T + 2-port 1000BASE-SFP 250m PoE Switch
Industrial 8-port 10/100/1000BASE-T + 2-port 1000BASE-SFP 250m PoE Switch
Industrial 8-port 10/100/1000BASE-T + 2-port 1000BASE-SFP 250m PoE Switch Advantages
► Transmission distance 250m, it can be flexible installation for wireless AP and surveillance project
► It will give the speed of 10Mbps at 250meter when connect IP cameras
► 8 10/100/1000Base-TX + 2 1000Base-FX
► 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports IEEE 802.3at PoE+ (30W per port)
► Supports 802.3x Flow control
► 9K Bytes Jumbo Frame
► Redundant Power Inputs
► Supports Wall-mount and DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature
Industrial 8-port 10/100/1000BASE-T + 2-port 1000BASE-SFP 250m PoE Switch Overview
LNK-GYT208GP-SFP Series is 250m Industrial PoE Switch with 8 ports 10/100/1000Base-TX and 2 port 1000Base-SFP. The Switch provides 8 ports PoE+ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. The 1000Base-SFP supports 1 or 2 core Single-mode or Multi-mode fiber. The product fully combines the characteristics of security surveillance, provides fast packet forwarding ability and abundant backplane bandwidth, which ensures clear image and fluent transmission. Inserted static, surge protection circuit can improve product stability.
Industrial 8-port 10/100/1000BASE-T + 2-port 1000BASE-SFP 250m PoE Switch Technical Indexes
|
Item |
Description |
||||
|
Power |
Power Supply |
Industrial Power Adaptor |
|||
|
Voltage range |
DC48V~57V |
||||
|
Consumption |
＜5W , PoE output < 240W |
||||
|
Ethernet |
Ethernet Port |
1～8 ports: default mode: 10/100/1000BASE-TX; CCTV mode:10BASE-T; SFP:1000BASE-X |
|||
|
Transmission Distance |
Downlink port: default mode: 0～100m; CCTV mode - Cat6: 220m, Cat7: 250m SFP: depends on SFP module performance |
||||
|
Cable |
Cat6/7 network cable |
||||
|
PoE Protocol |
IEEE802.3af/at protocol |
||||
|
PoE Power Supply |
End-span |
||||
|
Ethernet Exchange Specification |
Ethernet Standard |
IEEE802.3 10BASE-T; IEEE802.3u 100BASE-TX; IEEE802.3ab 1000BASE-TX; IEEE802.3z 1000-SX/LX; IEEE802.3 X |
|||
|
Packet Buffer |
2.75M |
||||
|
MAC Address |
4K |
||||
|
Status |
Power |
Power1, Power2 |
|||
|
Optical Port |
FX1, FX2 |
||||
|
Ethernet Port |
1～8 ports : green light indicates network status, yellow light indicates PoE status |
||||
|
Protection Level |
Lighting Protection |
6KV , Per: IEC61000-4-5 |
|||
|
ESD |
6KV/ 8KV , Per: IEC61000-4-2 |
||||
|
|
Working Temperature |
-40℃~75℃ |
|||
|
Storage Temperature |
-40℃~85℃ |
||||
|
Humidity (Non-condensing) |
0~95% |
||||
|
Mechanical |
Dimension |
139mm×109mm×50mm |
|||
|
Out Shell |
Aluminum |
||||
|
Color |
Black |
||||
|
Weight |
0.6kg |
||||
|
Power/Distance |
Distance |
100m |
150m |
200m |
250m |
|
Power |
26W |
24W |
23W |
20W |
|
Industrial 8-port 10/100/1000BASE-T + 2-port 1000BASE-SFP 250m PoE Switch Ordering information
