Industrial Injector Gigabit 95W 802.3bt PoE++12~48VDC RJ45 Port
Industrial Injector Gigabit 95W 802.3bt PoE++12~48VDC RJ45 Port
Features
1. 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port (Data + Power)
2. Support 95W LTPoE++ Power Sourcing Equipment

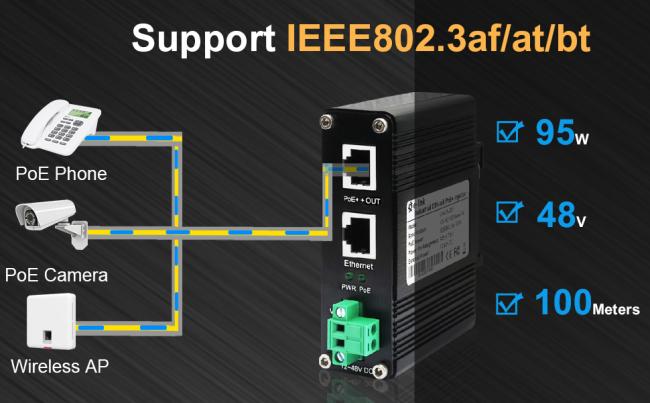

3. Complies with IEEE 802.3at/bt PoE end-span/mid-span PSE
4. Support 10/100/1000Base-TX
5. Extensive LED indicators for PoE diagnostics
6. 12~48V DC wide range power input with power booster function
7. Up to 95-watt PoE budget (48VDC), 95-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
8. Supports DIN-Rail and Wall-mount installation
Overview

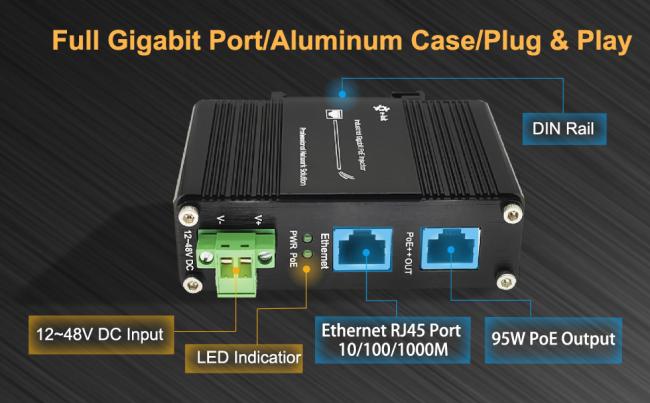

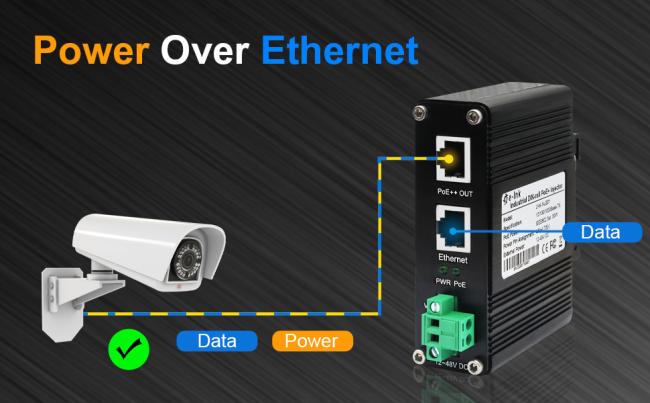

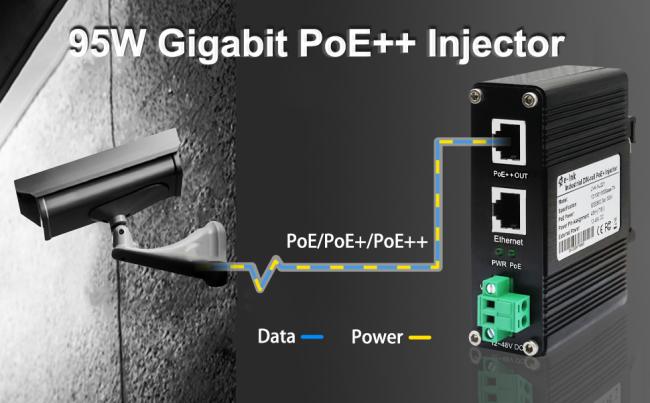

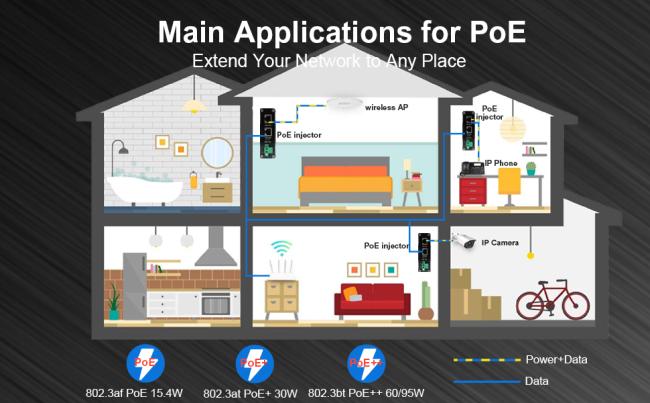

The LNK-INJ301-90 product is an Industrial hardened Gigabit single-port PoE+ IEEE 802.3bt / LTPoE++ 95W 10/100/1000Base-TX PoE Injector with 12~48V DC Input and Voltage Booster. It allows you to connect the PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. It provides 95W PoE output.
Technical Indexes
|
Ethernet |
|
|
Standards: |
IEEE802.3 10 BASE-T Ethernet IEEE802.3u 100 BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE802.3 x Flow Control |
|
Processing Type: |
Forward |
|
|
Half-duplex, Full-duplex |
|
Forward Filter Rate: |
1,488,000pps (1000Mbps) |
|
Cabling: |
Twisted-pair cable up to 100 meters (328ft) 10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A 100BASE-TX: 4-pair UTP Cat. 5, 5e, 6, 6A 1000BASE-T: 4-pair UTP Cat. 5e, 6, 6A |
|
Maximum Distance: |
Cat5 UTP up to 100m |
|
Connector: |
2x RJ45 |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48VDC (Terminal Block) |
|
Power Consumption: |
100W Max. |
|
Power over Ethernet: |
|
|
Standard: |
IEEE 802.3bt 4-pair Power over Ethernet |
|
|
IEEE 802.3at Power over Ethernet Plus |
|
|
IEEE 802.3af Power over Ethernet |
|
Port: |
RJ45 |
|
Power Pin Assignment |
Data provide over pairs 1,2TX and 3,6RX Power over spare pairs 1,2,4,5(+) and 3,6,7,8(-) |
|
PoE Budget: |
Up to 95-watt PoE budget (48VDC) Up to 95-watt PoE budget (24VDC) Up to 60-watt PoE budget (12VDC) |
Ordering Information
|
Model |
Description |
|
LNK-INJ301-90 |
Hardened Gigabit 1-port Ethernet Input + 1-port 95W PoE++ Output Injector with 12~48V DC wide range power input |
|
Mounting Options |
Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block |
|
Power Supply is to be purchased separately. |
