HDMI to 3G-SDI Converter Supports SDI output distance up to 100 meters (3G-SDI) 200 meters (HD-SDI) or 300 meters (SD-SDI)

Name: HDMI to 3G-SDI Converter Supports SDI output distance up to 100 meters (3G-SDI) 200 meters (HD-SDI) or 300 meters (SD-SDI)
Brand: E-link China Technology Co.,LTD

Price Negotiable

Price: $25-369

MOQ: 1 pair

Delivery Time: 3-5 working days

Brand: E-link

Product Description

HDMI to 3G-SDI Converter

Model: LNK-HSC110 Series

Overview

The professional signal conversion device is a dedicated HDMI to 3G-SDI Converter, engineered to

enable seamless integration of HDMI sources into SDI-based professional video systems by converting

HDMI signals to SD-SDI, HD-SDI, and 3G-SDI formats for display on SDI monitors, projectors, or broadcast

equipment. As an HDMI to 3G-SDI Converter, it adheres to SMPTE (Society of Motion Picture and Television

Engineers) standards, ensuring reliable compatibility with broadcast-grade, live production, and monitoring

equipment.

This HDMI to 3G-SDI Converter supports a maximum data transfer rate of 2.970 Gbit/s (compliant with SM

PTE 424M), enabling transmission of high-resolution HDMI signals—including 1080p@60Hz—with zero quality

loss. A key feature is its integrated audio synchronization functionality: it automatically embeds HDMI audio

signals into the converted 3G-SDI stream, eliminating the need for separate audio cables and ensuring perfect

audio-visual synchronization—critical for professional applications like live broadcasting, video production, and

event streaming.

Equipped with advanced signal processing technology, the HDMI to 3G-SDI Converter incorporates signal re-

timing and equalization, which compensates for signal attenuation and ensures stable transmission over long

SDI cable runs (up to 100 meters for 3G-SDI). It features a standard HDMI 1.4b input interface (compatible with

most HDMI sources such as cameras, media players, and PCs) and BNC output interfaces for SDI signal distribution,

supporting both point-to-point connection and integration into larger SDI video networks.

For professionals in fields like broadcast television, live event production, and security monitoring, this HDMI

to 3G-SDI Converter simplifies workflow by enabling easy conversion of high-definition HDMI signals to 3G-SDI

for long-distance transmission. Whether connecting an HDMI camera to a broadcast switcher, or extending an

HDMI media player signal to remote SDI monitors in a control room, it delivers reliable performance. Its plug-and-

play design requires no software configuration or technical calibration, allowing quick deployment in time-sensitive

environments, while its rugged metal chassis provides durability and EMI (electromagnetic interference) shielding for

consistent operation in harsh studio or field conditions.

Features

►SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s.

►Supports HDMI input timings: 480i@59.94, 576i, 720p@50/59.94/60,1080i@50/59.94/60, 1080p@23.98/24/25/29.97/30/50/59.94/60.

►480i/576i to SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)

►720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or 1.485/1.001 Gbit/s)

1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)

►Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)

Technical Indexes

Parameter	Specifications
Video amplifier bandwidth	3.4 GHz Max.
Video Intput	1 x HDMI
Video output	1 x BNC (SDI/HD-SDI/3G-SDI)
SDI Transmission Rates	2.970 Gbit/s and 2.970/1.001 Gbit/s
In/Output Resolution	480i, 576i, 720p@50/59.94,60 ,1080i@50/59.94/60 1080p@23.97/24/25/29.97/30/50/59.94/60
HDMI input/output connect	HDMI type A 19Pin
Link Connector	BNC Shielded
Power Adapter	DC5-12V/1A
Operating temperature range	-40℃ to +70℃
Operating humidity range	5 to 90% RH (no condensation)
Shipping weight	0.15 KGS
Dimensions( L x W x H)	804125mm

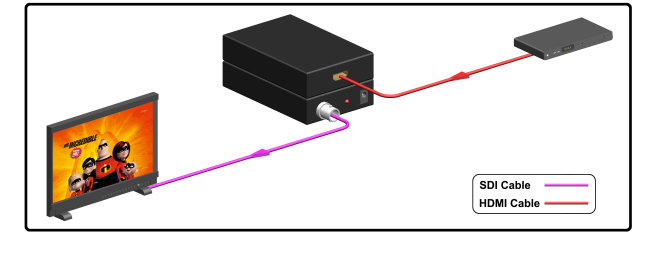

Application
