HDMI Extenders over RG6 Coaxial Cable with Super IR control system, IR transport channel can be forward or backward

Name: HDMI Extenders over RG6 Coaxial Cable with Super IR control system, IR transport channel can be forward or backward
Brand: E-link China Technology Co.,LTD

Price Negotiable

Price: $25-369

MOQ: 1 pair

Delivery Time: 3-5 working days

Brand: E-link

Product Description

HDMI Extenders over RG6 Coaxial Cable

Model: LNK-HC100

Overview

The E-link professional AV transmission solution is a dedicated HDMI Extenders over RG6 Coaxial Cable,

designed as a paired system (transmitter + receiver) to extend HDMI and IR signals via standard 75ohm

RG-6U coaxial cables—ideal for DVRs, DVDs, CCTV cameras, home theaters, and other consumer and

professional AV setups. As HDMI Extenders over RG6 Coaxial Cable, they leverage the widely deployed

RG6 coax infrastructure to deliver reliable signal transmission, eliminating the limitations of traditional HDMI

cables.

This HDMI Extenders over RG6 Coaxial Cable system enables simultaneous transmission of HDMI and IR

signals over a single 75ohm RG-6U coaxial cable, with a maximum stable transmission distance of up to 100

meters (328 feet). It supports HDMI 1.2 and 1.3 standards, compatible with advanced features such as Deep

Color (up to 12-bit) and full HD 1080p resolution—ensuring no loss of image clarity, color accuracy, or signal

integrity, which is critical for home theater entertainment, CCTV monitoring, and DVD playback scenarios.

A key advantage of HDMI Extenders over RG6 Coaxial Cable is their cost-effectiveness and practicality:

compared to heavy, expensive copper HDMI cables (which suffer from signal degradation over long distances),

and more complex optical fiber cables (which require specialized installation), RG-6U coaxial cables are widely

available, lightweight, and easy to route—greatly reducing deployment costs and installation difficulty. The system

also integrates IR signal pass-through, allowing users to remotely control HDMI source devices (e.g., set-top boxes,

DVD players, or gaming consoles) from the receiver end, enhancing operational convenience.

In terms of setup, the HDMI Extenders over RG6 Coaxial Cable system follows a straightforward workflow:

connect the HDMI source (set-top box, DVD player, etc.) to the transmitter unit via an HDMI cable; link the

transmitter and receiver using a single 75ohm RG-6U coaxial cable; connect the receiver to the HDTV or

display via another HDMI cable; and power both the transmitter and receiver using the included dedicated

power adapters. This plug-and-play design requires no software configuration or professional technical expertise,

making it accessible for both home users and small-scale commercial installations.

With its compatibility with common AV devices, 100-meter transmission range, reliance on widely available RG6

coaxial cables, and integrated IR control, HDMI Extenders over RG6 Coaxial Cable are a versatile solution for

scenarios including home theater systems (extending media player signals to large HDTVs), CCTV monitoring

networks (connecting DVRs to remote displays), and small commercial setups (DVD playback in waiting areas).

It combines reliability, cost-effectiveness, and ease of use, serving as an efficient AV signal extension solution

for both consumer and light professional applications.

Features

► HDMI Extender Over Coaxial Cable With IR Remote Control

► Send HDMI + IR signals over one 75ohm Coaxial cable up to 100M (328ft) away

► Compliant with HDMI 1.3, HDCP 1.1standards

► Supports digital video formats in Deep Color Mode at up to 36 bits (12bits/color) and 48KHz,LPCM Digital audio

► Equalizes and recovers incoming TMDS data before re-transmitting it in high quality, regardless of the incoming signal quality

► Super IR control system, IR transport channel can be forward or backward.

Technical Indexes

Input	(TX) 1xHDMI; (RX) 1xBNC + 1x3.5mm
Output	(TX) 1xBNC + 1x3.5mm; (RX) 1xHDMI
HDMI connector	Type A 19 pin female
BNC connector	BNC Jack
3.5mm connector	(TX and RX) IR Receiver/IR Blaster
HDCP Compliance	Yes
Video Bandwidth	Single-link 225Mhz [3Gbps]
Video Support	720p/1080i/1080p @60
Audio Support	PCM (up to 7.1 ch) 48KHz
Transmission Range	HD [1080p 36-bit color] – up to 100m [328ft]
Coaxial Cable	RG6
Maximum Input Cable Length	24AWG (15m), 26AWG (10m), 28AWG (5m)
Maximum Output Cable Length	24AWG (15m), 26AWG (10m), 28AWG (5m)
HDMI Equalization	Auto
Input TMDS Signal	3.3 volts
Input DDC Signal	5.0 volts/P-P
Power Supply	1A@5VDC (2 adapters) (2.1mm plug)
Power consumption	2 watts
ESD Protection (Human Body Model)	±8kV (air-gap discharge), ±4kV (contact discharge)
PCB stack-up	4 layouts
Housing	Metal enclosure
Operating Temperature	32º~104º F (0º~40º C)
Operating Humidity	20~90% RH (no condensation)
Dimensions	80 x 41 x 25 mm
Weight	150g

Ordering Information

Model	Description
LNK-HC100	HDMI Extenders over Single RG6 Coaxial Cable up to 100m/328ft Support IR Remote Control

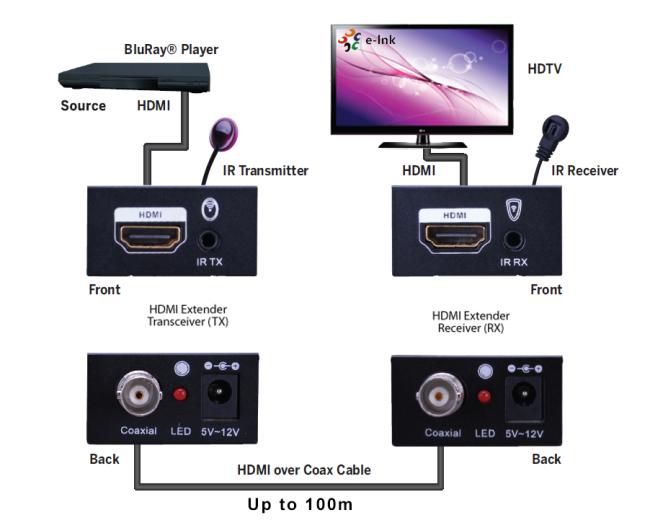

Application
