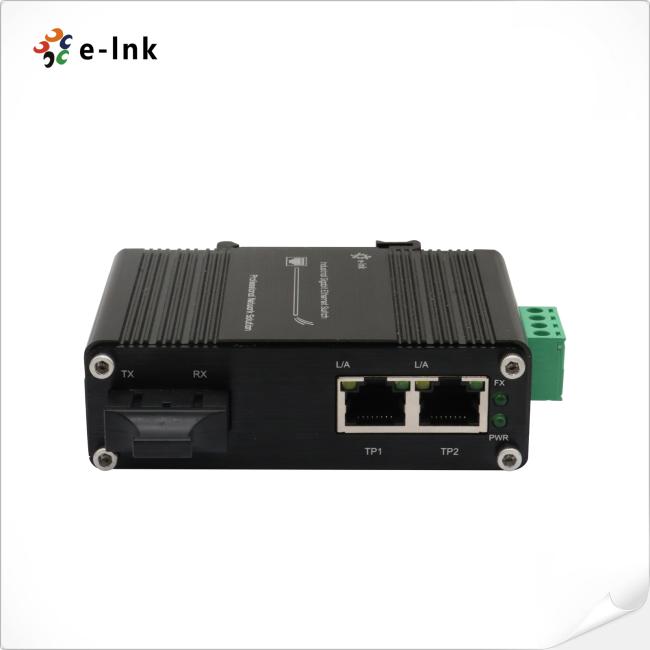

12V-48V DC Input Single Industrial Fiber Media Converter SC RJ45 10M/100M
Fiber Media Converter Mini Industrial 1xSC + 2xRJ45 10/100M 12~48VDC Input
Fiber Media Converter Advantages
- 2-Port 10/100BASE-T RJ45 with auto MDI/MDI-X function
- 1-Port 100Base-FX SC
- Supports Full/Half-duplex, Auto-negotiation
- IEEE 802.3az Energy Efficient Ethernet (EEE)
- 12~48VDC Terminal Block Power Input
- Supports DIN-Rail & Wall-mount installation
- Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature
Specifications
|
Interface |
|
|---|---|
|
Connector: |
2 x RJ45 |
|
Optical Port: |
1 x SC 100Base-FX |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48VDC, 2-pin terminal block |
|
Power Consumption: |
5W Max. |
|
LED Indicators: |
|
|
PWR: |
Power Status |
|
L/A: |
Data LINK Status |
|
SPD: |
Ethernet Status |
|
100M/1000M: |
Fiber LINK Status |
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|
Weight: |
0.25Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 75°C (-40°F to 167°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
Overview
The LNK-IMC1200 Series provides media conversion between 2-Port 10/100BASE-T and 1-Port 100BASE-FX Fiber. It’s a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions, easy to mount on a DIN rail or in distribution boxes.
Order Information
| Model | Description |
| LNK-IMC1200 | Mini Industrial Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T, SC Fiber Port, Multimode, 1310nm, 2km |
| LNK-IMC1200-20 | Mini Industrial Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T, SC Fiber Port, Single Mode, 1310nm, 20km |
| LNK-IMC1200-S20 | Mini Industrial Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T, SC Fiber Port, Single Mode, Single Fiber, 1310/1550nm, 20km |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
