10/100/1000M Fiber Media Converter Ethernet Switch 4-TX + 3-FX SFP Port
Ethernet Switch 10/100/1000M Media Converter 4-TX + 3-FX(SFP) Port Fiber Switch
Ethernet Switch Advantages:
Complies with IEEE802.3,IEEE802.3u,IEEE802.3ab standards;
4 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
and 3 SFP independent expansion slots supporting Mini GBIC module;
Supports Web Smart and console managements ;
Support IEEE802.3x flow control for half/full-duplex;
Store and forward, integrated 8K MAC address table;
Supports Port-Based /Tag VLAN Configuration;
Technical Indexes
| Parameter | Specifications |
| Standards | IEEE802.3, 802.3u, 802.3ab, 802.3x |
| Basic Function |
Wire-speed Performance MAC Address Auto-Learning and Auto-aging IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode |
| Backbound Bandwidth | 14Gbps |
| MAC Address Table | 8k |
| Forwarding Rate |
10BASE-T: 14880pps/port 100BASE-TX: 148800pps/port 1000BASE-T: 1488000pps/port |
| Transmission Method | Store-and-Forward |
| Network Media |
10Base-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ù STP (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ù STP (maximum 100m) 1000Base-T: UTP category 5, 5e cable (maximum 100m) |
| LED Indicators | Power, Link/Act, Speed |
| Dimensions (W*D*H) | 250mm × 150mm × 44mm |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Input Consumption |
Power: 100-240VAC 50-60Hz Max:13W |

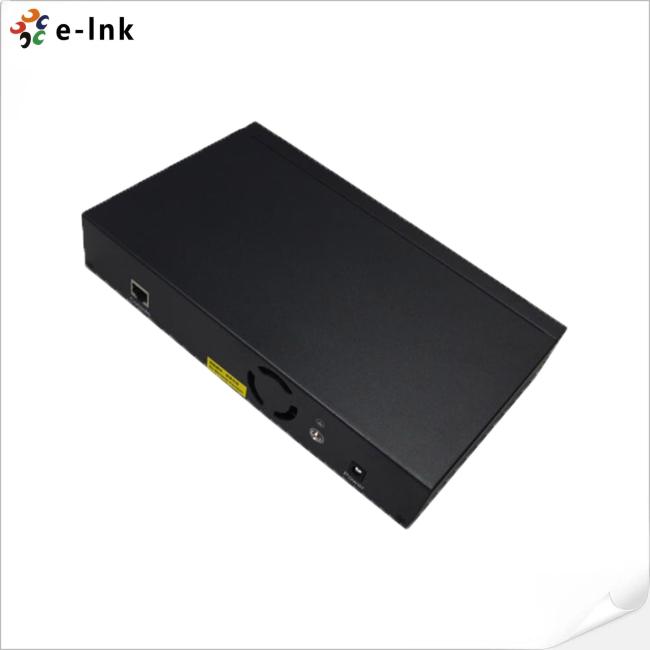

The LNK-3400 Series Gigabit Web Smart Switch fully complies with IEEE 802.3/802.3u/802.3ab Ethernet standards.
It provides 4 10/100/1000Mbps Auto-Negotiation RJ45 ports and 3 SFP independence expansion slots supporting Mini GBIC.
It also provides Web-based management functions including the system, port network, VLAN, Trunk, Priority and security etc.
Its standard 11-inch rack-mountable steel case and intelligent management makes it is suitable for small, middle and large networks.
Ordering Information
| Item | Description |
| LNK-3400SFP | 4-Port 10/100/1000T + 3-Port 1000X SFP Managed Switch |
