3G SDI Fiber Converter 1Ch Bidirectional RS485 RS232 + 1Ch Stereo Audio
Price:
$25-369
MOQ:
1 unit
Delivery Time:
5-10 working days
Brand:
E-link
Product Description

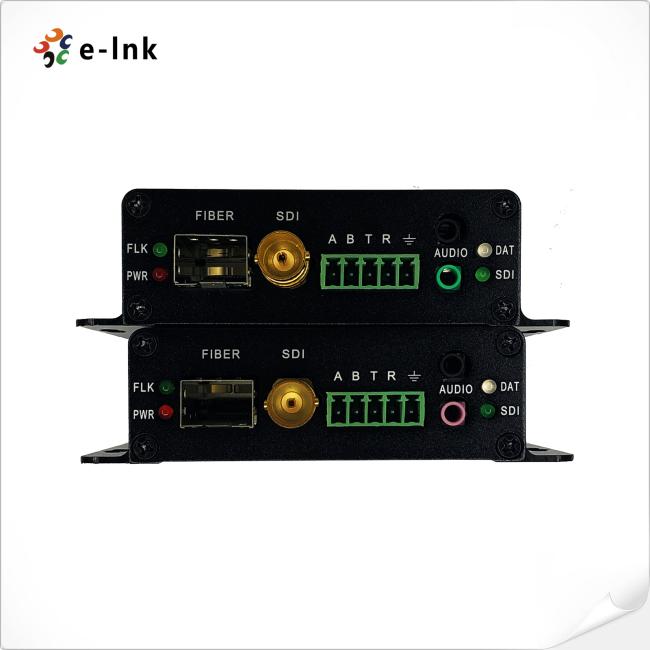

3G-SDI Fiber Converter with 1Ch Bidirectional RS485 RS232 + 1Ch Stereo Audio
SDI Fiber Converter Advantages
- 1Ch 3G-SDI Video Input and Output
- Support external stereo audio transmission
- 1Ch Bidirectional RS485 + 1Ch Bidirectional RS232
- Automatic re-clocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s
- Support HDTV 720P, 1080I, 1080P, 1920*1080@60Hz
Overview

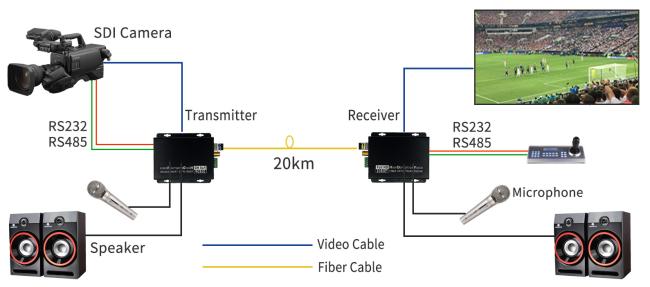

LNK-3GSDI-1V2BD1A Series 3G/HD-SDI Fiber Converter supports 1-channel 3G/HD-SDI Video (audio embedded), 1-channel Bidirectional RS485 data, 1-channel Bidirectional RS232 data, and 1-channel external stereo audio signal transmitted via fiber optical cable.
Order Information
| Model | Description |
| LNK-3GSDI-1V2BD1A-MM-0.5 | 1Ch 3G-SDI+1Ch Bidirectional RS485+1Ch Bidirectional RS232+1Ch Stereo Audio over Fiber Converter, Multi mode Fiber, LC, 500m, including Transmitter and Receiver, used by pairs |
| LNK-3GSDI-1V2BD1A-SM-20 | 1Ch 3G-SDI+1Ch Bidirectional RS485+1Ch Bidirectional RS232+1Ch Stereo Audio over Fiber Converter, Single Mode Fiber, LC, 20km, including Transmitter and Receiver, used by pairs |
Specifications
| Fiber Optical interface | |
| Fiber interface | Simplex LC |
| Transmission distance | 550m-20Km |
| Wavelength | 1310nm/1550nm |
| Video | |
| Video interface | BNC |
| Video input/output impedance | 75Ω |
| Video input/output voltage | Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp |
| Video Bits Rate | Max 3.2Gb/s |
| Differential gain (10%～90% APL) | <1% |
| SDI format support | 625/25 PAL |
| 525/29.97 NTSC, 525/23.98 NTSC | |
| 720p50, 720p59.94 | |
| 1080i 23/24/30/50/59.94 | |
| 1080P 23.98/24/30/50/60 | |
| Video SDI standard | 270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI) |
| SMPTE425M3Gb/s Mapping(3G-SDI) | |
| SMPTE424M 3Gb/s serial interface(3G-SDI) | |
| Data | |
| Physical interface | Industrial standard screw terminal |
| Data type | RS422/RS485 Bi-Direction |
| Frequency/Rate support |
Max. 115200bps for RS422 Max. 57600bps for RS485 |
| BER | <10ˉ9 |
| Audio | |
| Audio input and output | 3.5MM Audio |
| Audio format | @48KHz |
| Electrical | |
| Power adaptor | DC 5~25V |
| Power consumption | <5W |
| LED Indicator | |
| P/S | Power Supply |
| DAT | Data |
| Mechanical | |
| Dimensions (LxWxH) | 120 x 105 x 28 mm |
| Weight | 1.5KG/pair |
| Casing | Aluminum Case |
| Mounting Options | Wall-mount |
| Environmental | |
| Working Temperature | -20℃～+70℃ |
| Storage Temperature | -40℃～+80℃ |
| Working Humidity | 0~95% |
| MTBF | ≥100000 hours |
