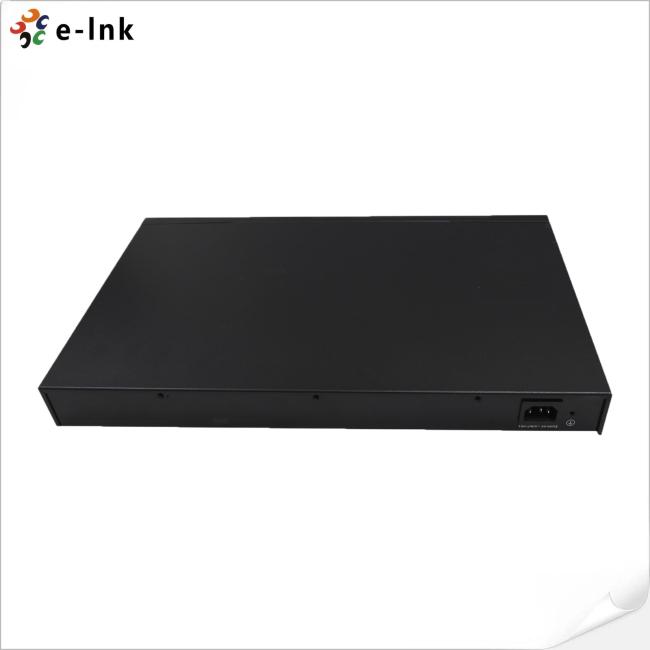

12-Port 10G SFP + 8-Port 10/100/1000M RJ45 Managed Ethernet Fiber Switch
Ethernet Switch 12-Port 10G SFP + 8-Port 10/100/1000M RJ45 Managed Fiber Switch
Enterprise Managed Fiber Switch Advantages
► With 258Gbps backplane bandwidth, the industry the highest performance (1U TOR);Support SFP hot plug
► Hardware routing, wire speed packet rate reached 192Mpps, L2 / L3 forward full speed;
► Able to be deployed in the Metropolitan Area Network and provide several last kilometer technology
Technical Indexes
|
Fixed port |
12 10G SFP+ optical ports + 8 10/100/1000M RJ45 copper ports |
|
Jumbo frames |
12k bytes |
|
Transfer mode |
Support store-forward mode and cut-through mode |
|
IPv4/IPv6 route |
512/256 |
|
Storm Control |
Broadcast suppression Multicast suppression DLF suppression Limiting rate |
|
Port management |
General setting Port counting Config port Port trunk Port-isolation |
|
System management |
Support SNMP v1/v2 Support Console Support TELNET Support WEB |
|
Indicator light |
Power indicator, system, connection/sending and receiving instructions |
Overview
LNK-XS1208 Series 10Gigabit Data Center Switch is layer 2 non-blocking switch with Broadcom chip. Providing 258Gbps switching capacity and 192Mpps forwarding performance, L2 / L3 full wire-speed forwarding. Its flexible networking capability ensures the stability of the network and the balance of the load link. With the modular design, it provides 12 10G SFP+ optical ports, 8 10/100/1000M RJ45 electrical ports, 1 Console port, 1 OOB management port, which offer enough bandwidth for data aggregation and data exchange. And in order to flexibly respond to the network requirements, users can select appropriate 10G ports according to their needs. With high bandwidth and low latency, pipe network.
Ordering Information
|
Model |
Description |
|
LNK-XS1208 |
12 10G SFP+ Fiber ports + 8 10/100/1000M Copper RJ45 ports Managed Ethernet Fiber Switch |
