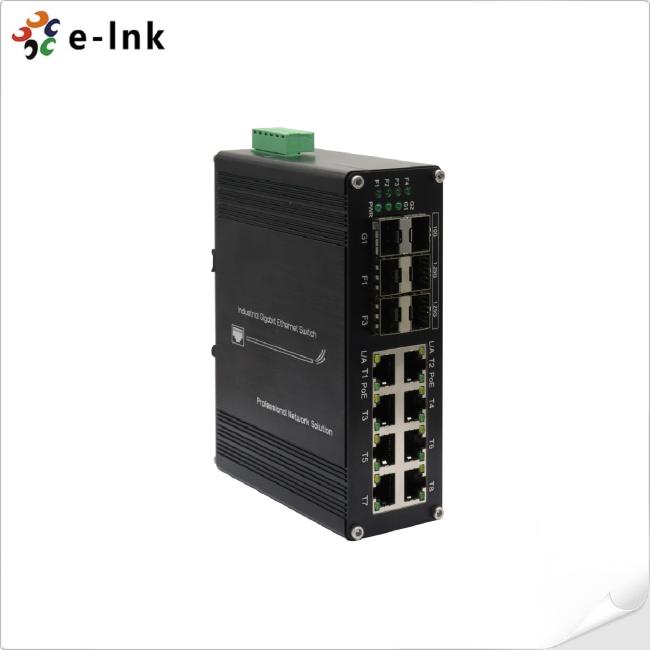

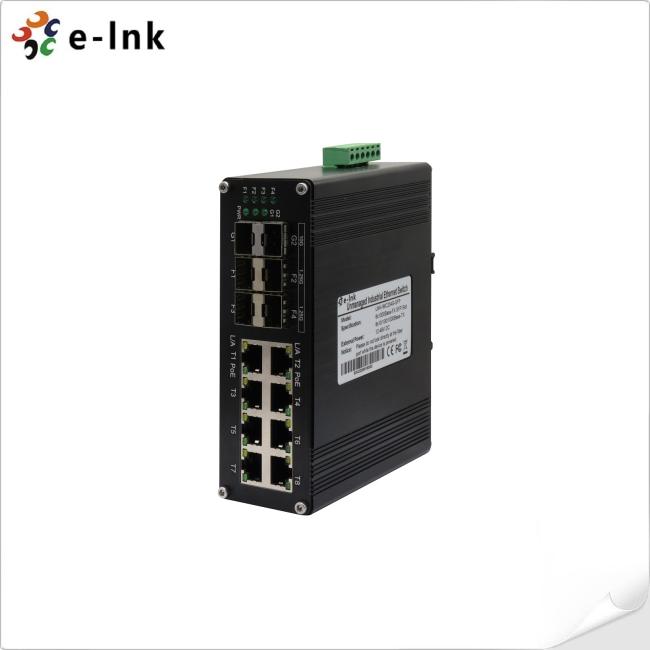

Aluminum Case Industrial PoE Switch 8 Port Gigabit 802.3at RJ45 6 Port 1000X SFP Fiber
PoE Switch Industrial 8-Port Gigabit 802.3at RJ45 + 6-Port 1000X SFP Fiber
Power Over Ethernet Switch Advantages
► IEEE802.3af/at compliant
► Supports 802.3x Flow control
► 9K Bytes Jumbo Frame
► Redundant Power Inputs
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Supports DIN-Rail installation
Technical Indexes
|
Connector: |
8 x RJ45 |
|
Optical Port: |
6 x 1000Base-X SFP |
|
PoE Standard: |
IEEE 802.3at Power over Ethernet Plus |
|
IEEE 802.3af Power over Ethernet |
|
|
Power Pin Assignment |
4/5(+), 7/8(-) |
|
PoE Budget: |
Up to 240-watt PoE budget |
|
Input Power: |
48~57VDC, Redundant Power (6-pin Terminal Block) |
|
Power Consumption: |
8W Max.(PoE in Use<240W) |
|
Protection: |
|
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
LED Indicators: |
|
|
Power: |
Power Status |
|
Ethernet(Per Port): |
Link/Activity |
|
PoE (Optional) |
PoE Status |
|
Fiber: |
Gigabit SFP Port: F1~F6 |
Overview
LNK-IMC608GP-SFP Series is 8-port 10/100/1000Base-T 802.3at PoE + 6-port 1000Base-X SFP hardened Ethernet switch. The Switch has 8 TP ports and 6 fiber ports. TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 1000Base-X supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Ordering Information
|
Model |
Description |
|
LNK-IMC608GP-SFP |
Industrial 8-Port 10/100/1000T 802.3at PoE + 6-Port 1000X SFP Ethernet Switch |
|
SFP Options |
SFP option. Please select your SFP on our SFP Options Page SFP module is to be purchased separately. |
|
Power Options |
► DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
