P860 Series Nitrogen /Oxygen Analyzer

Introduction

P860 series analyzer is the online intelligent measurement instrument, which adopting advanced ion current oxygen sensor with single chip technology. N₂%=100%-O₂%. It has been widely used in the fields of nitrogen separation from air, fertilizer, petrochemicals and biological fermentation.

Features

• New pattern long-life conversion ion current tester with fast response and high sensitivity
• N₂ or O₂ concentration display
• Checking the sensor working state automatically and unique double-line working change mode extending the sensor’s life
• Setting alarm value freely
• High precision, automatic temperature compensation, eliminating the impact of environmental temperature

Technical Specifications

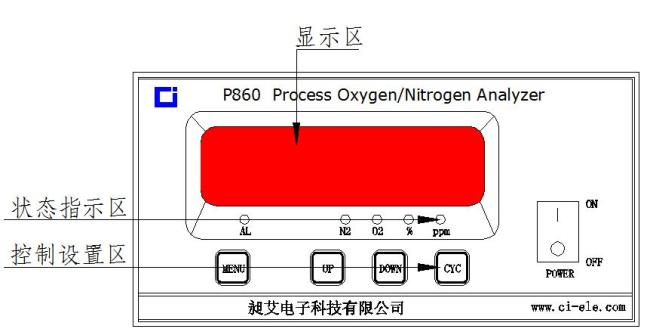

Monitor: Five-digital dynamic LED monitor, visible display window: 90mm×25mm

Measure Range: 10ppm~21%, 100ppm~21%, 1000ppm~21% O₂

Measure Mode: Air in-flowing or convection diffusing

Sample Gas Flow: 150～300ml/mim

Accuracy: ±2% F.S

Response Time: 90% of FS reading ≤20 seconds

Ambient Temp.: -10℃~+50℃

Ambient Humidity: <80％RH

Stability: <±1%.FS (168h)

Signal Output: 4~20mA

Power Supply: 220±10% VAC, 50/60Hz, the power loss ≤6VA

Sensor Life: 20000 hours at 25℃ and 1 atm

Warranty: 12 months analyzer; 12 months sensor

Weight: 1kg

Appearance Dimension: 160mm×80mm×176mm (W×H×D)

Opening Size: 151mm×75mm

Order knowledge

Measure range

Tested gas pressure

Gas composition and impurity
