Fashionable Wall Mounted Air Conditioner Series 24000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp70CH
Price:
280
MOQ:
100
Delivery Time:
Negotiable
Product Description

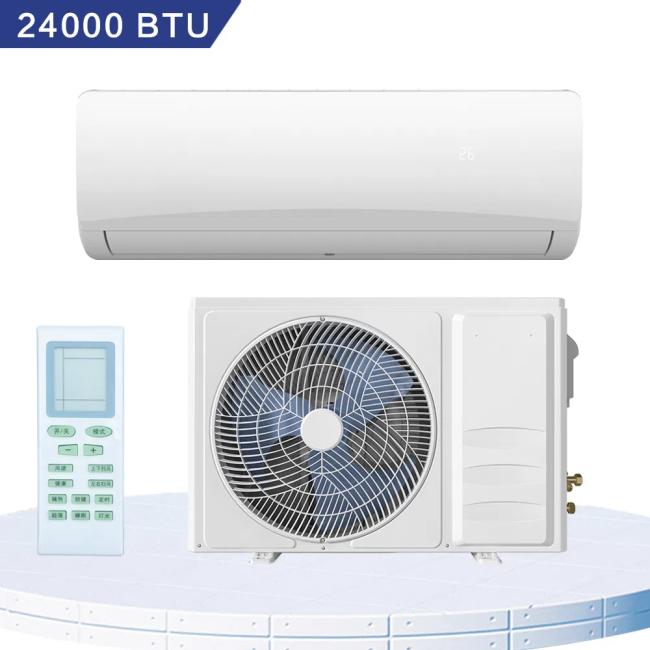

Fashionable Wall Mounted Air Conditioner Series 24000BTU Low-Power Operation INERTER Frequency Air Conditioner SP/J-BP70CH
Product Description
| DC INVERTER | SP/J-BP26CH | SP/J-BP35CH | SP/J-BP50CH | SP/J-BP70CH | ||
| Rated Power supply | 1Ph / 220-240V/50Hz | 1Ph / 220-240V/50Hz | 1Ph / 220-240V/50Hz | 1Ph / 220-240V/50Hz | ||
| Workable Power supply | 1Ph / 150-260V/50Hz | 1Ph / 150-260V/50Hz | 1Ph / 160-260V/50Hz | 1Ph / 160-260V/50Hz | ||
| Cooling | Capacity (btu/h) | 9000 | 12000 | 18000 | 24000 | |
| Capacity (W) | 2500(150~3000)W | 3200(150~3500)W | 4800(1250-5910) | 6810(1830~7800) | ||
| Input (W) | 900(100~1200)W | 1280(75~1560)W | 1780(330-2340) | 2350(410~2830) | ||
| Rated current (A) | 4.0 (0.8~5.3)A | 5.7(0.5~6.9)A | 7.9(1.7~12.0) | 10.5(2.3~12.3) | ||
| EER | 2.78 | 2.50 | 2.70 | 2.90 | ||
| Heating | Capacity (btu/h) | 9000 | 12000 | 18000 | 24000 | |
| Capacity (W) | 2800(150~3300)W | 3300(150~3700)W | 4800(1250-6070) | 6870(1850~7900) | ||
| Input (W) | 960(75~1260)W | 1260(75~1580)W | 1670(340-2520) | 2240(420~3000) | ||
| Rated current (A) | 4.3(0.5~5.6) | 5.6(0.5~7.0)A | 7.5(1.7~13.0) | 10.0(2.3~13.5) | ||
| COP | 2.92 | 2.62 | 2.87 | 3.07 | ||
| Max. input consumption (W) | 1600 | 1720 | 2520 | 3100 | ||
| Max. current (A) | 8.50 | 9.00 | 13.00 | 14.80 | ||
| Compressor | Type | Rotary | Rotary | Rotary | Rotary | |
| Brand | GMCC,GREE | GMCC | GMCC | GMCC | ||
| Indoor unit | Indoor Coil | Fin material | Golden& hydrophilic& | Golden& hydrophilic& | Golden& hydrophilic& | Golden& hydrophilic& |
| Tube outside dia.and material | φ7mm, Inner Grooved | φ7mm, Inner Grooved | φ7mm, Inner Grooved | φ7mm, Inner Grooved | ||
| Indoor air flow (Turbo/Hi/Mi/Lo) (M3/h) | 500/450/370/320 | 550/500/450/370 | 850/750/650/580 | 1050/950/800/680 | ||
| Rated input Power(cooling/heating) (W) | 30 | 30 | 35 | 45 | ||
| Rated current (cooling/heating) (A) | 0.2 | 0.2 | 0.35 | 0.4 | ||
| Moisture Removal (KG/h) | 0.8 | 0.8 | 2 | 2.6 | ||
| Noise level(Turbo/Hi/Mi/Lo) (dB(A)) | 39/34/32/30 | 42/39/36/33 | 45/42/39/37 | 49/47/45/42 | ||
| Unit dimension (W*H*D) | 695*275*190 | 780*275*190 | 910*295*205 | 1075*330*240 | ||
| Packing (W*H*D) | 763*322*241 | 847*322*241 | 975*340*255 | 1146*412*318 | ||
| Net weight (KGs) | 6 | 7 | 10 | 14 | ||
| Gross weight (KGs) | 8 | 9 | 12 | 18 | ||
| Outdoor unit | Outdoor coil | Fin material | Golden& hydrophilic& | Golden& hydrophilic& | Golden& hydrophilic& | Golden& hydrophilic& |
| Tube outside dia.and material | φ7mm, Inner Grooved | φ7mm, Inner Grooved | φ7mm, Inner Grooved | φ7mm, Inner Grooved | ||
| Noise level (dB) | 50 | 52 | 55 | 59 | ||
| Unit dimension (W*D*H) (mm) | 710*295*495 | 710*295*495 | 760*305*550 | 780*350*600 | ||
| Packing (W*D*H) (mm) | 818*328*530 | 818*328*530 | 869*339*588 | 896*387*625 | ||
| Net weight (KGs) | 20 | 21 | 24 | 30 | ||
| Gross weight (KGs) | 23 | 24 | 28 | 34 | ||
| Refrigerant type | R410A / 520g | R410A / 560g | R410A / 770g | R410A / 1070g | ||
| Refrigerant pipe | Liquid side (mm) | Φ6 | Φ6 | Φ6 | Φ6 | |
| Gas side (mm) | Φ9 | Φ9 | Φ12 | Φ15.88 | ||
| Max. refrigerant pipe length (m) | 10 | 10 | 10 | 15 | ||
| Max. difference in level (m) | 5 | 5 | 5 | 10 | ||
| Operation temperature range | -7ºC-43ºC | -7ºC-43ºC | -7ºC-43ºC | -7ºC-43ºC | ||
| Ambient temperature range | -7ºC-48ºC | -7ºC-48ºC | -7ºC-48ºC | -7ºC-48ºC | ||
| Application area (MM2) | 10~17 | 13~27 | 20~40 | 30~55 | ||
| Sets per 40ft HQ/20ft 40HQ/20 | 340/- | 334/143 | 267/- | 186/81 | ||
