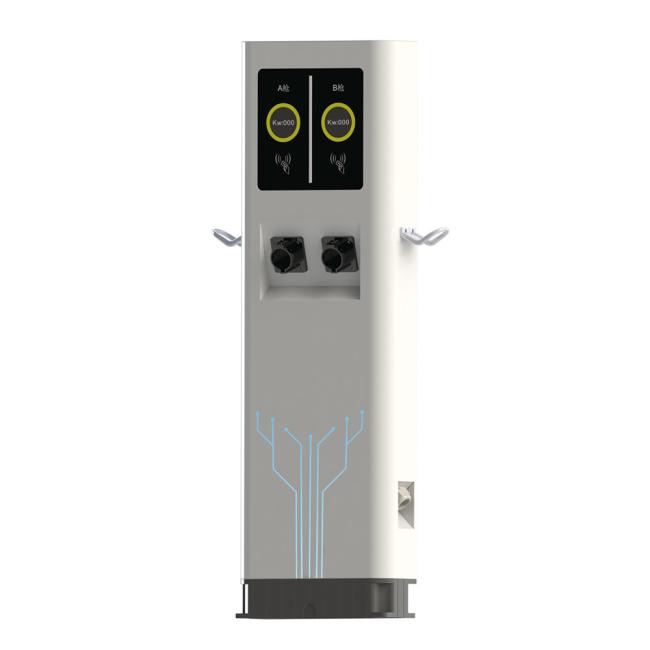

Type A USA Public Level 2 Charging Stations Points 32A MAX

Price Negotiable
Price: Negotiable
MOQ: 1
Delivery Time: 3-5 working days
Brand: Lekol
Product Description

Public EV Charging Station Solutions Electric Vehicle Charger USA Level 2 NEMA



Lekol EV Charger Factory Manufacturer OCPP Type 2 32A 3 Phase 7kw 22kw Wallbox AC Fast Electric Charging Station EV Car Charger With Wifi App Control RS485

-- Electric ev car charger with type 1 type 2 plug to charge cars.(TESLA needs a adapter.)

-- Screens show ev car charger electricity consumption, current, voltage, hours etc.

-- Managing system for adjusting current, observing charging data and history etc.

-- Build in type B RCD leakage protection: detect all leakages from cars.

-- App control start and stop ev cars charging, make appointment for charging.

-- Self adjustable power to coordinate with ev cars' obc power.

-- customize logo, language, manual, RFID card for ev chargers.





LQM3G332 Series



Feature



 APP Control

* Setting Current: you can set the current when the power grid is overload.

* Controlling Stop & Start: Control the Stop & Start by your phone, you can control it in anywhere.

* Making an Appointment of Charging: If you want the electric vehicle to be charged in night, it is a good choice that you make an appointment of the charging by APP, it is very convenient.

* Record: you can check the charging record by APP in any time.

* The best Choice for home market



Specification



Input & Output
Input Voltage
3-phase, 400V±10%
Output Current
16A/32A
Input Frequency
50/60HZ
Output Power
11kW/22kW
Charging Interface Type
IEC 62196-2/SAE J1772


Function & Accessory
Charging Control
"Plug and Play" or
"Card Control"
LED Indicator Light
Power:Red Charging:Green Fault: Red Connect:Green
LCD Screen
4.3 inch color display
RCD
Type A
Safety Protection
Surge Protection
Yes
Over Temperature
Yes
Leakage
Yes
Over/Under Voltage
Yes
Over Current
Yes
Ground Protection
Yes
Runtime Environment
Protection Degree
IP 54 (Outdoor)
Attitude
≤2000 meters
Environment Temperature
-30℃ ~ +50℃
Cooling
Natural Air Cooling
Relative humidity
0-95% non-condensing


Package
Enclosure Material
Aluminum Alloy
Dimension(W/D/H)
200/100/1400mm
Charging Adapter Cable
5 meters or Optional
Weight
<10kg



WHY US?



1. First, Lekol’s chargers Compatibility with most global Electric Vehicles charging interface. Lekol has the CE, ROHS, REACH certificate for European Market.

2. Lekol has a series of EV chargers to meet different customer’s needs. such as for home use or for commercial.

3. Lekol is the directly manufacturer, our main products are AC Wallbox, AC Integrated EV Charger, DC fast charging stations, EV connectors. There is no the middleman, you can get the best price and services. Lekol has strong R&D Capability, OEM and ODM are available.

4. How to promise the quality? First, Lekol produce the chargers in strict accordance with quality management system standard (ISO9000). Second, in the production, we will age and test the EV CHARGER 3 times; Third, through the Digital Factory, production can be traced and visualized, so as to ensure the stability of products.
