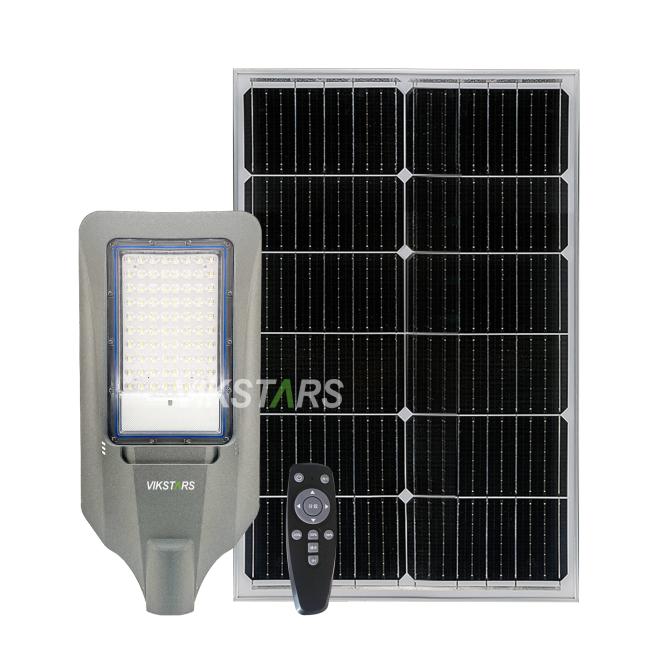

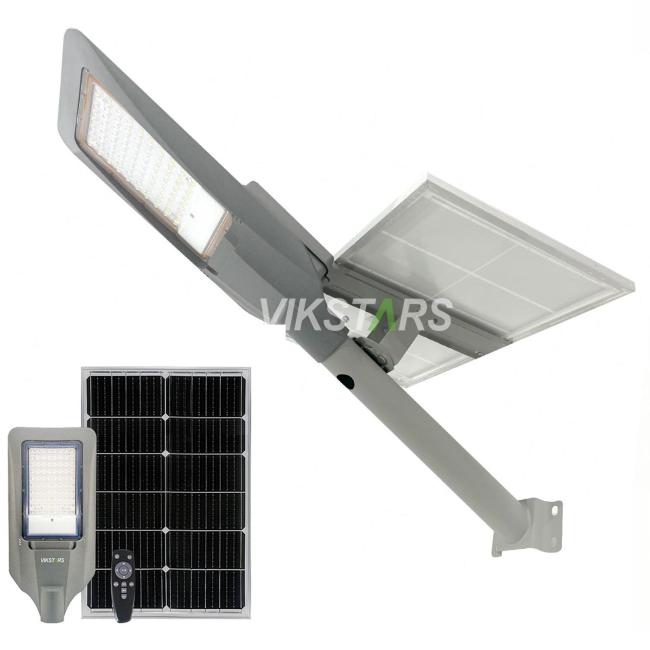

Newest Private Mold 300w 500w 600w 1000w 1600w Solar Street Lights For 10m Height IP66 waterproof
Price:
Negotiable
MOQ:
20pcs
Delivery Time:
15-25 days
Brand:
VIKSTARS
Product Description
Newest Private Mold 300w 500w 600w 1000w 1600w Solar Street Lights For 10m Height IP66 waterproof
DELIVERY
1. For small orders of this solar street light, we have small quantity with export, delivery time around 2-3 days; for large orders, production time around 10-15 days;
2. Lamp body with & without " VIKSTARS " trademark will be shipped randomly, for small order, if have requirements for this pls let us know;
3.Price based on EXW term, not including tax or freight, but we can offer Logistics and customs clearance assistance.
PARAMETERs
.
|
LAMP NAME
|
L Series - Solar Street Lights
|
||||
|
MODEL NO.
|
VS-SSL-L03
|
VS-SSL-L05
|
VS-SSL-L06
|
VS-SSL-L10
|
VS-SSL-L16
|
|
POWER
|
300W Project Solution
|
500W Project Solution
|
600W Project Solution
|
1000W Top-level Solution
|
1600W Top-level Solution
|
|
BATTERY
|
3.2V 24AH Lithium
|
3.2V 36AH Lithium
|
3.2V 60AH Lithium
|
3.2V 100AH Lithium
|
12.8V 60AH Lithium
|
|
SOLAR PANEL
|
Mono 5V 30W
|
Mono 5V 50W
|
Mono 5V 60W
|
Mono 6V 100W
|
Mono 18V 120W
|
|
LUMEN
|
1760lm
|
2880lm
|
3840lm
|
5400lm
|
10800lm
|
|
LED QTY
|
SMD5054*80PCS, 4-chip 1530
|
Brightlux SMD5050*80pcs, 4-chip 1734
|
|||
|
BEAM ANGLE
|
120°
|
||||
|
CCT
|
Cold White
|
||||
|
CHARGE TIME
|
4-6 hours
|
||||
|
LAST TIME
|
16-18 hours / 3-5 Rainy days
|
||||
|
INSTALL HEIGHT
|
4-5m
|
4-6m
|
5-7m
|
6-8m
|
8-10m
|
|
LIGHT AREA
|
100㎡
|
200㎡
|
300㎡
|
400㎡
|
800㎡
|
|
WORK MODE
|
Intelligent Light control + Time Control + Remote Control
|
||||
|
INSTALL WAY |
Pole / Wall / Hug Hoop Installation
(accessories not include hoop, need buy additionally)
|
||||
|
WATERPROOF
|
IP66
|
||||
|
MATERIAL
|
High Quality Aluminum Heat Sink + PC lens / Sand Grey
|
||||
|
LAMP SIZE
|
550*255*90mm (same size for all series)
|
||||
|
PANEL SIZE
|
530*350*17mm
|
670*445*25mm
|
670*535*25mm
|
670*915*30mm
|
670*1020*30mm
|
|
PACKING
|
Integrated Packing (Export Neutral Carton / VIKSTARS Brand / Customizing Packing)
|
Customized According to Projects
|
|||
|
WARRANTY
|
2 Years warranty
|
||||
REAL PHOTOs
SOLUTIONs
 |
 |
|
Project Solution--battery built-in
300w/500w/600w
|
Top-level Solution--external battery box |
3 Installations of Project Solution
Top-level solution installation according to project
Top-level solution installation according to project
 |
 |
 |
|

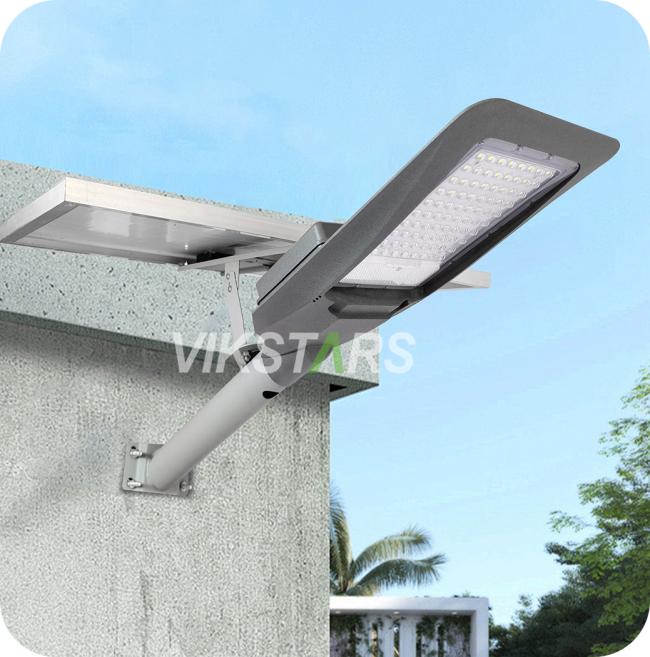

Wall Install |

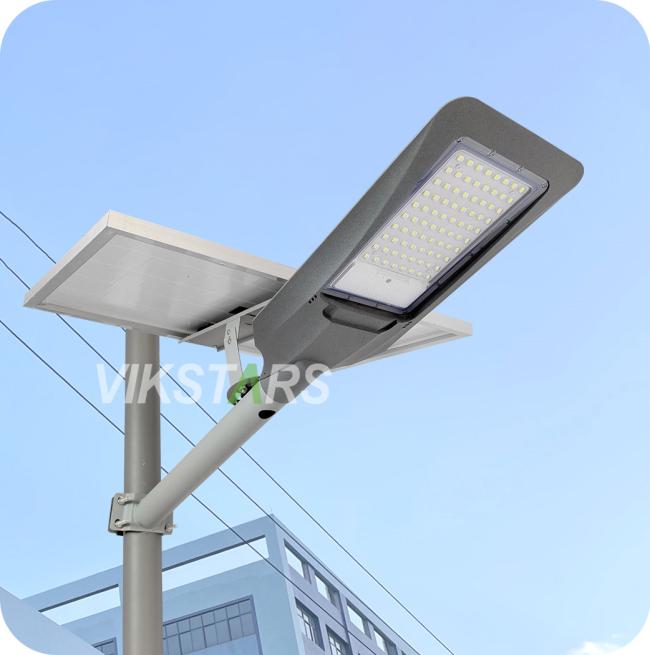

Pole Install |

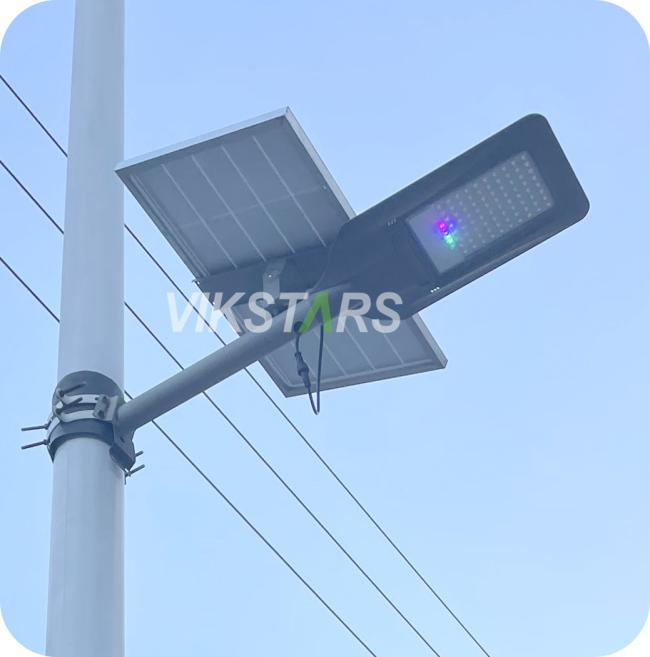

Hug Hoop Install |

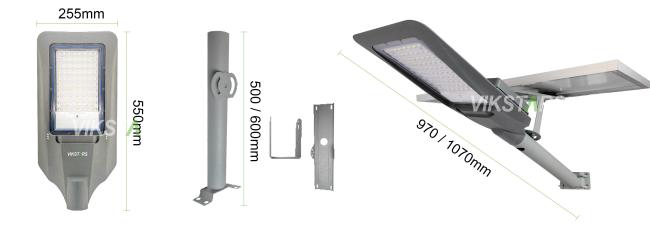

SIZEs
Manually Measured, Tolerances Is Possible
 |
||
| same size for all watts | 300w: 500mm length
500w: 600mm length
|
300w: total length 970mm
500w: total length 1070mm
|
 |
||

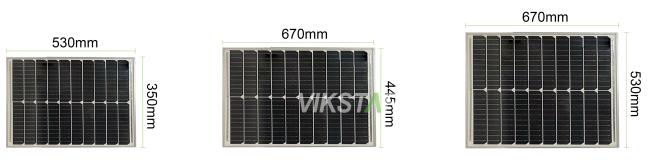

| project solution 300w | project solution 500w | project solution 600w |
 |
|

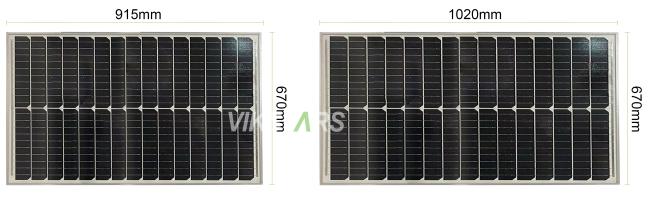

| top-level solution 1000w solar panel |
top-level solution 1600w solar panel
|

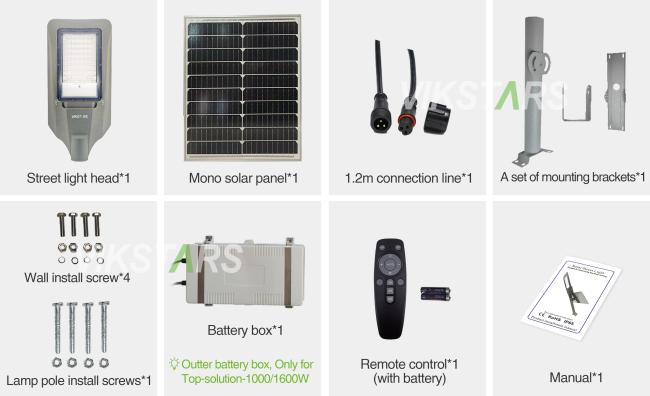

ACCESSORIEs
PACKING
|
Solution
|
Power | Carton Size | pc/ctn |
N.W.
|
Specification |
|
Project Solution
|
300W
|
610*155*435mm
|
1pc/ctn | 5.00kg |
Battery built-in the lamp body, integrated packing
|
| 500W | 720*155*495mm | 1pc/ctn | 6.50kg | ||
|
600W
|
/
|
/
|
/
|
Battery built-in the lamp body, But because of the bigger size solar panel, need customize packing
|
|
|
Top-level Solution
|
1000W
|
/
|
/ | / |
Outter battery box, larger size solar panel, need customize packing according to the project
|
| 1600W | / | / |
/
|

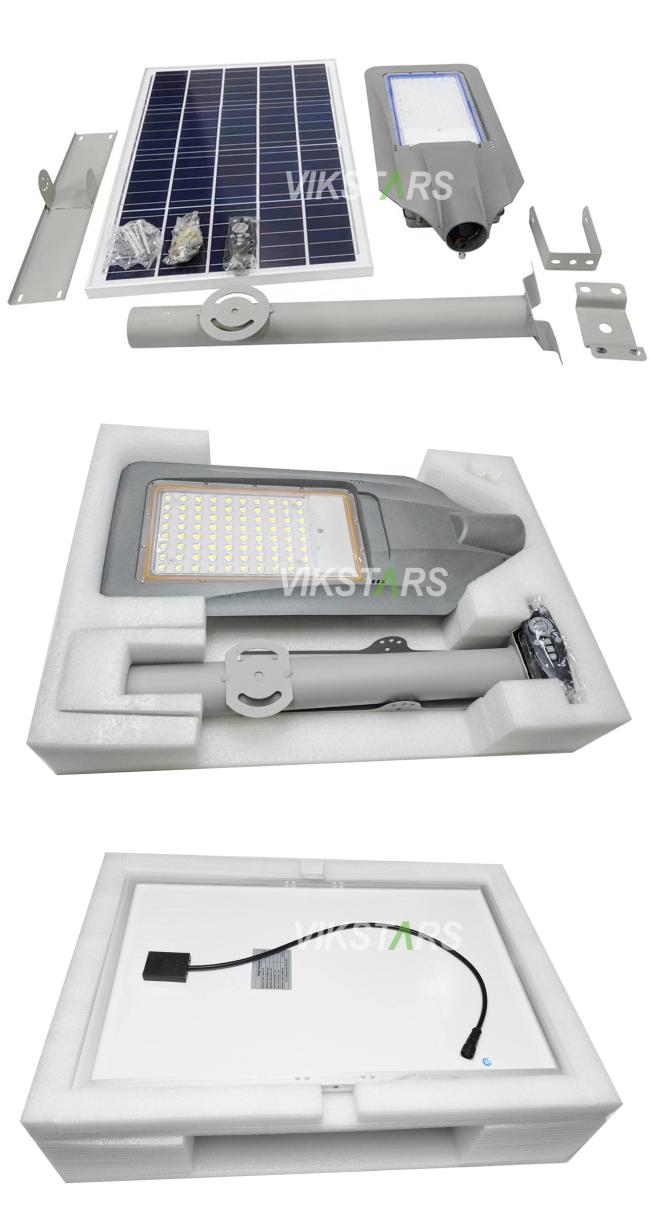

300W/500W - Integrated Packing
600W with larger size solar panel, need to customize packing

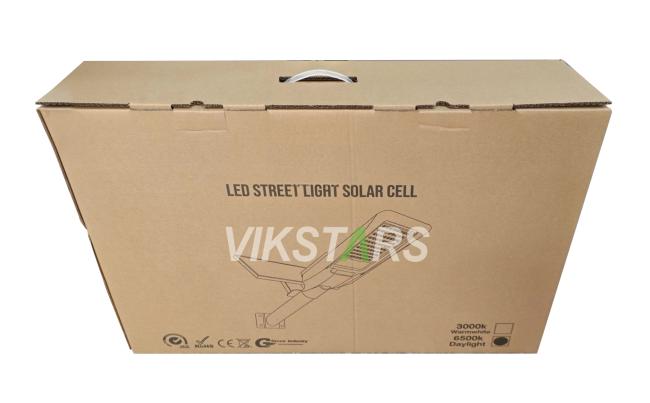

300W/500W Project Solution Carton
600W with larger size solar panel, need to customzie packing
INTELLI LIGHT CONTROL

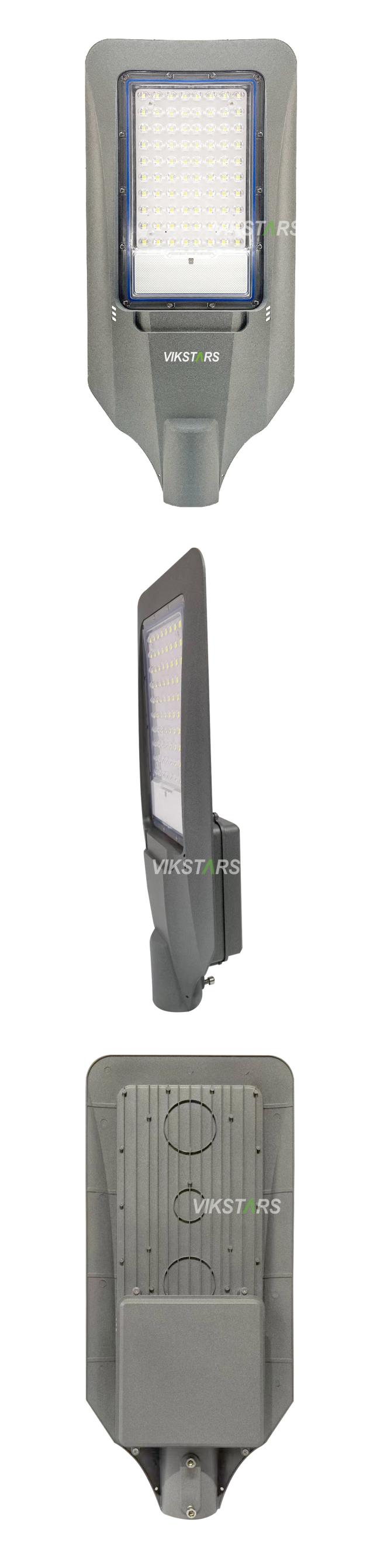

DETAILs
PROJECTs Live Photos

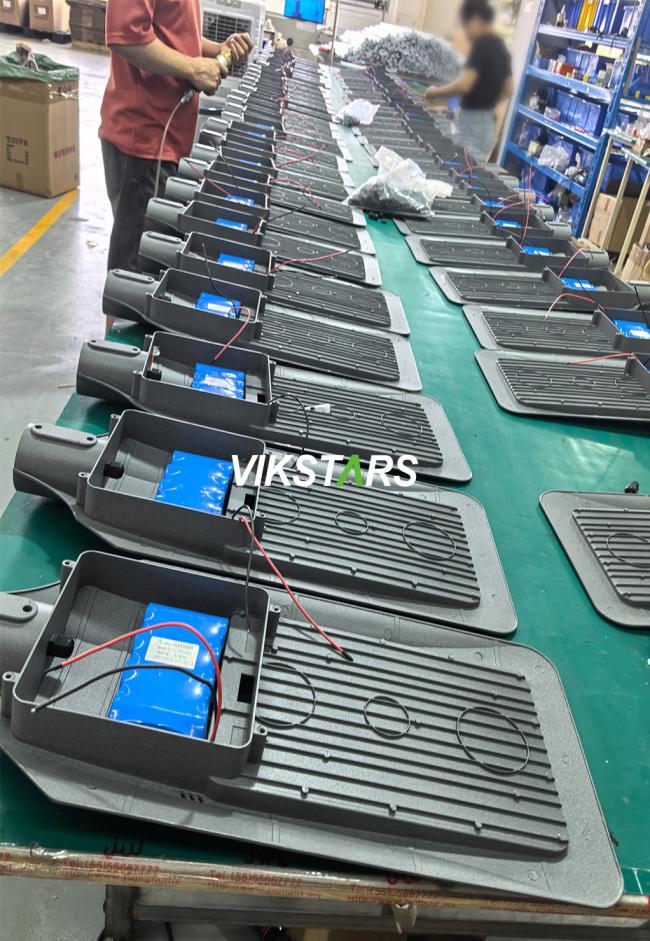

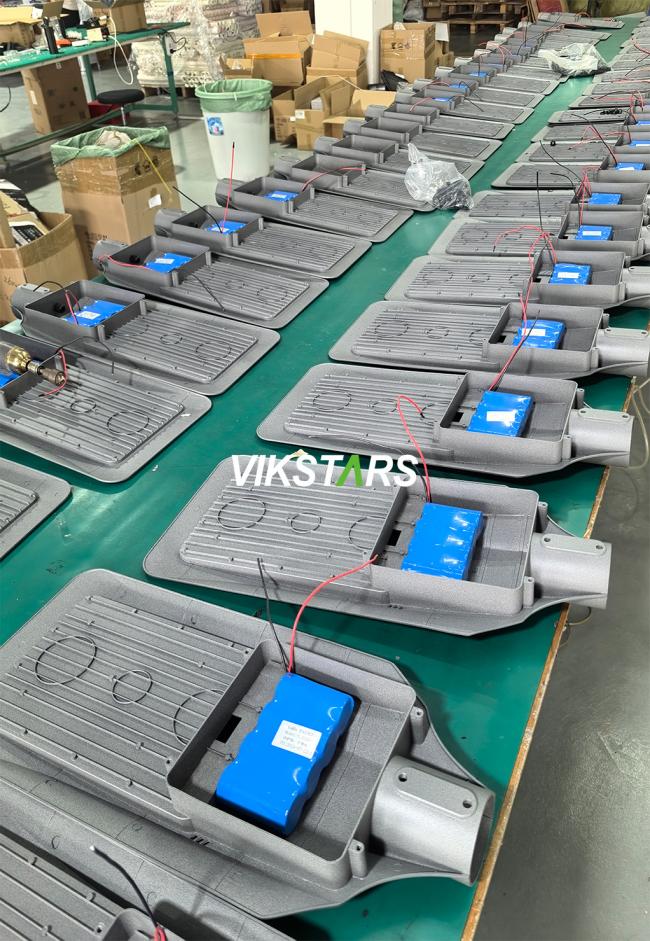

ORIGIN FACTORY
