Supermarket Industrial High Bay LED Light SMD 2835 100 Watt 120deg Angle
1. For this fin high bay, the wire between the driver and PCB, will go through the whole in the middle of the aluminum fin, to avoid the wire been aged too fast, and put on the protective tube over the wires.
2. Our fin high bay use big driver box, driver will be installed inside the driver box, totally separate from the fin, so our this fin high bay`s lifespan will be longer than that design.
| Product Name | For Supermarket Led Fin High Bay Lamp | ||
| Model No |
VS-FHB-B10
|
VS-FHB-B15
|
VS-FHB-B20
|
| Power |
100W
|
150W
|
200W
|
| LED Qty | 200 LEDs | 300 LEDs | 400 LEDs |

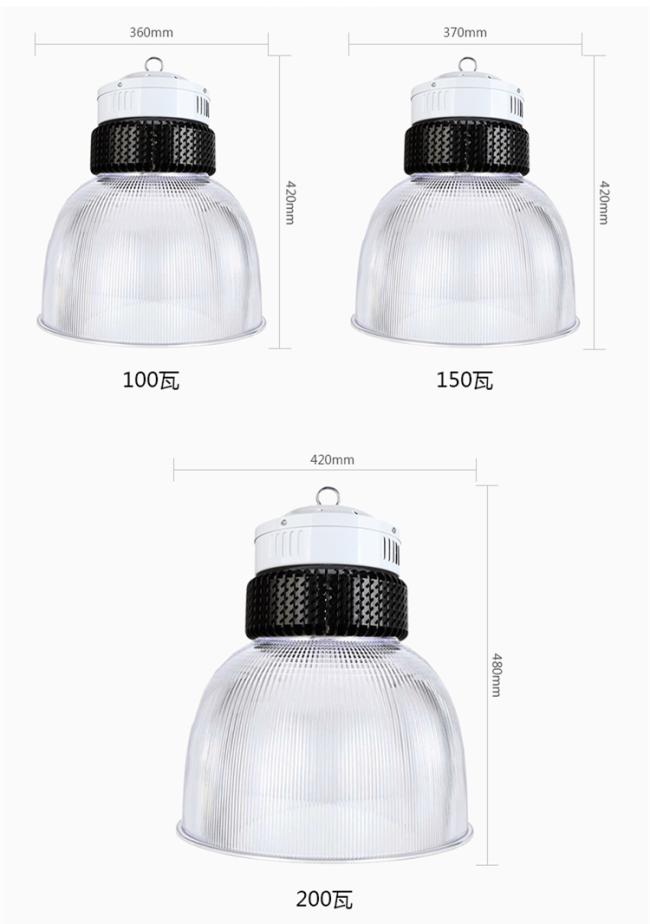

| Product Size | Φ420*H360mm | Φ420*H370mm | Φ480*H420mm |
| Gross Weight | 3.28kg | 3.72kg | 5.08kg |
| Lamp packing size | 46.5*46.5*53cm | 51.5*51.5*54cm | 54.5*54.5*59cm |
| Voltage |
AC100-265V
|
||
| LED Type |
SMD 2835/3030
|
||
| Efficiency |
90-130lm/w or higher
|
||
| C.R.I |
≥70Ra or ≥80Ra
|
||
| Light Angle |
60° / 90° /120°
|
||
| Working Temp |
-20℃ - 50℃
|
||
| IP Rating | IP40 Indoor use | ||
| Housing Color |
Black / White
|
||
| Lamp QTY/CTN |
8 PCS
|
||
| Lifespan | >50000hrs | ||
| Warranty | 2 / 3 / 5 years | ||
| Application | 4s shop / Parking lot / Factory / Gymnasium | ||
| Lamp Body Material | Fin Aluminum heat sink + PC reflector | ||
VIKSTARS CO., LIMITED
Tel/wechat: +8615302738576
E-mail: vs602@vikstars.com
Http://www.vikstars.com
Our main products include LED Fin High Bay Light, Motion Sensor UFO High Bay Light, UFO LED High Bay Light, LED Linear High Bay, LED Flood Light, LED Par Light, LED High Power Bulb, LED Radar Motion Sensor, PIR Sensor Tube, LED Linear High Bay Tube, LED Tri-proof Batten Tube, LED Tunnel Light, LED Wall Pack, and related commercial products. Our products were widely sold to USA , Europe , and south America countries, and won great reputation from our clients .
VS have our own marketing team and 500 square meters production center, own more than 20 sales-engineers,2 engineers , more than 100 workers in the production center;average annual sales amount can reach $5.00 million .
Q1. How do you ship the goods and how long does it take to arrive ?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q2. How does VS proceed an order for Supermarket Led Fin High Bay Lamp ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q3. Is it OK to print my logo on lamp ?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q4: Does VS offer guarantee for the Supermarket Led Fin High Bay Lamp?
A: Yes, we offer 2-5 years warranty to our products.
