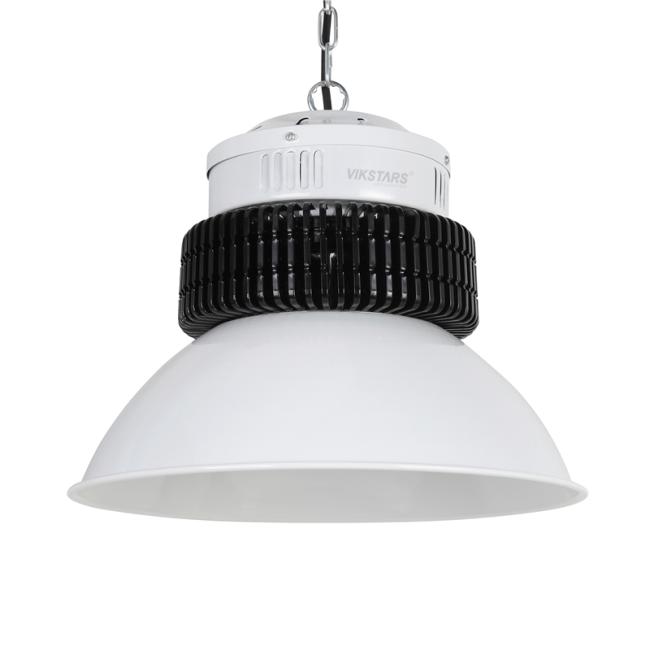

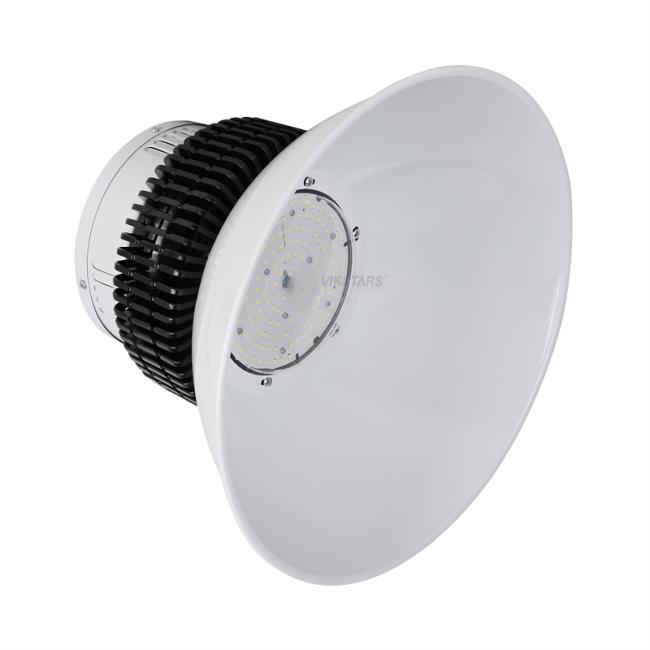

Parking Lots Lighting LED High Bay 200w IP40 White And Black Housing Color
LED High Bay 200w Parking Lots Lighting IP40 White And Black Housing Color.
Advantages:
1. Usually our this led high bay 200w, the lumen out put will reach 100 - 130 lm/w, if required, we can make 150 - 160 lm/w .
2. Strictly quality control, and 100% inspection before shipment, usually the lifespan of our this led high bay 200w can reach 35000 - 50000 hrs .
3. Usually for fin high bay, the driver box will be replaced by a driver cover, because cover is much cheaper, and driver will be fixed on the top of the fin, if by this way, the fin will transfer the heat to driver, this will greatly short the lifespan of the driver, but our fin high bay use big driver box, driver will be installed inside the driver box, totally separate from the fin, so our this fin high bay`s lifespan will be longer than that design.
Specification:
| Product Name | led high bay 200w | |||
|
Model No
|
VS-FHB-A10
|
VS-FHB-A15
|
VS-FHB-A20
|
VS-FHB-A25
|
|
Power
|
100W
|
150W
|
200W
|
250W
|
| Lumens | 10000-13000lm+ | 15000-19500lm+ | 20000-26000lm+ | 25000-32500lm+ |
| LED Qty | 120 LEDs | 180 LEDs | 240 LEDs | 300 LEDs |
| Net Weight | 2.60kg | 2.80kg | 3.90kg | 4.20kg |
| Product Size | Ф420*H360mm | Φ420*H370mm | Φ480*H420mm | Ф480*H420mm |
|
Voltage
|
AC85 - 265V
|
|||
|
LED Type
|
SMD 3030
|
|||
|
Efficiency
|
100 - 130lm / w or higher
|
|||
|
C.R.I
|
≥70Ra or ≥80 Ra
|
|||
|
Light Angle
|
60 / 90 / 120 Degree
|
|||
|
Power Factor
|
≥0.9
|
|||
|
IP Rating
|
IP40 Indoor use
|
|||
|
Color Temp
|
4000K
|
|||
|
Working Temp
|
-20℃ - 50℃
|
|||
|
Housecase Color
|
White / Black / Customize
|
|||
|
Lifespan
|
>50000hrs
|
|||
|
Warranty
|
2 / 3 / 4 / 5 years
|
|||
| Application | playgrounds ,tunnels, parking lots, public squares, gymnasium, mining, factories | |||
| Material | Fin Aluminum heat sink + reflector | |||
Miss.Lillian
VIKSTARS CO., LIMITED
Tel/wechat: +8615302738576
E-mail: vs602@vikstars.com
Http://www.vikstars.com
Our company specializing in LED lighting research and marketing, located in Shenzhen China.
Our main products include UFO LED High Bay Light, LED Flood Light, LED Wall Pack, and related commercial products. Our products were widely sold to USA , Europe , and south America countries, and won great reputation from our clients .

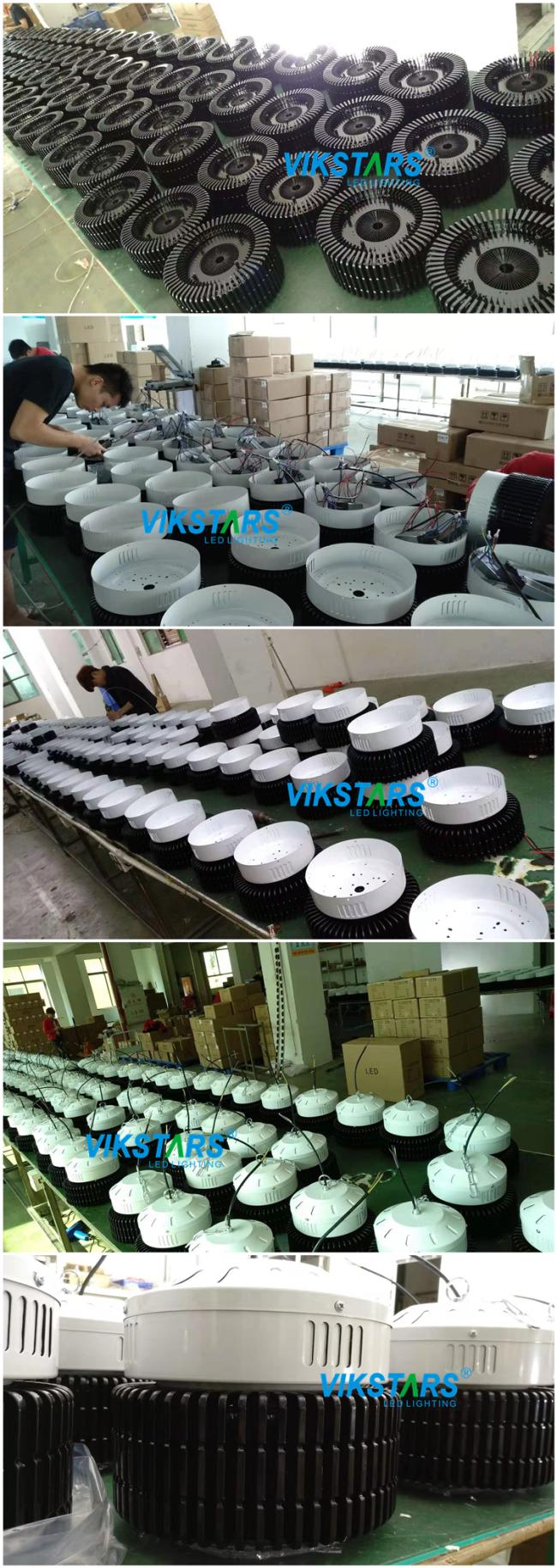

VS have our own marketing team and 500 square meters production center, own more than 20 sales-engineers,2 engineers , more than 100 workers in the production center;average annual sales amount can reach $5.00 million .
Q1. How to deal with the faulty ?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q2. How do you ship the goods and how long does it take to arrive ?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3. Is it OK to print my logo on lamp ?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q4. Does VS offer guarantee for the led high bay 200w ?
A: Yes, we offer 2-5 years warranty to our products.
