Easy Maintenance IP43 Led Stage Backdrop Screen Flexible P2.5 Indoor Led Display
Led Stage Backdrop Screen RGB LED Stage Backdrop Flexible P2.5 LED Screen For Sale
Advantages :

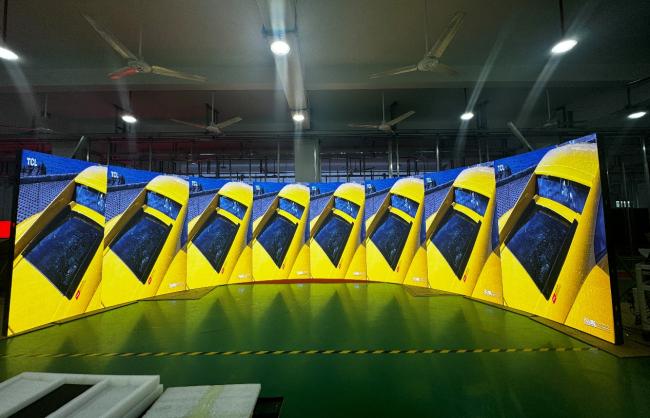

Compared with the traditional PCB material , the flexible panel has high compressive and distortion resistance ,
which can better solve the problems of " beating around the bush , corner by corner " installation difficulties .
LED flexible module installation mode is mainly magnetic column suction, installation is convenient and quick ,
but also easy to shape , and box connection line is fast to joint connection , firm and reliable, for you to save the
" prehistory force " . Compared with regular size group, it saves more time and is easier to install.
Technical parameters :
|
P2.5 Flexible Video LED Display Screen |
||||||||
|
S/N |
Item |
Technical Parameters |
||||||
|
LED Parameters |
||||||||
|
1 |
Item Name |
LED Type |
Brightness |
Wave Length |
H/V Visual Angle |
|||
|
2 |
Red LED |
SMD1515 |
540-702mcd |
620-625nm |
160º/160º |
|||
|
3 |
Green LED |
SMD1515 |
1200-1300mcd |
519-522nm |
160º/160º |
|||
|
4 |
Blue LED |
SMD1515 |
200-260mcd |
462-465nm |
160º/160º |
|||
|
Module Specification |
||||||||
|
1 |
Pixel Pitch |
2.5mm |
||||||
|
2 |
Pixel Configuration |
1R1G1B |
||||||
|
3 |
Module Resolution |
128 x 64 pixels |
||||||
|
4 |
Module Pixles |
8192 pixels |
||||||
|
5 |
Module Size |
320mm X 160mm |
||||||
|
Cabinet Specification |
||||||||
|
1 |
Cabinet Size |
Customized |
||||||
|
6 |
Cabinet Materials |
Die Casting Aluminum Cabinet for Rental Purpose |
||||||
|
8 |
Packaging |
Flight case/Wooden case |
||||||
|
9 |
Fly Case Size |
105*65*65CM ( one case for six cabinets )/ 85kg |
||||||
|
Whole Screen Specification |
||||||||
|
1 |
Screen Brightness |
600-800cd/m² |
||||||
|
3 |
Best Viewing Distance |
2.5m - 40m |
||||||
|
4 |
Max. Power Consumption |
358W/m² |
||||||
|
5 |
Average Power Consumption |
146W/m² |
||||||
|
6 |
Gray Level |
65536 levels ( 16 bit ) |
||||||
|
9 |
Refresh Frequency |
3840Hz |
||||||
|
11 |
Screen Life-span |
≥100,000 hours |
||||||
|
12 |
MTBF |
≥5,000 hours |
||||||
|
17 |
Screen Plainness |
<±1mm |
||||||
|
18 |
Power Supply Mode |
AC220±10% 50Hz/AC110±10% 60Hz |
||||||
|
21 |
Control System |
Linsn, Novastar or as you required. |
||||||
|
22 |
Display Content |
Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. |
||||||
FAQ :
1 : What is the warranty of your led display ?
A : We offer 2 - 3 years warranty and more than 100000 hours screen life span .
2 : What is your payment term ? How long it takes to delivery ?
A : We usually accapt the T / T or L / C , both of them will at least 30 % deposit in advance ,
and the rest of 70 % will paid before delivery . The lead time is usually 20 day .
3 : How can you ensure the led display product quality ?
A : Before shippment , all the screens have aging test and then we also have waterproof test and shake test ,
ensure products can transportation safety and normal use .
4 : What is your pre - sale and post - sale service ?
A : For pre - sale service , we have professional sales team and technical team ,
who are willing to answer your question within 24 hours .
For post - sale service , we will instruct you how to installation , how to use , how to change the broken moudles ,
and we can also send the technicals to your country , in general , our led display will not have a big problem ,
you can rest assured to buy .
Company other products :
Indoor fixed LED screen: P2.5, P3, P4, P5, P6, P8, P10
Indoor rental LED screen: P3, P3.9, P4, P4.8, P5, P6
Outdoor fixed LED screen: P5, P6, P8, P10
Outdoor rental LED screen: P3.9, P4.8, P5, P6, P6.25, P8, P10
Small pitch LED screen: P1.25 , P1.538 , P1.56 , P1.667 , P1.86 , P1.875 , P1.9 , P2
Front service maintenance LED screen: P6.67, P8, P10
Stadium perimeter LED screen: P8, P10
LED poster player: P2.5, P3, P4, P5, P6, P8, P10
