Wedding LED Video Wall Screen Display P3.91 1/ 16 Scan With Wonderful Visual Performance

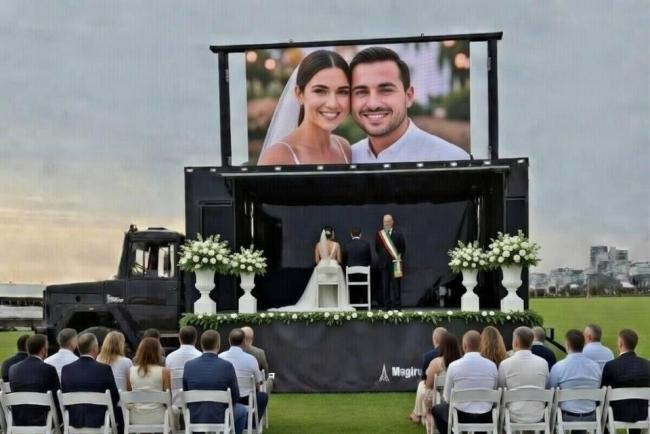

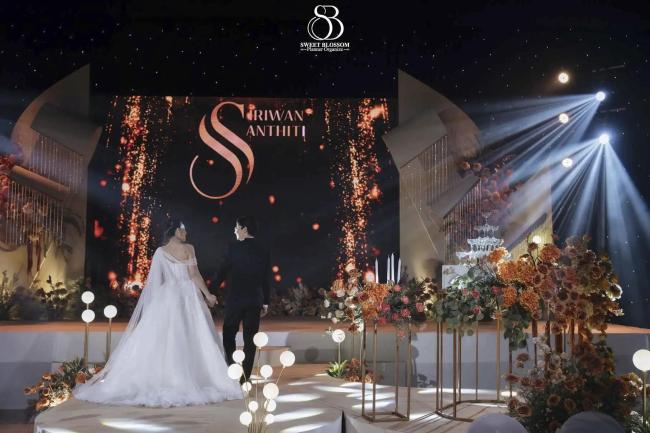

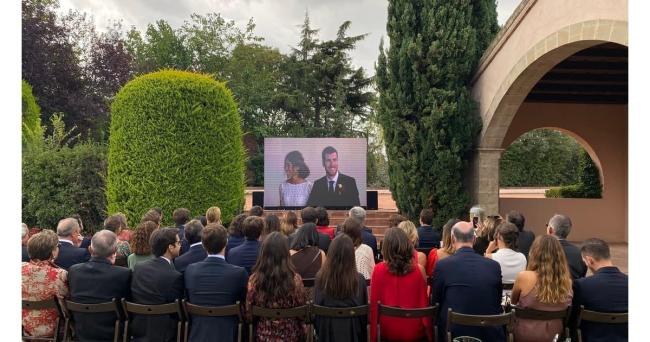

Wedding Led Screen Stage Display IP65 Outdoor Wedding Decoration P3.91
Product Introduction
Wedding led screen stage display IP65 outdoor P3.91 has high definition and high resolution
with wonderful visual performance ; ensures the spectators far from the screen can still
enjoy what is shown and guarantee superior performance even with small screen size .
Technical parameters
| Module Specification | ||
| Pixel Pitch | 3.91mm | |
| Pixel Configuration | 1R1G1B | |
| Module Resolution | 64 x 64 pixels | |
| Module Pixles | 4096 pixels | |
| Module Size | 250mm X 250mm | |
| LED Type | SMD1921 | |
| Cabinet Specification | ||

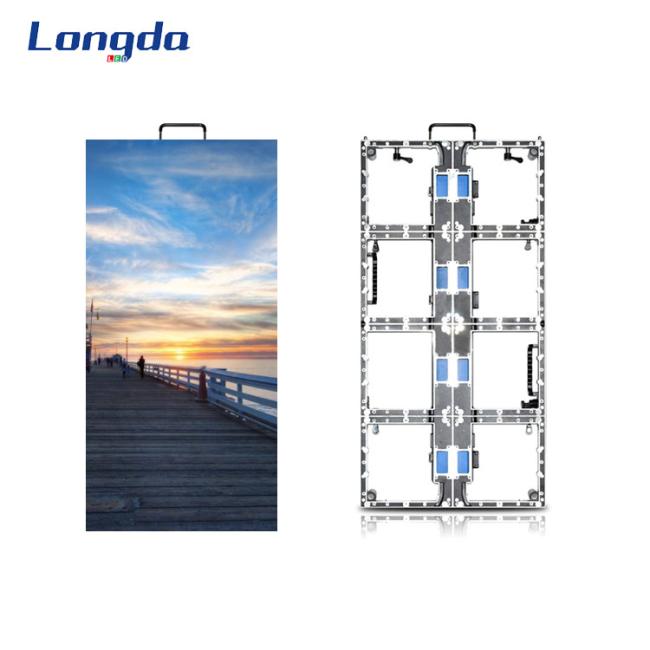

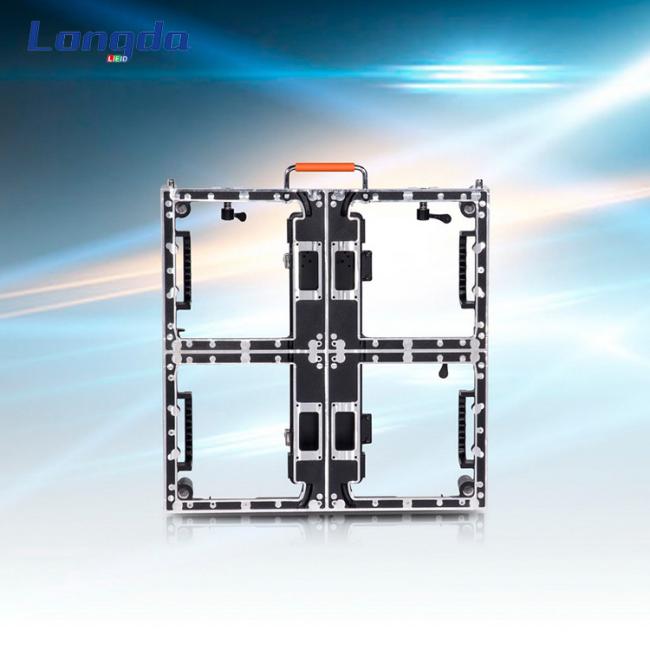

| Cabinet Size(W X H ) | 500mm*1000mm | 500*500mm |
| Cabinet Resolution(dot) | 128 *256 pixels | 128*128 pixels |
| Module Quanity (pcs) | 8pcs | 4pcs |
| Cabinet Pixels | 32768 pixels | 16384 pixels |
| Cabinet Weight | 10 kg per cabinet | 7 kg per cabinet |
| Cabinet Materials | Die Casting Aluminum Cabinet for rental purpose | |
| Packaging | Fly case | |
| Whole Screen Specification | ||
| Screen Brightness | ≥4500cd/m² | |
| scan | 1/16 scan | |
| Best Viewing Distance | 3.91m - 40m | |
| Max. Power Consumption | 600W/m² | |
| Average Power Consumption | 180W/m² | |
| Gray Level | 65536 levels(16 bit ) | |
| Display Color | 16M | |
| Frame Frequency | ≥60Hz | |
| Uninterrupted Working Hours | ≥72 hours | |
| Refresh rate | 3840Hz adjustable | |
| Screen Life-span | ≥100,000 hours | |
| MTBF | ≥5,000 hours | |
| Discrete Blind Spot Rate | <1/10000 | |
| Blind Spot Rate | <1/10000 | |
| Protective Scale | For indoor use only | |
| Screen Plainness | <±1mm | |
| Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz | |
| Control Mode | Synchronous display with control PC by DVI | |
| Control System | Linsn, Novastar or as you required | |
| Display Content | Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. | |
| Interface | Standard Ethernet | |
| Certificate | CE , ROHS , FCC , CCC ,ISO9001 , ISO14001 | |
Features
Our P3.91 with high definition and high resolution, high brightness, high refresh rate,
the appearance is very elegant, it looks very high end and quality is stable and durable;
applied with 500*500mm/ 500mm*1000mm cabinet, so easy to calculate the area of LED screen;
very strong and precision is very high, tolerance can be controlled in 0.1mm so the surface is very smooth,
almost no gap between cabinets;
the side locks is spring locks, this is unique among all die-casting aluminum cabinets,
especially popular in European market and North American market.
Your questions
Q1 : LED display models are generally expressed in PX , such as P2 , P3 , P4 ..... P8 , P10 , what does this mean?
A : P1.25 , P2 , P3 , P4 ..... P8 , P10 means that the pixel pitch is 1.25mm , 2mm , 3mm , 4mm ....10mm ,
which determines resolution of a display . Pixel pitch is smaller , led display resolution is higher .
Q2 : What pixel pitch should I choose on my display ?
A : Using the PX screen , it is determined mainly by the viewing distance , the size of the
display screen , the desired effect and the customer budget .
Q3 : To order a display , What kind of information do I have to offer you ?
A : You should provide width / height of the display , the main use , the viewing distance ,
the scene photos , special requirements , then I can provide you with a detailed list of quotations .
Q4 : How to install ?
A : Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram ,
free remote debugging . We can also send our engineers to the site to guide the installation if needed .
Q5 : What about the lead time ?
A : Orders less than 50 square meter display , lead time is 15 working days .
Q6 : Can I order a sample ?
A : Yes , your sample orders are welcome , after checking our quality and service ,
we are confident that you will come back for your future orders .
