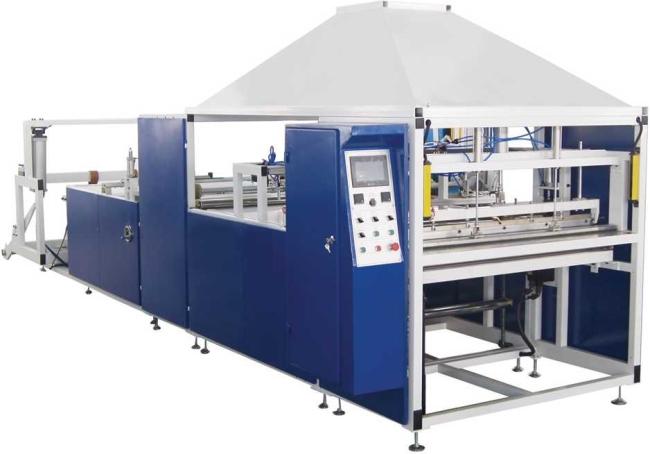

FIBC Big Bag PP Bags Fabric Cutting Machine Fabric Cut To Length Line
FIBC Big Bag PP Bags Fabric Cutting Machine Fabric Cut To Length Line
Description
Fibc Bag Container Bag Plastic Woven Fabric Ton Bag Cutting Machine is applied to the different jumbo bag fabric cutting like:Jumbo bag lay flat/double flat fabric,Jumbo bag single—layer fabric,Jumbo bag bottom cover,top cover,top mouth fabric.
Features
1.Automatic cut to length with O and X cut.
2.Cold, hot and ultrasonic cutting optional for cutting to length.
3.Only hot cutting available for O and X cut.
4.Marking with mark pen for flat fabric or ink needle for tubular fabric available as optional.
5.Both sides edge folding with ultrasonic sealing or sewing machine sewing for flat fabric available as optional.
6.Can cut both PE and PET fabric as well as O and X cut.
7.Max. Cutting width from 1350mm to 2200mm.
8.X and O cutting mould size customized.
9.Vertical type and horizontal type can be chosen according to space limitation of customers' plant.
10.Corona device available as optional.
11.Star base cutting available as optional.
According to your yield, types of big bags, communicate specifically with our salesperson, then help you finding a best solutions.
Specification
| 1 | Fabric width (mm) | 1350 (Max) |
| 2 | Cutting length(mm) | 600-6000(Max) |
| 3 | Cutting precision(mm) | ±2 |
| 4 | Production ability(Pcs/min) | 25-30(1000mm) |
| 5 | Temperature control (°C) | 300(MAX) |
| 6 | Total power(kw) | 8 |
| 7 | Power connection (v) |
380V 50Hz 3- phase with zero- and earth-wire |
| 8 | Compressed air supply |
mains pressure approx. 7bar
working pressure approx. 6bar air humidity approx. 2.0 m3/h
|
| 9 | Machine size(L*W*H)mm | 5500*2900*1500 |
