SGLCC 55% Galvalume Steel Coil AZ150 G550 AZ70 G550 Anti Finger 1000mm Width
SGLCC 55% Galvalume Steel Coil AZ70 G550 1000mm Width Az150 G550 Prime Anti-Finger GL Zinc Coated Aluminium Metal Sheet
| Product Introduction |

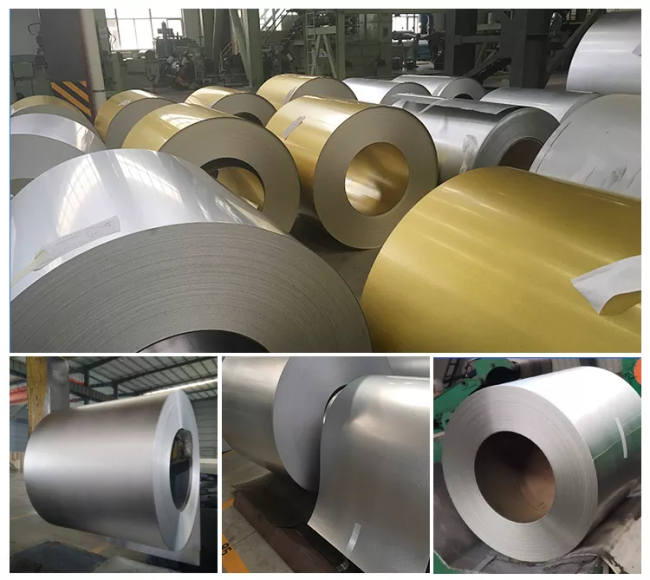

AZ150 G550 Anti-Finger print Galvalume Steel Coil
It is widely used in building materials, household appliances, automobiles, environment, machinery, ships and many other fields.
| Material | SGCC,SGCH,G350,G450,G550,DX51D,DX52D,DX53D |
|---|---|
| Hardness | Soft (HRB60),medium hard(HRB60-85),Full hard(HRB85-95) |
| Surface Treatment | Chromated/Non-Chromated, Oiled/Non-oiled, Skin pass |
| 20' Container Weight | 25-27tons (unless there is limited weight at destination port) |
| Logo | Printed according to your design |
| Delivery Time | 15-25 days upon receipt of downpayment |
| Payment Terms | flexible terms,we support T/T 30% +70% or L/C |
| Product Advantages |
| Specification of Galvalume Steel Coils |
| Name | Galvalume Steel Coil/sheet |
|
Thickness
|
0.13-3.0mm
|
|
Width
|
Galvalume steel strip:24-600 mm; galvalume steel coil:600-1250mm
|
|
Coil weight
|
Usually is 2-4.5 tons,the max coil is 10 tons
|
|
Al Zn coating:
|
30-150g/m2
|
|
Coil ID
|
508 mm
|
|
Sted grade
|
DX51D,DX52D, ,S350GD,S5S0GD,SGHC
|
|
Surface
|
Dry, Oil, Chromate, AFP/Galva clean, Non-Gr, Gr free
|
|
Packaging
|
Seaworthy export standard package, or according to the customers requirement
|
|
Delivery time
|
With 15 -25 days after receipt of deposit or L/C
|
|
Market
|
North/South America, Europe, Asia,Africa,Mid East
|
|
Productivity
|
1000 Metric ton /month
|
| standard | Jis 3321 | EN10147/EN10327 | ASTMA792 |
|---|---|---|---|
| grade | SGLCC | DX51D+AZ/DX52D+AZ | CS-B |
| SGLC340 | S22DGD+AZ | SS GRADE 230 | |
| SGLC400 | S25DGD+AZ | SS GRADE 255 | |
| SGLC440 | S28DGD+AZ | SS GRADE 275 | |
| SGLC490 | S32DGD+AZ | SS GRADE 340 | |
| SGLC570 | S35DGD+AZ | SS GRADE 550 | |
| SS55DGD+AZ |
| Galvalume Steel Coil Applications |
Appliances Industry
Outer clad sheets for washing machine, refrigerator, television, air conditioner and ventilation system, explosion-proof strip,solar water heater and appliance parts.
Industrial Instruments
Electric control cabinet, industrial refrigeration equipment, automatic vending machine.
Architecture
Roofs and outside walls of civilian and industrial buildings, garage doors, fencings and window blinds.
Agriculture
Piggery, chicken coop, granary, greenhouse pipes, etc.
Other
Muffler, heat shields of exhaust pipe and catalytic converter, auto parts & accessories under the frame, signboard in highway.

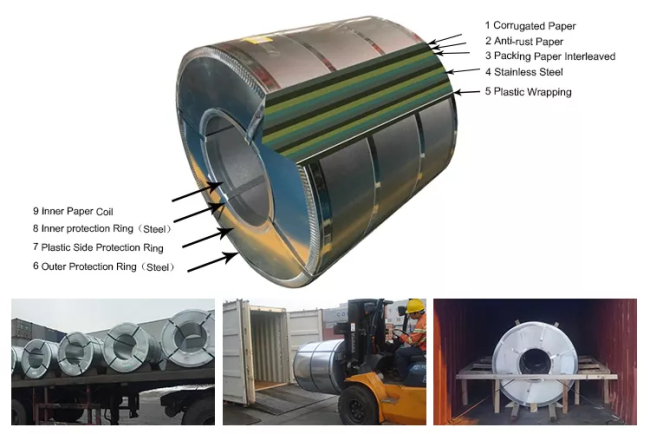

| Packing & Delivery |
Seaworthy packages
Packed with special paper, PE-film and steel box, steel cylinder/carton sleeve.
Strong steel protectors inside and perforated outside, strapped with steel strip5*5/4*4
Labeling: three waterproof labels per each coil, two on the sides, one on inner diameter of the packing
