IC Laptop WDS 620 BGA Rework Station Motherboard Repair 5300W
Trending products WDS-620 bga rework station reballing ic laptop motherboard repair equipment
Product Describable
WDS-620 bga rework station is a machine use for repairing motherboard as Laptop/ desknote / computer CPU & GPU repair, Playstation console repair, Camera controller repair, Mobile IC repair, Router controller repair ,XBOX controller repair. Suits to weld BGA,SMD,CSP,LGA,QFP,PLCC and BGA reballing. With infrared heating can avoid the IC damage due to the fast or uninterrupted heating up.
Product Application
BGA rework station could be used in :
Laptop / Notebook/ Computer motherboard repair.
Playstation / XBOX 360 and other game console repair.
Iphone 4/ 4s / 5 / 5s motherboard repair.
TV / Video / ipad mainboard repai.
SMD/ SMT / IC BGA rework
|
SPECIFICATIONS FOR WDS-620 reballing ic iphone 6 motherboard
|
|
|
|
|||
|
Original place |
Brand Name
|
Wisdomshow chips reballing machine
|
|
|||
|
|
Moed Number
|
WDS-620 reballing ic iphone 6 motherboard
|
|
|||
|
|
Superior function
|
Soldering and desoldering bga chip
|
|
|||
|
Parameter of WDS-620 Reballing ic iphone6 motherboard |
Power
|
AC 220V±10% 50/60Hz
|
|
|||
|
|
Total Power
|
5300W
|
|
|||
|
|
Heater power
|
upper temp.zone 1200w, second temp.zone 1200w, IR teom.zone 2700w
|
|
|||
|
|
Temperature Controlling
|
K-type thermocouple close-loop control,independent temp.controller, the precision can reach ±1℃
|
|
|||
|
|
PCB size
|
Max:370*380mm Min:10*10mm
|
|
|||
|
|
Applicable chips
|
Max: 80*80mm Min 1x1mm
|
|
|||
Main Features
1.The upper and lower hot air heating,which can heat up at the same time from the top of the component to the bottom of the PCB;bottom IR heating,temperature precision control within ±1℃.8 segment temperature control independently. Reballing ic iphone 6 motherboard
2. Hot air district heating for BGA and PCB at the same time,and large area IR heater preheating up for the bottom of PCB to avoid completely PCB deformation during reworking,the upper or lower temperature zones could be used alone and combine freely the energy of up and lower heating element.
3. Adopted high precision K-type thermocouple close-loop control and PID parameter self-setting system; bga welding machine
4. Temperature curves can be displayed with instant curve analysis function and multi-group user data can be saved;temperature can be tested precisely through external measurement interface,curves can be analysed,set and correct on the touch screen at any time.
5. Using high definition and adjustable CCD color optical alignment system,beam split,amplification,lessening,fine adjustment and auto focus with the function that automatic color aberration resolution and brightness adjustment,adjustable image contrast; equipped with 15 " high definition LCD monitor.
6.Adopting the HD touch human-machine interface;upper heating head and mounting head designed 2 in 1;providing many kinds of titanium alloy BGA tuyere can be rotated in 360 degree for easy installation and replacement.
7. X,Y and R angle adopted micrometer fine-tuning,accuracy locating,precision can reach ±0.01mm.
8. With the alarm function, after the BGA welding the machine can alarm by itself.In the case of temperature abuse, the circuit can power off automatically with the double over-temperature protection.Temperature parameter having password protection to prevent any modification.
Independent 3 heating zones temperature control system
Up-heater power: 1200W
Down-heater power: 1200W
IR heater power:
Using high definition + CCD color optical alignment system+ high definition LCD monitor
Multi-functional and humanized operation system
HD touch human-machine interface +8 segments temperature controlling at the same time.
Display 4 temperature curves and instant curve analysis function
Superior safety protection function
With passwork protection to prevent any modication.
Double over-temperature protection.
Pre-Sales Service
* All productiong lines have adequate quality control and QA/QC inspectors work independently from the production line, All products passed CE & ISO certification.
After-Sales Service
* Offer free spare parts and service within one year of warranty,but all the other relative cost should be on the buyer's account
* Provide Demo operation video for training ;If you have time,welcome to our company,will arrange engineers to show you the operation
Shipping
TNT, UPS ,DHL,FEDEX (IE), Aramex or by air or by sea
Payment
Paypal, Western Union, Escrow, T/T, Escrow, Aliexpress Pay, Others
|
Packaging
|
|
|
|
Size
|
81cm (L) * 69cm (W) * 89cm(D)
|
|
|
Weight
|
100kg
|
|
|
Packaging Details
|

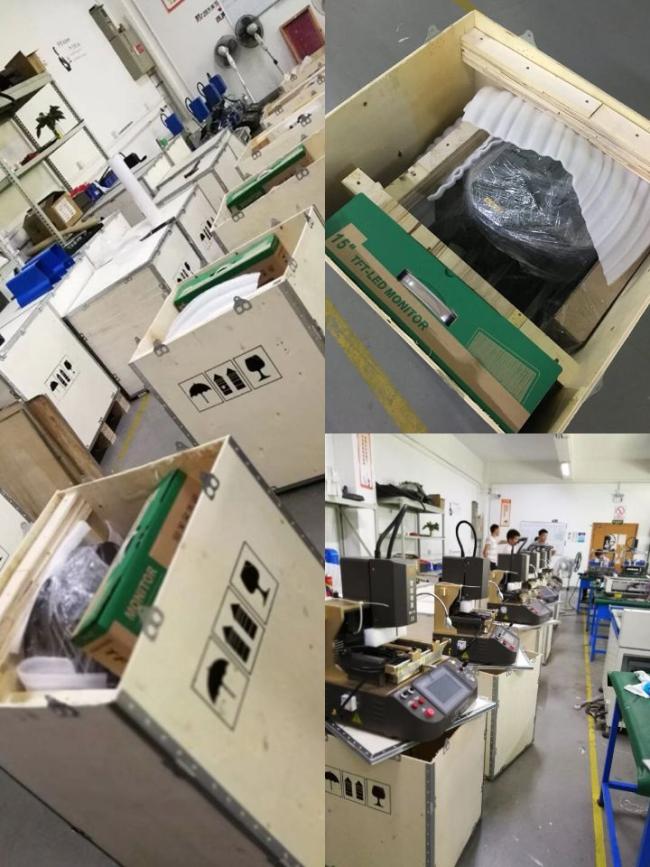

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
WDS -620 Packing Compoments :
1. WDS-620 BGA Rework Station * 1 pc
2. Alloy hot gas nozzles * 5 pcs
3. IR High Temperature Sucker * 5 pcs
4. Temperature measurementline * 1 pc
5. Brush * 1 pc
6. Fixture * 6 pcs
7. Plum blossom hander * 6 pcs
8. T nut and screw * 1 set
9. Screen * 1 pc
10. Nozzle * 1 pc
11. User Manual * 1 set
