6m 10m 12m 272kg Hydraulic Lifting Platform Electric Automotive Scissor Lift Platform
Price:
6000USD-60000USD
MOQ:
1 SET
Delivery Time:
15~30 WORKING DAYS
Brand:
Santo
Product Description
4m 6m 8m 10m 12m 14m 272kg Hydraulic Electric Battery Power Charger Automotive Scissor Lift Platform

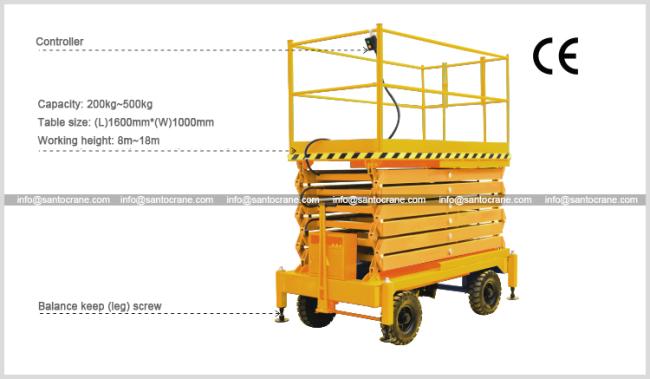

Movable Hydraulic Scissor Lifting Platform
Suitable for one single person operation, mainly used in electric power, communication, airports, convention and exhibition center, hotel, supermarket, factory, station, dock, station and other places.
Features:
- Safe and convenient operation,
- 98/37EC,EN92-1:1991,EN292-2-1991/EN280
- Electrical part adapt Schnider brand.
- Electric drive for lift move avaliable
Parameter:
| Type | SJY3 | SJY6 | SJY7.5 | SJY9 | SJY11 | SJY12 | |
| Max. working height | mm | 3000 | 6000 | 7500 | 9000 | 11000 | 12000 |
| Low table height | mm | 850 | 980 | 1250 | 1500 | 1600 | 1700 |
| Table size | mm | 1300×700 | 1850×880 | 1800×1000 | 1800×1000 | 2100×1150 | 2450×1350 |
| Capacity | kg | 450 | 450 | 450 | 450 | 450 | 450 |
| Up time | s | 16 | 54 | 72 | 83 | 88 | 90 |
| Power supply | V/Hz | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 |
| Power | kw | 0.75 | 1.1 | 1.5 | 1.5 | 2.2 | 3.0 |
| Length | mm | 1450 | 2000 | 2000 | 2000 | 2250 | 2600 |
| Width | mm | 900 | 1080 | 1200 | 1200 | 1350 | 1550 |
| Height | mm | 980 | 980 | 1250 | 1500 | 1600 | 1700 |
| Deadweight | kg | 400 | 650 | 1100 | 1260 | 1380 | 1850 |
| Type | SJY14 | SJY16 | SJY613 | SJY916 | SJY1216 | ||
| Max. working height | mm | 14000 | 16000 | 6000 | 9000 | 12000 | |
| Low table height | mm | 1800 | 1980 | 1300 | 1600 | 1600 | |
| Table size | mm | 2450×1350 | 2700×1500 | 1800×1000 | 1800×1200 | 2500×1500 | |
| Capacity | kg | 450 | 300 | 1000 | 1000 | 1000 | |
| Up time | s | 120 | 130 | 80 | 108 | 120 | |
| Power supply | V/Hz | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | |
| Power | kw | 3.0 | 3.0 | 2.2 | 3.0 | 3.0 | |
| Length | mm | 2600 | 2850 | 1950 | 1950 | 2600 | |
| Width | mm | 1550 | 1750 | 1200 | 1450 | 1550 | |
| Height | mm | 1800 | 2000 | 1300 | 1600 | 1600 | |
| Deadweight | kg | 2500 | 2680 | 1300 | 1850 | 2100 |

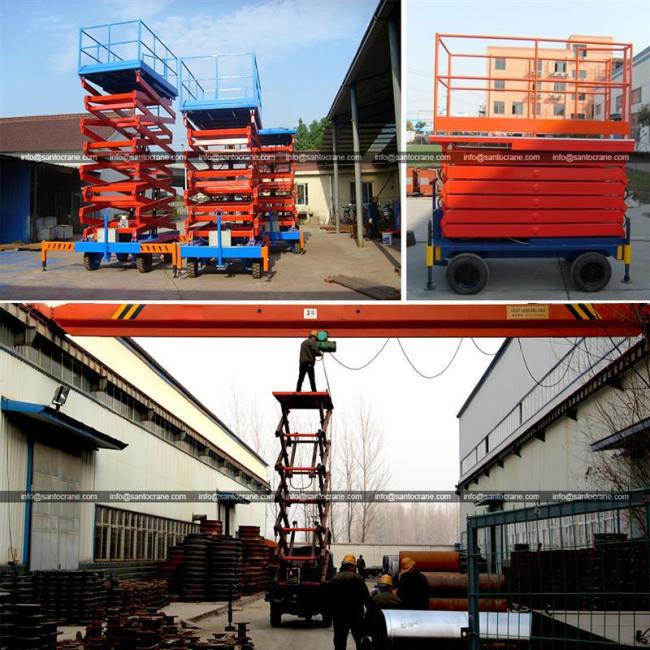

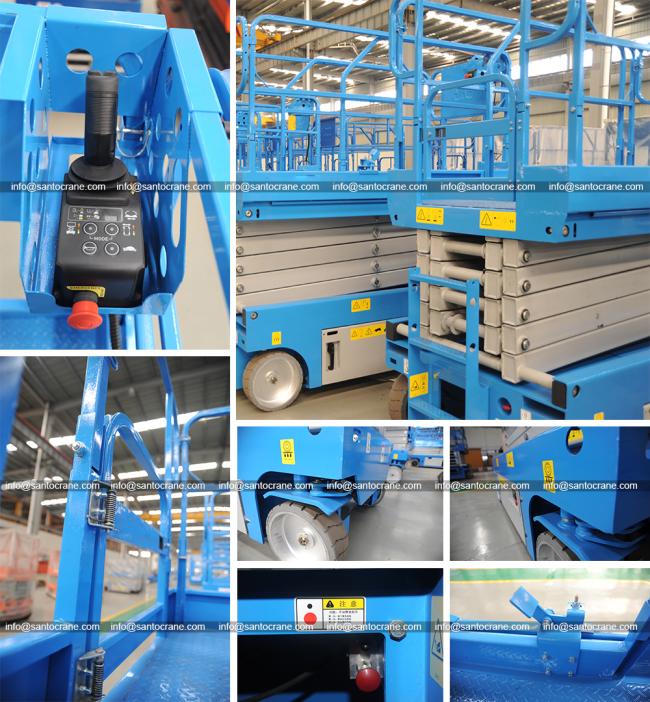

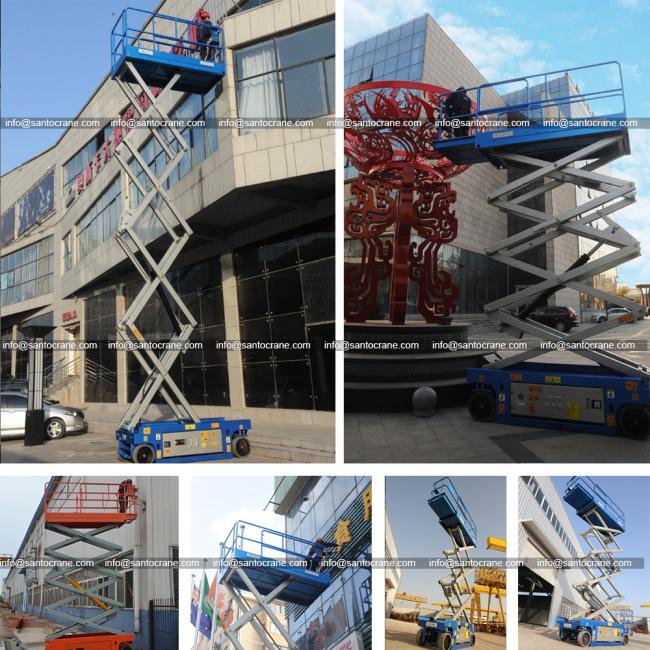

Product showing:
