Smooth Ride 3m-12m Height Rough Terrain Scissor Lifts For Outdoors
Smooth Rise Rough Terrain Scissor Lift For Outdoor Tough Working Sites
General description:
- Excellent crossing ability on the outdoor tough working sites.
- Much larger working area and more loading capacity to generate great productivity.
- Optional Hydraulic Leveling Oil Cylinder makes it more durable at uneven ground.
- Work cycle is double than other scissor lifts.
Specification:
| Type | SJY3 | SJY6 | SJY7.5 | SJY9 | SJY11 | SJY12 | |
| Max. working height | mm | 3000 | 6000 | 7500 | 9000 | 11000 | 12000 |
| Low table height | mm | 850 | 980 | 1250 | 1500 | 1600 | 1700 |
| Table size | mm | 1300×700 | 1850×880 | 1800×1000 | 1800×1000 | 2100×1150 | 2450×1350 |
| Capacity | kg | 450 | 450 | 450 | 450 | 450 | 450 |
| Up time | s | 16 | 54 | 72 | 83 | 88 | 90 |
| Power supply | V/Hz | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 |
| Power | kw | 0.75 | 1.1 | 1.5 | 1.5 | 2.2 | 3.0 |
| Length | mm | 1450 | 2000 | 2000 | 2000 | 2250 | 2600 |
| Width | mm | 900 | 1080 | 1200 | 1200 | 1350 | 1550 |
| Height | mm | 980 | 980 | 1250 | 1500 | 1600 | 1700 |
| Deadweight | kg | 400 | 650 | 1100 | 1260 | 1380 | 1850 |
Features & Details:
► Only two hydraulic lines and four fittings, 90% more simple than similar products, greatly reducing the possibility of leakage.
► Equipped with no-marking solid tires, more flexible and suitable for traveling on soft ground.
► Complete self-diagnosis and alarm function can automatically troubleshoot and reset, and reflect equipment status, battery status and dangerous working conditions, such as pit, tilt, lift and so on.
► Equipped with the DC drive motor and single hydraulic cylinder, combined with unique scissor design, greatly improving the overall efficiency. Energy saving, so that the battery cycle can last twice as long or more.
Advantages:
Santo's industrial lift tables are available in a variety of capacities and sizes, with standard or custom designs. Designed to lift anything from pallets or crates to large industrial equipment, our lift tables are available in many types: custom scissor lifts, heavy duty versions, mini scissor lifts, low profile lifts, swivel lifts, and automotive Scissor lift. Browse through our available options and find the right scissor lift for your application!
Lifting with steadiness
Advanced controlling system and first class hydraulic components to ensure you reaching the expected height with good steadiness.
Operation with Stability
High tensile steel scissor mechanism , advanced processing technology and our slot sewing techniques can ensures you feeling as stable as on the ground.
Lift and Drive with High Speed
Premium brand hydraulic components, qualified reliable pumps and valves to ensure the excellent crossing ability in the rough terrain application.
Heavy Chassis , Great Stability
Reinforced chassis with thicker steel plate, hydraulic motor drive and enlarged balance weight ensure the great stability on work.

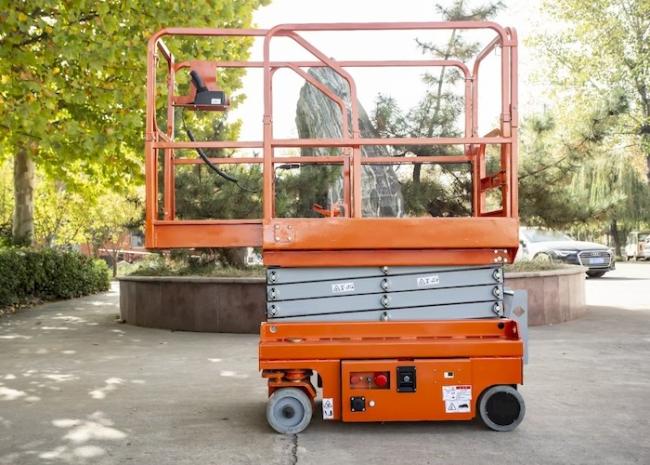

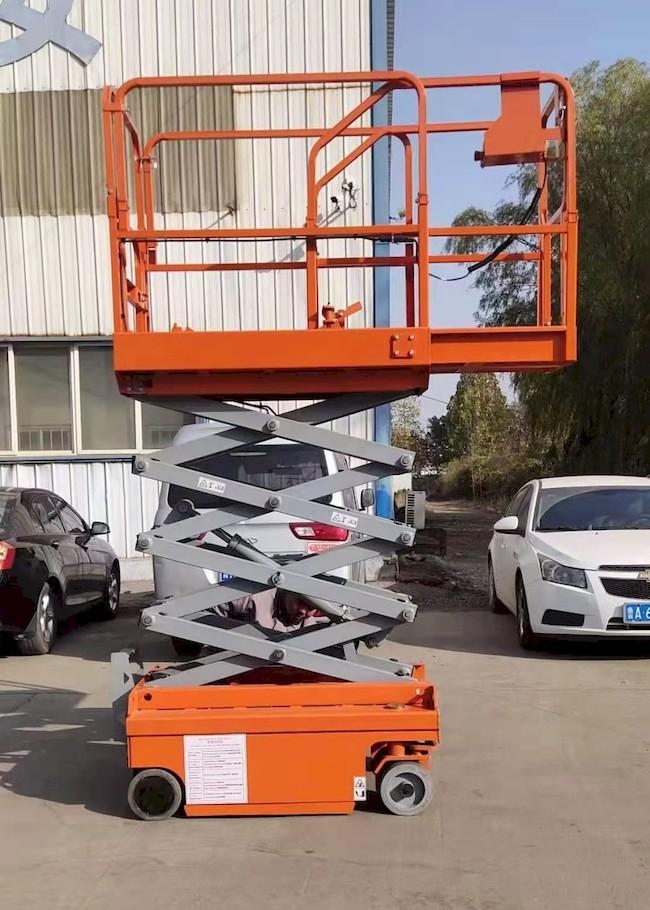

picture show:
