SANTO Steerable Battery Powered Electric Transfer Cart For Facility Assembly Line
Battery Powered Steerable Electric Transfer Carts For Facility Assembly Line
Product Description:
transport equipment for loading cargo, which can run both straightly and curvilinear along the track. It has the advantages of simple structure, convenient maintenance and large carrying capacity. It is widely applied for machinery manufacturing, metallurgy and warehouse to frequently transport or cooperate with cranes to transfer goods.
Technical Parameters:
| Capacity(t) | 6 | 10 | 16 | 25 | 40 | 63 | 100 | |
|---|---|---|---|---|---|---|---|---|
| PLATFORM SIZE (MM) | LENGTH | 3600 | 3600 | 4000 | 4500 | 5000 | 5600 | 6300 |
| WIDTH | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2800 | |
| HEIGHT | 550 | 550 | 580 | 650 | 700 | 850 | 900 | |
| WORKING SPEED (M/MIN) | 30 | 30 | 30 | 30 | 25 | 25 | 20 | |
| BOTTOM OF BOARD SIZE (MM) | 50 | 50 | 50 | 60 | 60 | 60 | 60 | |
| WHEEL BASE A(MM) | 2000 | 2000 | 2200 | 2500 | 2800 | 3200 | 3600 | |
| WHEEL BACK DISTANCE C(MM) | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
| POWER | 380V 3PH OR BATTERY | |||||||
Features:
- Sound and light alarm lamp
- Stop automatically when pedestrian or obstacle is detected.
- Emergency stop button
- Limit switches and buffers on both sides.
- The structural parts are made of Q235B rolled steel plate, 1.5 times load design and 1.25 times load test.
- With conventional electrical protection: over current, over voltage, under voltage, short circuit, overheating, grounding, leakage and other protective devices.
- Optional wireless remote control operation
Application:
The electric flat car is a kind of electric rail transportation vehicle in the factory, which solves the transportation of products between the spans in the factory. Also known as rail flat car, cross flat car, trolley, electric flat car. It has the advantages of simple structure, convenient use, easy maintenance, large carrying capacity and less pollution.
Electric flat cars are widely used in machine manufacturing and metallurgical factories, as the interior of the workshop with cranes to transport heavy objects over the span. The track flatbed truck has low height, strengthened table, easy modification and convenient maintenance.

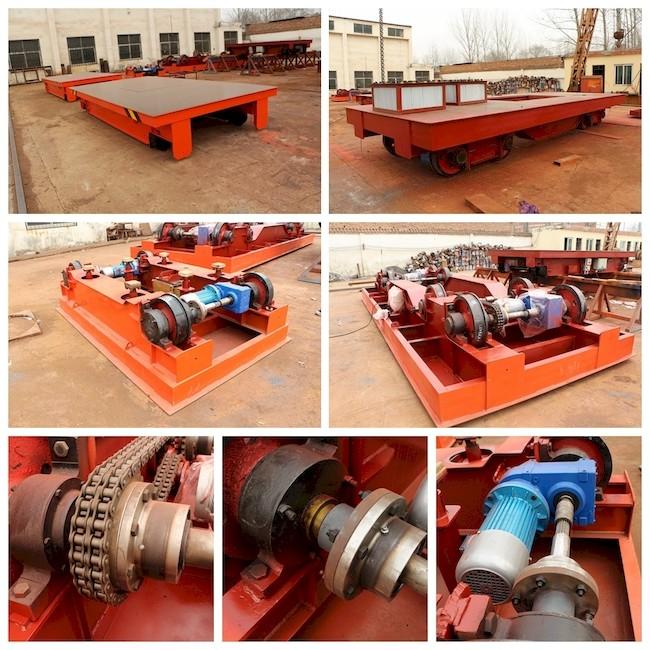

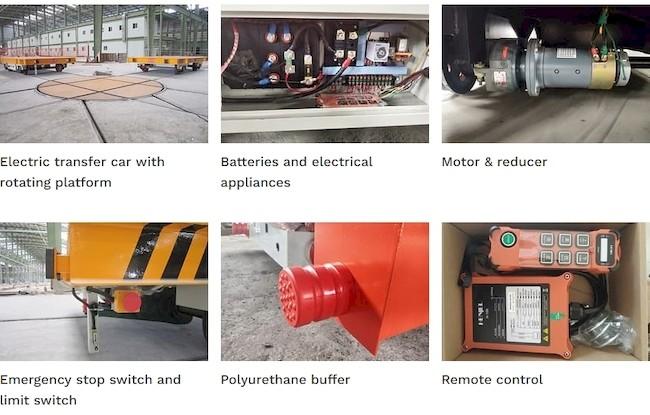

Electric Transfer Cart Photos:
