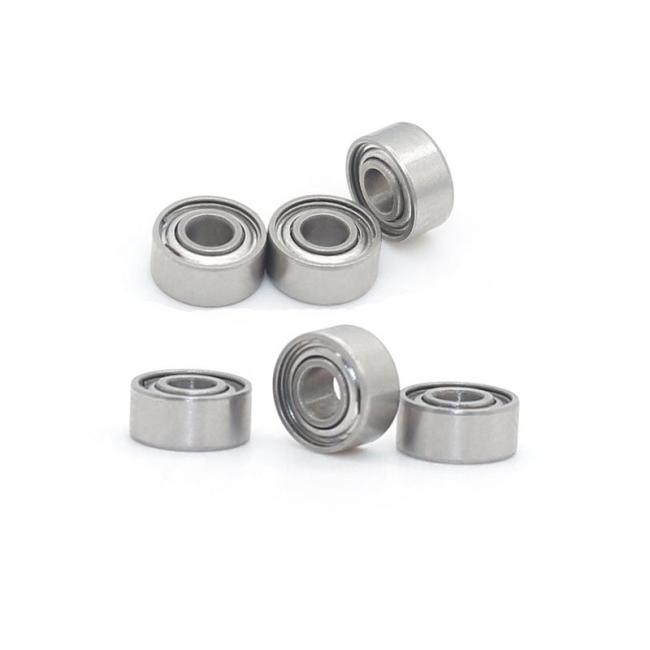

High Quality Stainless Steel Bearings 682 2x5x2.3mm Miniature Bearings S682 Zz Deep Groove Ball Bearings
High quality Stainless bearings 682 2x5x2.3mm Miniature bearing S682 ZZ Deep Groove Ball Bearings
Description: of Deep Groove Ball Bearing 682
The miniature stainless steel deep groove ball bearing is installed on the shaft, within the axial clearance range of the bearing, it can limit the axial displacement of the shaft or housing in two directions, so it can be positioned axially in two directions. In addition, this kind of bearing also has a certain self-aligning ability. When the bearing is inclined 2'～10' relative to the shell hole, it can still work normally, but it will have a certain impact on the bearing life.
Stainless steel bearing materials mainly include 420, 440, 304, 316
Specifications: of Deep Groove Ball Bearing 682
|
Product Name |
High quality Stainless bearings 682 2x5x2.3mm Miniature bearing S682 ZZ Deep Groove Ball Bearings
|
|
Brand
|
OEM
|
|
Model No
|
682
|
|
Sizes(mm)1
|
2x5x2.3mm
|
|
Material
|
Chrome steel, Gcr15, stainless steel
|
|
Sealed Type
|
ZZ metal shields
|
|
Precision
|
P0,P6,P5
|
|
Clearance
|
C0 C2 C3 C4 |
|
Features
|
High Temperature Resistance,low noise, long life
|
| 内径 (D) | 外径 (D) | 高 | 度 | 倒角(r) | 基本 动负荷 CrtNIBasic Dynamic | 基本 静负荷 CorlN)Bask Static | .扱.限转速 Limiting Speed | 型号 Reference | |||
| 开放型 (B) Open | 防尘盖型 (B1 ) Shield | 开放员 Open | 防尘蓋型 Shield | 润滑脂 Grase | 润滑剤 Oil | 开放型 Open | 防尘盖型 Shield | ||||
| ,100( | Irpm | ||||||||||
| 3 | 1 | - | 0.05 | — | 80 | 23 | 130 | 150 | 681 | — | |
| 1 | 3 | 1.5 | - | 0.05 | - | - | |||||
| 4 | 1.6 | - | 0.1 | — | 140 | 36 | 100 | 120 | 691 | — | |
| 4 | 1.2 | 2 | 0.05 | 0.05 | 112 | 33 | 100 | 120 | 681X | 681XZZ | |
| 1.5 | 5 | 2 | 2.6 | 0.15 | 0.15 | 237 | 69 | 85 | 100 | 691X | 691Xzz |
| 6 | 2.5 | 3 | 0.15 | 0.15 | 330 | 98 | 75 | 90 | 601X | 601 Xzz | |
| 5 | 1.5 | 2.3 | 0.08 | 0.08 | 169 | 50 | 85 | 100 | 682 | 682zz | |
| 5 | 2 | 2.5 | 0.1 | 0.1 | 169 | 50 | 85 | 100 | MR52 | MR52zz | |
| 6 | 2.3 | 3 | 0.15 | 0.15 | 330 | 98 | 75 | 90 | 692 | 692zz | |
| d | 6 | 2.5 | 2.5 | 0.15 | 0.15 | 330 | 98 | 75 | 90 | MR62 | MR62zz |
| 7 | 2.5 | 3 | 0.15 | 0.15 | 385 | 127 | 63 | 75 | MR72 | MR72zz | |
| 7 | 2.8 | 3.5 | 0.15 | 0.15 | 385 | 127 | 63 | 75 | 602 | 602zz | |
| 6 | 1.8 | 2.6 | 0.08 | 0.08 | 208 | 74 | 71 | 80 | 682X | 682Xzz | |
| 2.5 | 7 | 2.5 | 3.5 | 0.15 | 0.15 | 385 | 127 | 63 | 75 | 692X | 692Xzz |
| 8 | 2.5 | - | 0.2 | — | 560 | 179 | 60 | 67 | MR82X | — | |
| 8 | 2.8 | 4 | 0.15 | 0.15 | 550 | 175 | 60 | 71 | 602X | 602XZZ | |
| 6 | 2 | 2.5 | 0.1 | 0.1 | 208 | 74 | 71 | 80 | MR63 | MR63zz | |
| 7 | 2 | 3 | 0.1 | 0.1 | 310 | 111 | 63 | 75 | 683 | 683zz | |
| 8 | 2.5 | - | 0.15 | - | 560 | 179 | 60 | 67 | MR83 | MR83zz | |
| 8 | 3 | 4 | 0.15 | 0.15 | 560 | 179 | 60 | 67 | 693 | 693zz | |
| 3 | 9 | 2.5 | 4 | 0.2 | 0.2 | 570 | 187 | 56 | 67 | MR93 | MR93ZZ |
| 9 | 3 | - | 0.15 | - | 570 | 187 | 56 | 67 | 603 | 603zz | |
| 10 | 4 | 4 | 0.15 | 0.15 | 630 | 218 | 50 | 60 | 623 | 623zz | |
| 13 | 5 | 5 | 0.2 | 0.2 | 1300 | 405 | 40 | 48 | 633 | 633zz | |
| 7 | 2 | 2.5 | 0.1 | 0.1 | 310 | 115 | 60 | 67 | MR74 | MR74ZZ | |
| 8 | 2 | 3 | 0.15 | 0.15 | 395 | 139 | 56 | 67 | MR84 | MR84zz | |
| 9 | 2.5 | 4 | 0.1 | 0.1 | 640 | 225 | 53 | 63 | 684 | 684zz | |
| 10 | 3 | 4 | 0.2 | 0.2 | 585 | 204 | 48 | 56 | MR104 | MR104ZZ | |
| 4 | 11 | 4 | 4 | 0.15 | 0.15 | 960 | 345 | 48 | 56 | 694 | 694zz |
| 12 | 4 | 4 | 0.2 | 0.2 | 960 | 345 | 48 | 56 | 604 | 604zz | |
| 13 | 5 | 5 | 0.2 | 0.2 | 1300 | 485 | 40 | 48 | 624 | 624zz | |
| 16 | 5 | 5 | 0.3 | 0.3 | 1730 | 670 | 36 | 43 | 634 | 634zz | |
Advantage:
Our Services:
1.We can offer a various kind of bearing with top quality.
2.Promptness in technical support pre- and after sales.
3.We can supply the samples (some for free).
4. OEM for our customers.
5.Prompt delivery time.
Applications:
FAQ
1. who are we?
We are based in Shaanxi, China, start from 2019,sell to North America(17.00%),Eastern Asia(15.00%),Domestic Market(12.00%),Eastern Europe(10.00%),Western Europe(10.00%),South Asia(5.00%),Southeast Asia(5.00%),South America(5.00%),Northern Europe(5.00%),Oceania(5.00%),Mid East(4.00%),Southern Europe(3.00%),Africa(2.00%),Central America(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
deep groove ball bearing,needle rollerbearing,bearings, pillow block bearing,tapered roller bearing
4. why should you buy from us not from other suppliers?
Our company is located in Xian, China. With advanced technology research and development team, strong marketing and financial support, sound after-sales service, and professional engineers, we will provide you with high-quality products and good services.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union;
Language Spoken:English,Chinese
