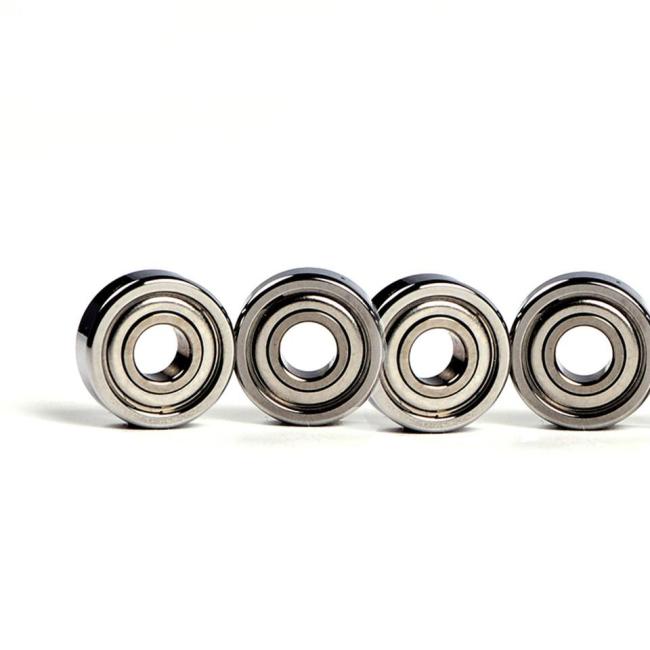

High Speed Micro Deep Groove Ball Bearing 602 602 ZZ 2*7*3.5mm
High Speed Micro Deep Groove Ball Bearing 602 602 ZZ 2*7*3.5mm
Description: of Deep Groove Ball Bearing 602
Our chrome steel miniature bearings are also available with flanged outer rings.
Most of our chrome steel miniature bearings are available as open or with metal shrouds.
Larger sizes are available with rubber or PTFE contacting seals or low friction non-contacting rubber open sea light oil lubricated.
Shielded or sealed bearings are usually supplied with grease lubrication, but shielded bearings can be supplied with instrumentation oil for low speed, low friction applications.
Thanks to our in-house relubrication facility, these miniature bearings can be supplied by specifier, with cus grease or dry lubricant.
Miniature bearings used in various applications such as gyroscopes, anemometers, flow meters, miniature gearboxes, small motors and radio controlled models.
Specifications: of Deep Groove Ball Bearing 602
|
Product Name |
High speed miniature ball bearing for rocking chair 602 ZZ 2RS 602ZZ 602-2RS
|
|
Brand
|
OEM
|
|
Model No
|
602
|
|
Sizes(mm)1
|
2*7*3.5(mm)
|
|
Material
|
Chrome steel, Gcr15, stainless steel
|
|
Sealed Type
|
ZZ (Steel Shield) 2RS (Rubber Seal)
|
|
Precision
|
P0,P6,P5
|
|
Clearance
|
C0 C2 C3 C4 |
|
Features
|
High Temperature Resistance,low noise, long life
|
| 内径 (D) | 外径 (D) | 高 | 度 | 倒角(r) | 基本 动负荷 CrtNIBasic Dynamic | 基本 静负荷 CorlN)Bask Static | .扱.限转速 Limiting Speed | 型号 Reference | |||
| 开放型 (B) Open | 防尘盖型 (B1 ) Shield | 开放员 Open | 防尘蓋型 Shield | 润滑脂 Grase | 润滑剤 Oil | 开放型 Open | 防尘盖型 Shield | ||||
| ,100( | Irpm | ||||||||||
| 3 | 1 | - | 0.05 | — | 80 | 23 | 130 | 150 | 681 | — | |
| 1 | 3 | 1.5 | - | 0.05 | - | - | |||||
| 4 | 1.6 | - | 0.1 | — | 140 | 36 | 100 | 120 | 691 | — | |
| 4 | 1.2 | 2 | 0.05 | 0.05 | 112 | 33 | 100 | 120 | 681X | 681XZZ | |
| 1.5 | 5 | 2 | 2.6 | 0.15 | 0.15 | 237 | 69 | 85 | 100 | 691X | 691Xzz |
| 6 | 2.5 | 3 | 0.15 | 0.15 | 330 | 98 | 75 | 90 | 601X | 601 Xzz | |
| 5 | 1.5 | 2.3 | 0.08 | 0.08 | 169 | 50 | 85 | 100 | 682 | 682zz | |
| 5 | 2 | 2.5 | 0.1 | 0.1 | 169 | 50 | 85 | 100 | MR52 | MR52zz | |
| 6 | 2.3 | 3 | 0.15 | 0.15 | 330 | 98 | 75 | 90 | 692 | 692zz | |
| d | 6 | 2.5 | 2.5 | 0.15 | 0.15 | 330 | 98 | 75 | 90 | MR62 | MR62zz |
| 7 | 2.5 | 3 | 0.15 | 0.15 | 385 | 127 | 63 | 75 | MR72 | MR72zz | |
| 7 | 2.8 | 3.5 | 0.15 | 0.15 | 385 | 127 | 63 | 75 | 602 | 602zz | |
| 6 | 1.8 | 2.6 | 0.08 | 0.08 | 208 | 74 | 71 | 80 | 682X | 682Xzz | |
| 2.5 | 7 | 2.5 | 3.5 | 0.15 | 0.15 | 385 | 127 | 63 | 75 | 692X | 692Xzz |
| 8 | 2.5 | - | 0.2 | — | 560 | 179 | 60 | 67 | MR82X | — | |
| 8 | 2.8 | 4 | 0.15 | 0.15 | 550 | 175 | 60 | 71 | 602X | 602XZZ | |
| 6 | 2 | 2.5 | 0.1 | 0.1 | 208 | 74 | 71 | 80 | MR63 | MR63zz | |
| 7 | 2 | 3 | 0.1 | 0.1 | 310 | 111 | 63 | 75 | 683 | 683zz | |
| 8 | 2.5 | - | 0.15 | - | 560 | 179 | 60 | 67 | MR83 | MR83zz | |
| 8 | 3 | 4 | 0.15 | 0.15 | 560 | 179 | 60 | 67 | 693 | 693zz | |
| 3 | 9 | 2.5 | 4 | 0.2 | 0.2 | 570 | 187 | 56 | 67 | MR93 | MR93ZZ |
| 9 | 3 | - | 0.15 | - | 570 | 187 | 56 | 67 | 603 | 603zz | |
| 10 | 4 | 4 | 0.15 | 0.15 | 630 | 218 | 50 | 60 | 623 | 623zz | |
| 13 | 5 | 5 | 0.2 | 0.2 | 1300 | 405 | 40 | 48 | 633 | 633zz | |
| 7 | 2 | 2.5 | 0.1 | 0.1 | 310 | 115 | 60 | 67 | MR74 | MR74ZZ | |
| 8 | 2 | 3 | 0.15 | 0.15 | 395 | 139 | 56 | 67 | MR84 | MR84zz | |
| 9 | 2.5 | 4 | 0.1 | 0.1 | 640 | 225 | 53 | 63 | 684 | 684zz | |
| 10 | 3 | 4 | 0.2 | 0.2 | 585 | 204 | 48 | 56 | MR104 | MR104ZZ | |
| 4 | 11 | 4 | 4 | 0.15 | 0.15 | 960 | 345 | 48 | 56 | 694 | 694zz |
| 12 | 4 | 4 | 0.2 | 0.2 | 960 | 345 | 48 | 56 | 604 | 604zz | |
| 13 | 5 | 5 | 0.2 | 0.2 | 1300 | 485 | 40 | 48 | 624 | 624zz | |
| 16 | 5 | 5 | 0.3 | 0.3 | 1730 | 670 | 36 | 43 | 634 | 634zz | |
Advantage:
Our Services:
1.We can offer a various kind of bearing with top quality.
2.Promptness in technical support pre- and after sales.
3.We can supply the samples (some for free).
4. OEM for our customers.
5.Prompt delivery time.
Applications:
FAQ
1. who are we?
We are based in Shaanxi, China, start from 2019,sell to North America(17.00%),Eastern Asia(15.00%),Domestic Market(12.00%),Eastern Europe(10.00%),Western Europe(10.00%),South Asia(5.00%),Southeast Asia(5.00%),South America(5.00%),Northern Europe(5.00%),Oceania(5.00%),Mid East(4.00%),Southern Europe(3.00%),Africa(2.00%),Central America(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
deep groove ball bearing,needle rollerbearing,bearings, pillow block bearing,tapered roller bearing
4. why should you buy from us not from other suppliers?
Our company is located in Xi'An, China. With advanced science and technology R&D team, strong marketing and financial support, sound after-sales service, professional engineers, we will supply you goods with high quality and good service.
