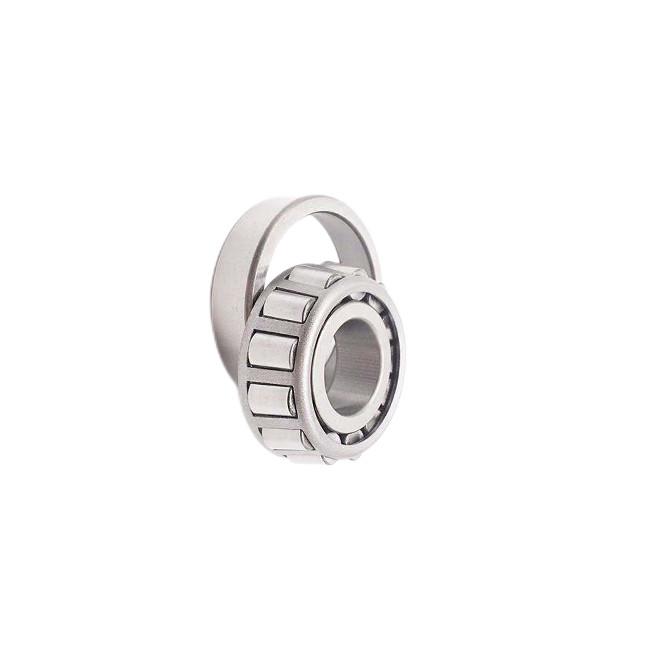

Automobile Tapered Roller Bearing 33205 25x52x22mm Tapered Cone Bearing High Quality
High Quality Automobile Bearing 33205 25*52*22mm Tapered Ball Bearing 33205
Description: of Tapered Ball Bearing
Taperedroller ring included cup and cone there two parts.Cup is outer ring, Cone comprise rollers,cage,inner ring.And the inner ring with the rollers and cage can be fitted separately from the outer ring.The tapered roller bearings are generally used to support comnined load mainly consisting of radial load. The carrying capacity of axial load depends on the contact angle of raceway of outer rings. The bigger the contact angle is, the strongerr the capacity will be.
* Accommodate axial loads in one direction
* Low friction and long service life
* Separable and interchangeable components
Specifications: of Tapered Ball Bearing 33205
|
Product Name |
High quality Tapered Ball Bearing
|
|
Brand
|
Deep dream&OEM
|
|
Model No
|
33205
|
|
Sizes(mm)
|
25*52*22mm
|
|
Material
|
Chrome Steel, Bearing steel; GCr15; carbon steel, brass
|
|
Sealed Type
|
2RS rubber seals/ ZZ metal shields/Open
|
|
Precision
|
P0
|
|
Clearance
|
C0, C2, C3, C4
|
|
Characteristic
|
Easy to replace and install, well sealed, suitable for high dust environment, multiple fixing methods are optional, and multiple
designs are used. |
|
Bearing
|
Principal Dimensions (mm)
|
Mass
|
||
|
No.
|
d
|
D
|
B
|
kg
|
|
32203
|
17
|
40
|
16
|
0.105
|
|
32204
|
20
|
47
|
18
|
0.151
|
|
32205
|
25
|
52
|
18
|
0.19
|
|
32206
|
30
|
62
|
20
|
0.3
|
|
32207
|
35
|
72
|
23
|
0.44
|
|
32208
|
40
|
80
|
23
|
0.53
|
|
32209
|
45
|
85
|
23
|
0.58
|
|
32210
|
50
|
90
|
23
|
0.61
|
|
32211
|
55
|
100
|
25
|
0.83
|
|
32212
|
60
|
110
|
28
|
1.15
|
|
32213
|
65
|
120
|
31
|
1.5
|
|
32214
|
70
|
125
|
31
|
1.6
|
|
32215
|
75
|
130
|
31
|
1.7
|
|
32216
|
80
|
140
|
33
|
2.05
|
|
32217
|
85
|
150
|
36
|
2.6
|
|
32218
|
90
|
160
|
40
|
3.35
|
|
32219
|
95
|
170
|
43
|
4.05
|
|
32220
|
100
|
180
|
46
|
4.9
|
|
32221
|
105
|
190
|
50
|
6
|
|
32222
|
110
|
200
|
53
|
7.1
|
|
32224
|
120
|
215
|
58
|
9.15
|
|
32226
|
130
|
230
|
64
|
11.5
|
|
32228
|
140
|
250
|
68
|
14.5
|
|
32230
|
150
|
270
|
73
|
17.5
|
1. High speed, High Precision, Low Noise, Long Service Life
2. Widely used
3. Large Inventories
4. High Quality and Competitive Prices
5. Various Brands
6. OEM is supported
Applications:
Tapered roller bearings are widely applied to machine tool spindles, gear reduction units, automotive transaxles, transmissions, rolling mill, mining, metallurgical industry, plastic machinery, home appliances, electric motors, pumps, machinery and other automotive components.
FAQ
1. who are we?
We are based in Shaanxi, China, start from 2019,sell to North America(17.00%),Eastern Asia(15.00%),Domestic Market(12.00%),Eastern Europe(10.00%),Western Europe(10.00%),South Asia(5.00%),Southeast Asia(5.00%),South America(5.00%),Northern Europe(5.00%),Oceania(5.00%),Mid East(4.00%),Southern Europe(3.00%),Africa(2.00%),Central America(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
deep groove ball bearing,needle rollerbearing,bearings, pillow block bearing,tapered roller bearing
4. why should you buy from us not from other suppliers?
Our company is located in Xi'An, China. With advanced science and technology R&D team, strong marketing and financial support, sound after-sales service, professional engineers, we will supply you goods with high quality and good service.
