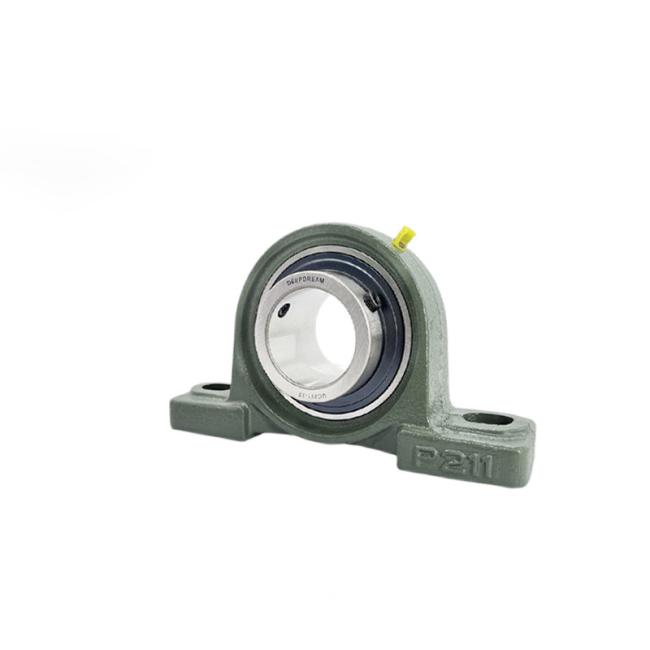

Double Sealed 2 Bore Pillow Block Ball Bearing 2 Inch UCP211 Premium Solid Base
Premium Solid Base UCP211-32 Double Sealed Pillow Block Bearings 2 Bore 2" Inch Bore Bearing Pillow Blocks UCP211
Description: of Bearing Pillow Blocks
Pillow block bearing consists of a mounting bracket (pillow block) that houses a bearing and is used in low-torque, light load applications.
With this configuration, the pillow block is bolted to a foundation, securing it, while the shaft and the inner ring of the bearing are free to rotate. Usually made of gray cast iron, pillow blocks come in two types, split or unsplit. With split pillow blocks the housing element or cap can be separated from the base. An unsplit pillow block is made from one solid piece.
Specifications: of Bearing Pillow Blocks
|
Product Name |
High quality Bearing Pillow Blocks
|
|
Brand
|
Deep dream&OEM
|
|
Model No
|
UCP211 |
|
Material
|
Chrome Steel, Bearing steel; GCr15; carbon steel, brass
|
|
Sealed Type
|
2RS rubber seals/ ZZ metal shields/Open
|
|
Precision
|
P0
|
|
Clearance
|
C0, C2, C3, C4
|
|
Usage
|
Used for Mining, metallurgy, agriculture, chemical industry, textile, printing and dyeing, conveying machinery.
|
| Bearing Model |
Shaft dia | Dimensions in mm | Weight(kg) | ||||||||||
| d(mm) | h | a | e | b | S2 | SI | Q | w | Bi | n | ds | ||
| UCP201 | 12 | 30.2 | 127 | 95 | 38 | 19 | 13 | 15 | 62 | 31 | 12.7 | MIO | 0.630 |
| UCP202 | 15 | 30.2 | 127 | 95 | 38 | 19 | 13 | 15 | 62 | 31 | 12.7 | MIO | 0.630 |
| UCP203 | 17 | 30.2 | 127 | 95 | 38 | 19 | 13 | 15 | 62 | 31 | 12.7 | MIO | 0.630 |
| UCP204 | 20 | 33.3 | 127 | 95 | 38 | 19 | 13 | 15 | 65 | 31 | 12.7 | MIO | 0.650 |
| UCP205 | 25 | 36.5 | 140 | 105 | 38 | 19 | 13 | 16 | 70 | 34 | 14.3 | MIO | 0.790 |
| UCP206 | 30 | 42.9 | 165 | 121 | 48 | 21 | 17 | 18 | 83 | 38.1 | 15.9 | M14 | 1.300 |
| UCP207 | 35 | 47.6 | 167 | 127 | 48 | 21 | 17 | 19 | 94 | 42.9 | 17.5 | M14 | 1.600 |
| UCP208 | 40 | 49.2 | 184 | 137 | 54 | 21 | 17 | 19 | 100 | 49.2 | 19 | M14 | 2.000 |
| UCP209 | 45 | 54 | 190 | 146 | 54 | 21 | 17 | 20 | 108 | 49.2 | 19 | M14 | 2.200 |
| UCP210 | 50 | 57.2 | 206 | 159 | 60 | 25 | 20 | 22 | 114 | 51.6 | 19 | M16 | 2.800 |
| UCP211 | 55 | 63.5 | 219 | 171 | 60 | 25 | 20 | 22 | 126 | 55.6 | 22.2 | M16 | 3.400 |
| UCP212 | 60 | 69.8 | 241 | 184 | 70 | 25 | 20 | 25 | 138 | 65.1 | 25.4 | M16 | 4.800 |
| UCP213 | 65 | 76.2 | 265 | 203 | 70 | 29 | 25 | 27 | 150 | 65.1 | 25.4 | M20 | 5.700 |
| UCP214 | 70 | 79.4 | 266 | 210 | 72 | 31 | 25 | 27 | 156 | 74.6 | 30.2 | M20 | 7.000 |
| UCP215 | 75 | 82.6 | 275 | 217 | 74 | 31 | 25 | 28 | 163 | 77.8 | 33.3 | M20 | 7.600 |
| UCP216 | 80 | 88.9 | 292 | 232 | 78 | 31 | 25 | 30 | 175 | 82.6 | 33.3 | M20 | 9.000 |
| UCP217 | 85 | 95.2 | 310 | 247 | 83 | 31 | 25 | 32 | 187 | 85.7 | 34.1 | M20 | 11.500 |
| UCP218 | 90 | 101.6 | 327 | 262 | 88 | 33 | 27 | 34 | 200 | 96 | 39.7 | M22 | 14.300 |
| UCP305 | 25 | 45 | 175 | 132 | 45 | 20 | 17 | 16 | 85 | 38 | 15 | M14 | 1.600 |
| UCP306 | 30 | 50 | 180 | 140 | 50 | 20 | 17 | 19 | 95 | 43 | 17 | M14 | 2.100 |
Why Choose Us:
1. High speed, High Precision, Low Noise, Long Service Life
2. Widely used
3. Large Inventories
4. High Quality and Competitive Prices
5. Various Brands
6. OEM is supported
Applications:
Papermaking machinery, speed reducer, railway vehicle axle, gear box bearing, rolling mill rolling mill rolls, crusher, vibrating screen, printing machinery, woodworking machinery, all kinds of industry.
FAQ
1. who are we?
We are based in Shaanxi, China, start from 2019,sell to North America(17.00%),Eastern Asia(15.00%),Domestic Market(12.00%),Eastern Europe(10.00%),Western Europe(10.00%),South Asia(5.00%),Southeast Asia(5.00%),South America(5.00%),Northern Europe(5.00%),Oceania(5.00%),Mid East(4.00%),Southern Europe(3.00%),Africa(2.00%),Central America(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
deep groove ball bearing,needle rollerbearing,bearings, pillow block bearing,tapered roller bearing
4. why should you buy from us not from other suppliers?
Our company is located in Xi'An, China. With advanced science and technology R&D team, strong marketing and financial support, sound after-sales service, professional engineers, we will supply you goods with high quality and good service.
