10x10mm Equal Angle Steel Q195 Q235 L Shaped Angel Iron Profile Steel
Price:
US $1,180-1,380/ Ton
MOQ:
5 Tons
Delivery Time:
7-15 work days
Brand:
IRUNT
Product Description

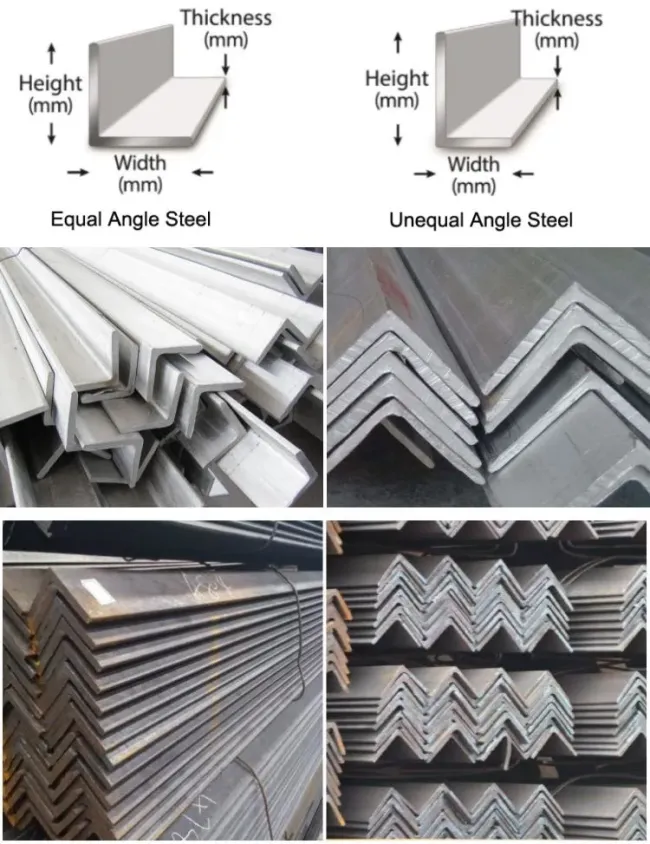

10*10mm-200*200mm Angle Bar Steel Q195 Q235 Equal L Shaped Angel Iron Profile Steel
|
Product Name
|
Steel Angle Bar
|
|
Thickness
|
3mm~24mm,as Customer's Request
|
|
Length
|
1~12m,as Customer's Request
|
|
Width
|
20~200mm,as Customer's Request
|
|
Material Grade
|
Q195,Q215,Q235B,Q345B,Q420 Series
S235JR/S235/S355JR/S355/SS440/SM40OA/SM40OBsS400-SS540 Series
ST Series
A36-A992 SeriesGr50 Series
|
|
Standard
|
AISI,ASTM,DIN,JIS,BS,GB/T
|
|
Payment Terms
|
30% T/T deposit in advance, 70% T/T balance within 5 days after B/L copy,100%Irrevocable L/C at sight,100%Irrevocable L/C after received B/L 30-60 days.
|
|
Application
|
Widely used in various building structure and engineering structure, such as Application Range the beam, Bridges, transmission tower,lifting transportation machinery, ship, industrial furnace, reaction tower, container frame and warehouse.
|
|
|
1.Reasonable price with excellent quality.
2.Abundant stock and prompt delivery .
3. Rich supply and export experience,sincere service
|
Material Grade
|
Material
|
Grade
|
|||
|
Carbon structure steel
|
Q195, Q215, Q235, Q275
|
|||
|
Low alloy high strength structure steel
|
Q295, Q345, Q390, Q420, Q460
|
|||
|
Prime Carbon structure steel
|
10#, 20#, 35#, 45#, 60#, 20Mn, 65Mn, B2, B3, JM20, SH45,S45C, C45 1015 1020 1025 1030 1035 1045 1050
|
|||
|
Alloy structure steel
|
30Mn2, 40Mn2, 27SiMn, 42Crmo,20Cr, 40Cr, 20CrMo, 35CrMo, 20CrMnTi, 30CrMnTi,20MnVB, 20MnTiB, 20CrNiMo, Q345B, 35MnBM,
40MnB,36Mn2V, 45MnV, |
|||
|
Spring Steel
|
65Mn, 60Si2Mn, 50CrVA
|
|||
|
Bearing steel
|
GCr15, GCr15GD,55SiMoV
|
|||
|
Structural steels subject to end-quench hardenability requirements
|
20CrMnTi, 30CrMnTi, 20Cr, 40Cr, 30CrMo, 42CrMoA, 27SiMn, 40Mn2H, 20CrNiMo, 40Mn2, q345b, 35MnBM, 40MnB,45MnV.
|
|||
|
Oil wells structural steel
|
37Mn5, 36Mn2V
|
|||
|
Marine anchor chain steel
|
CM490, CM690, M30Mn2
|
|||
|
Equal Angle Steel dimension
|
|||||
|
Size(L*W*T)mm
|
WEIGHT(kg/m)
|
Size(L*W*T)mm
|
WEIGHT(kg/m)
|
Size(L*W*T)mm
|
WEIGHT(kg/m)
|
|
25×3
|
1.124
|
75×8
|
9.030
|
110×14
|
22.809
|
|
25×4
|
1.459
|
75×10
|
11.089
|
125×8
|
15.504
|
|
30×3
|
1.373
|
80×6
|
7.376
|
125×10
|
19.133
|
|
30×4
|
1.786
|
80×7
|
8.525
|
125×12
|
22.696
|
|
40×3
|
1.852
|
80×8
|
9.658
|
125×14
|
26.193
|
|
40×4
|
2.422
|
80×10
|
11.874
|
140×10
|
21.488
|
|
50×4
|
3.059
|
90×6
|
8.350
|
140×12
|
25.522
|
|
50×5
|
3.770
|
90×7
|
9.656
|
140×14
|
29.490
|
|
50×6
|
4.465
|
90×8
|
10.946
|
140×16
|
35.393
|
|
60×5
|
4.570
|
90×10
|
13.476
|
160×10
|
24.729
|
|
60×6
|
5.420
|
90×12
|
15.940
|
160×12
|
29.391
|
|
63×5
|
4.822
|
100×6
|
9.366
|
160×14
|
33.987
|
|
63×6
|
5.721
|
100×7
|
10.830
|
160×16
|
38.518
|
|
63×8
|
7.469
|
100×8
|
12.276 |
180×12
|
33.159
|
|
63×10
|
9.151
|
100×10
|
15.120
|
180×14
|
38.383
|
|
70×5
|
5.397
|
100×12
|
17.898
|
180×16
|
43.542
|
|
70×6
|
6.406
|
100×14
|
20.611
|
180×18
|
48.634
|
|
70×7
|
7.398
|
100×16
|
23.257
|
200×14
|
42.894
|
|
70×8
|
8.373
|
110×7
|
11.928
|
200×16
|
48.680
|
|
75×5
|
5.818
|
110×8
|
13.532
|
200×18
|
54.401
|
|
75×6
|
6.905
|
110×10
|
16.690
|
200×20
|
60.056
|
|
75×7
|
7.976
|
110×12
|
19.782
|
|
|
|
Unequal Angle Steel dimension:
|
|||||
|
SIZE(L*W*T)mm
|
WEIGHT(kg/m)
|
SIZE(L*W*T)mm
|
WEIGHT(kg/m)
|
SIZE(L*W*T)mm
|
WEIGHT(kg/m)
|
|
50×32×3
|
1.908
|
80×50×6
|
5.935
|
110×70×10
|
13.476
|
|
50×32×4
|
2.494
|
80×50×7
|
6.848
|
125×80×7
|
11.066
|
|
56×36×3
|
2.153
|
80×50×8
|
7.745
|
125×80×8
|
12.511
|
|
56×36×4
|
2.818
|
90×56×5
|
5.661
|
125×80×10
|
15.474
|
|
56×36×5
|
3.466
|
90×56×6
|
6.717
|
125×80×12
|
18.330
|
|
63×40×4
|
3.185
|
90×56×8
|
8.779
|
140×90×8
|
14.160
|
|
63×40×5
|
3.920
|
100×63×7
|
8.722
|
140×90×10
|
17.475
|
|
63×40×6
|
4.638
|
100×63×8
|
9.878
|
140×90×12
|
20.724
|
|
70×45×5
|
4.403
|
100×63×10
|
12.142
|
140×90×14
|
23.908
|
|
70×45×6
|
5.218
|
100×80×6
|
8.350
|
160×100×10
|
19.872
|
|
70×45×7
|
6.011
|
100×80×7
|
9.656
|
160×100×14
|
27.247
|
|
75×50×5
|
4.808
|
100×80×8
|
10.946
|
160×100×16
|
30.835
|
|
75×50×6
|
5.699
|
100×80×10
|
13.476
|
180×110×10
|
22.273
|
|
75×50×8
|
7.431
|
110×70×6
|
8.350
|
180×110×12
|
26.464
|
|
75×50×6
|
5.699
|
100×80×10
|
13.476
|
180×110×10
|
22.273
|
|
75×50×8
|
7.431
|
110×70×6
|
8.350
|
180×110×12
|
26.464
|
|
75×50×10
|
9.098
|
110×70×7
|
9.656
|
|
|
|
80×50×5
|
5.005
|
110×70×8
|
10.946
|
|
|
