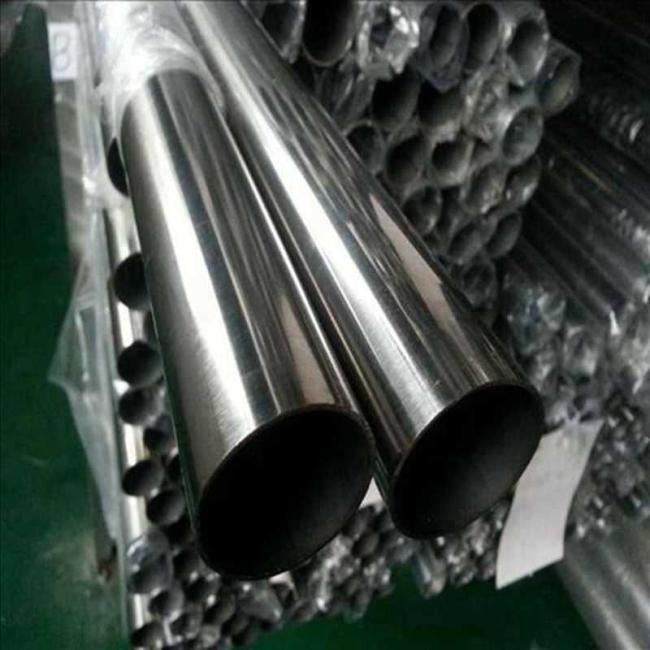

ASTM SS304 Seamless Stainless Steel Pipe 20mm Hot Extruded
ASTM A312 SS304/ 316L Cold Rolled Seamless Stainless Steel Pipe
| N.D. | O.D. | SCH 10 | SCH 30/40 | ||||||||
| W.T. | NORMAL WEIGHT | W.T. | NORMAL WEIGHT | ||||||||
| (mm) | (INCH) | (mm) | (inch) | (mm) | (inch) | (kg/mtrs) | (lbs/ft) | (mm) | (inch) | (kg/mtrs) | (lbs/ft) |
| 15 | 1/2'' | 21.30 | 0.840 | ---- | ---- | ---- | ---- | 2.77 | 0.109 | 1.27 | 0.85 |
| 20 | 3/4'' | 26.70 | 1.050 | 2.11 | 0.083 | 1.28 | 0.96 | 2.87 | 0.113 | 1.69 | 1.13 |
| 25 | 1'' | 33.40 | 1.315 | 2.77 | 0.109 | 2.09 | 1.41 | 3.38 | 0.133 | 2.50 | 1.68 |
| 32 | 1.1/4'' | 42.20 | 1.660 | 2.77 | 0.109 | 2.69 | 1.81 | 3.56 | 0.140 | 3.39 | 2.27 |
| 40 | 1.1/2'' | 48.30 | 1.900 | 2.77 | 0.109 | 3.11 | 2.09 | 3.68 | 0.145 | 4.05 | 2.72 |
| 50 | 2'' | 60.30 | 2.375 | 2.77 | 0.109 | 3.93 | 2.64 | 3.91 | 0.154 | 5.45 | 3.66 |
| 65 | 2.1/2'' | 73.00 | 2.875 | 3.05 | 0.120 | 5.26 | 3.53 | 5.16 | 0.203 | 8.64 | 5.80 |
| 80 | 3'' | 88.90 | 3.500 | 3.05 | 0.120 | 6.46 | 4.34 | 5.49 | 0.216 | 11.29 | 7.58 |
| 90 | 3.1/2'' | 101.60 | 4.000 | 3.05 | 0.120 | 7.41 | 4.98 | 5.74 | 0.226 | 13.58 | 9.12 |
| 100 | 4'' | 114.30 | 4.500 | 3.05 | 0.120 | 8.37 | 5.62 | 6.02 | 0.237 | 16.09 | 10.80 |
| 125 | 5'' | 141.30 | 5.563 | 3.40 | 0.134 | 11.58 | 7.78 | 6.55 | 0.258 | 21.79 | 14.63 |
| 150 | 6'' | 168.30 | 6.625 | 3.40 | 0.134 | 13.85 | 9.30 | 7.11 | 0.280 | 28.29 | 18.99 |
| 200 | 8'' | 219.10 | 8.625 | 4.78 | 0.188 | 25.26 | 16.96 | 7.04 | 0.277 | 36.82 | 24.72 |
| 250 | 10'' | 273.10 | 10.750 | 4.78 | 0.188 | 31.62 | 21.23 | 7.08 | 0.307 | 51.05 | 34.27 |
| Our products | Material |
| Carbon steel pipe | A135/A106/A179C/A226/A192/A226/A106B/A210/STB30/STB33/STBPG42/ST 37/ST35.8/ST42/ST45 |
| High grade carbon steel pipe | 1020/1025/1010/1012/045M10/050A20/S10C/S20C/XC18/C22/CK22 |
| Alloy steel pipe | 4140/ 42CrMo/32CrMo/15CrMo |
| Liquid steel pipe | 20#/q295b-e/q345b-e |
| Boiler steel pipe | ST35.8/SA106b/ SA106c/ SA210a/ SA210c/A333P2/ A333P11/ A33P12/ A333P22/ A33P36/A333P91/ A333P92/ A335T2/ A335T11/ A335T12/ A335T22/ A335T91/A335T23/ A335T9 |
| Other steel pipe | According to client inquiry |
Stainless steel seamless steel pipe is a hollow section, no peripheral joints of the long steel. Stainless steel seamless pipe, stainless steel seamless pipe features: First, the thicker the wall thickness of the product, it is more economic and practical, the thinner the wall thickness, its processing costs will rise significantly; Secondly, the process of the product determines its limited performance, generally low precision seamless steel tube: Wall thickness is not uniform, tube inner and outer surface brightness low, fixed length cost high, and inner and outer surface there are pits, black spots is not easy to remove; Thirdly, its detection and shaping must be processed off-line. Therefore, it in high-pressure, high-strength, mechanical structure of the material reflects its advantages. Types of stainless steel tubes: joint rolling methods are hot rolled, hot extruded and cold drawn (rolled) stainless steel tubes.
