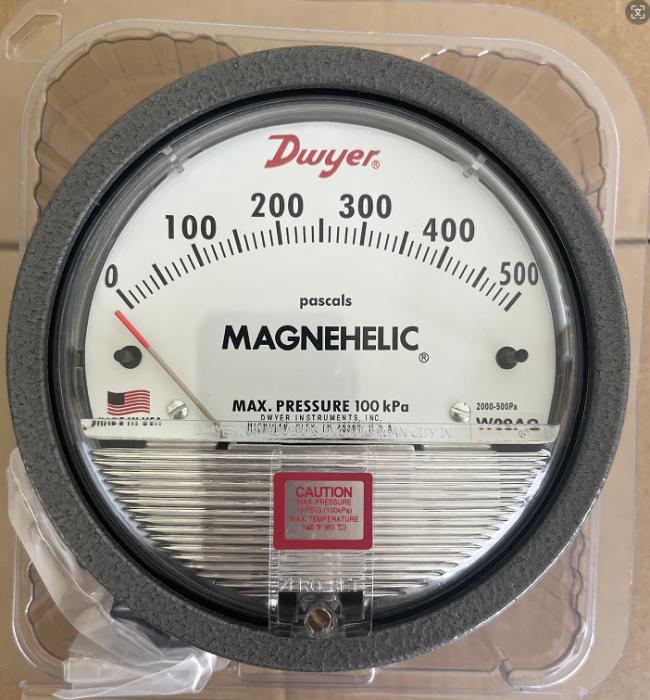

Dwyer 2000-500PA Magnehelic Differential Pressure Gauge 2000-500pa

• Precision litho-printed scale is accurate and easy to read.
• Red tipped pointer of heat treated aluminum tubing is easy to see. It is rigidly mounted on the helix shaft.
• Pointer stops of molded rubber prevent pointer over-travel without damage.
• "Wishbone" assembly provides mounting for helix, helix bearings and pointer shaft.
• Jeweled bearings are shock-resistant mounted; provide virtually friction-free motion for helix. Motion damped with high viscosity silicone fluid.
• Zero adjustment screw is conveniently located in the plastic cover, and is accessible without removing the cover. O-ring seal provides pressure tightness.
• Helix is precision made from an alloy of high magnetic permeability. Mounted in jeweled bearings, it turns freely, following the magnetic field to move the pointer across the scale.
• Samarium Cobalt magnet mounted at one end of range spring rotates helix without mechanical linkages.
• Calibrated range spring is flat spring steel. Small amplitude of motion assures consistency and long life. It reacts to pressure on diaphragm. Live length adjustable for calibration.
