China Norgren SXE9573-A71-00-13J ISO Star solenoid valve ISO 1, 5/2, solenoid pilot / spring return for sale

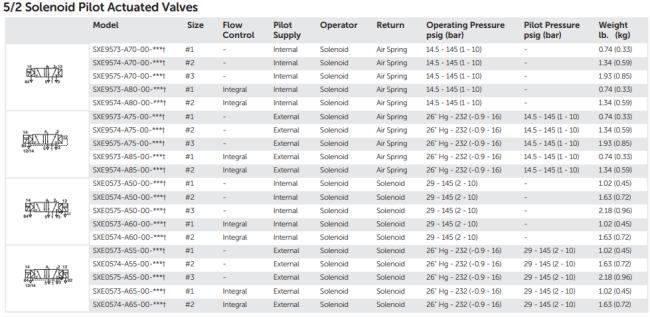

Norgren SXE9573-A71-00-13J ISO Star solenoid valve ISO 1, 5/2, solenoid pilot / spring return

Price Negotiable
Price: USD 77/PC
MOQ: 1pc
Delivery Time: 1-3 working days
Brand: nogren
Product Description

Media Compressed air
Operating Temperature -15 ... 50 °C, 5 ... 122 °F
Operating Pressure 1.8 ... 10 bar, 26 ... 145 psi
Standard ISO 5599-1
Actuation Solenoid pilot / Spring return

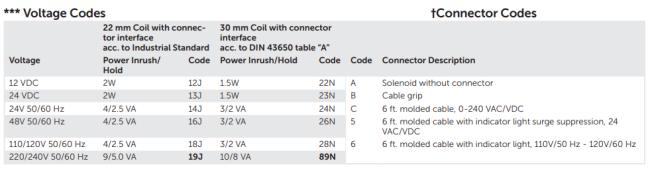

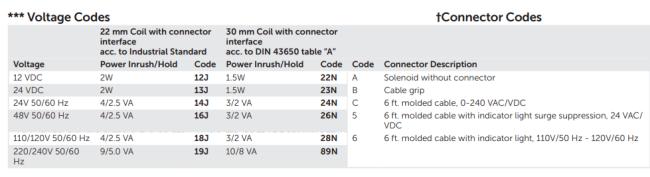

Coil Code QM/48/13J/21
ISO Size ISO #1
Valve operation 5/2
Flow 1230 l/m, 43 scfm
Materials - Body Diecast aluminum
Materials - Seals Nitrile rubber (NBR)
Certification - IP Rating IP65 (with sealed plug)
Dimensions - Height 42 mm
Dimensions - Length 146 mm
Dimensions - Width 40.5 mm
Weight 0.33 kg
Country of Origin Czechia
Range SXE
Series ISO Star
Brand

IMI Norgren
