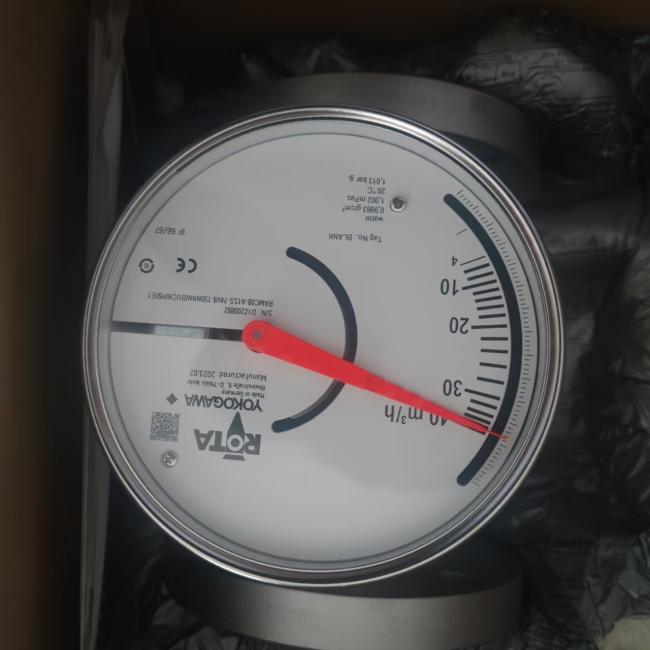

Yokogawa RAMC08 Metal Short Stroke Rotameter RAMC08-A1SS-74V8-T90NNN/B1/P6/IE1/ Stock
At first glance, the instrument looks impressive with its all stainless steel design. A closer look reveals a "float blockage" detection system. Operational safety is of the utmost importance in any flowmeter, and the RAMC is no exception – wetted parts are available in a variety of materials, and intrinsically safe outputs are available as an option.
If you value flexibility in a flowmeter – from the measurement of air to highly aggressive liquids – in situ replacement of the indicator without loss of performance – and the interchangeability of floats – then the RAMC is the right choice for you.
The RAMC combines all the advantages of the variable area principle with robust design, reliable measurement, with or without power, HART, culminating in a truly universal flowmeter for gases, liquids and steam applications.
| Process Connection Diameter | Flanged Process Connection Dimension " L " | NPT Process Connection Dimension " L " |
|---|---|---|
| 1/2 inch | 250 mm / 9.8 inches | 295 mm / 11.6 inches |
| 3/4 inch | 250 mm / 9.8 inches | 295 mm / 11.6 inches |
| 1 inch | 250 mm / 9.8 inches | 295 mm / 11.6 inches |
| 1 1/4 inches | 250 mm / 9.8 inches | 295 mm / 11.6 inches |
| 1 1/2 inches | 250 mm / 9.8 inches | 295 mm / 11.6 inches |
| 2 inches | 250 mm / 9.8 inches | 310 mm / 12.2 inches |
| 2 1/2 inches | 250 mm / 9.8 inches | 325 mm / 12.7 inches |
| 3 inches | 250 mm / 9.8 inches | 325 mm / 12.7 inches |
| 3 1/2 inches | 250 mm / 9.8 inches | N/A |
| 4 inches | 250 mm / 9.8 inches | N/A |
| 5 inches | 250 mm / 9.8 inches | N/A |
| 6 inches | 260 mm / 10.2 inches | N/A |
