WT2100 Coating Film Thickness Gauge For Measuring Non Magnetic Thickness
China Wintact WT2100 WT2110/2110B Wintact Coating/Film Thickness Gauge For Measuring Thickness Of Non-magnetic

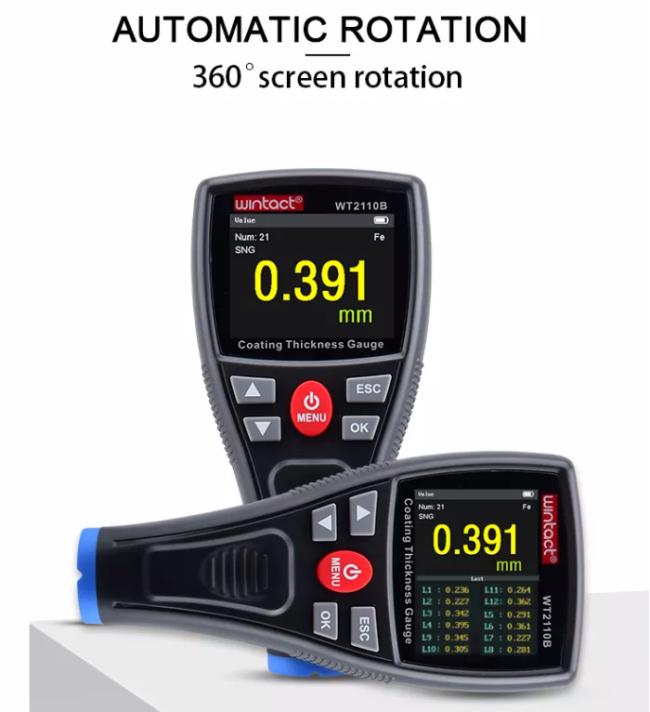

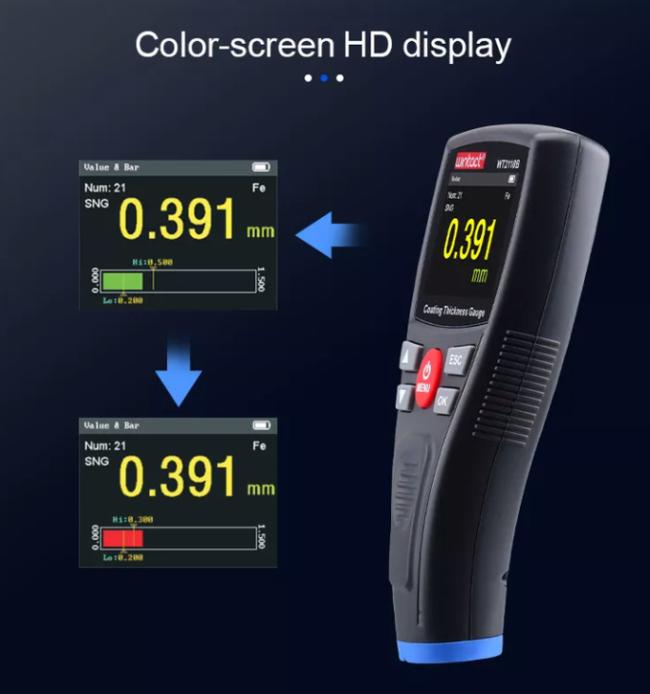

This product is a color-screen portable coating thickness gauge with high-definition display, which can quickly, non-destructively and accurately measure non-magnetic coating thickness on magnetic metal substrates and non-metallic coating thickness measurement on non-magnetic metal substrates. At the same time it can automatically identify magnetic metal substrate and non-magnetic metal substrate, and is widely used in manufacturing, metal processing industry, chemical industry,commodity inspection and other testing areas.
Coating Thickness Gauge possesses the following features:
Specifications
|

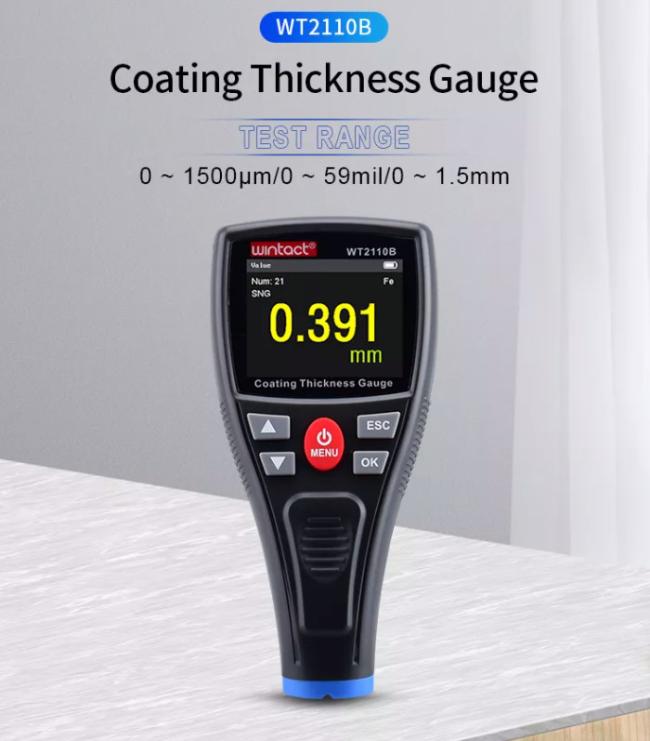

Measurement range
|
0~1500μm/0~59mil/0~1.5mm
|
|
Resolution
|
( 0.1μm(<100μm),1μm(≥100μm))/
0.1mil/0.001mm
|
|
Measurement error
|
≤150μm , ±5μm
|
|
>150μm , ±(3%H+1μm)
|
|
|
Minimum diameter of
magnetic metal substrate
|
12mm
|
|
Minimum thickness of
magnetic metal substrate
|
0.5mm
|
|
Minimum radius of curvature
for magnetic convex substrate
|
2mm
|
|
Minimum radius of curvature
for magnetic concave substrate
|
11mm
|
|
Minimum diameter of non-
magnetic metal substrate
|
50mm
|
|
Minimum thickness of non-
magnetic metal substrate
|
0.5mm
|
|
Battery
|
3x1.2V NiMH battery (weight 36.5g) or 5V1Apower adapter
|
|
Size
|
70.30*38.6*149.59mm
|
|
Weight
|
136.9(including battery)
|

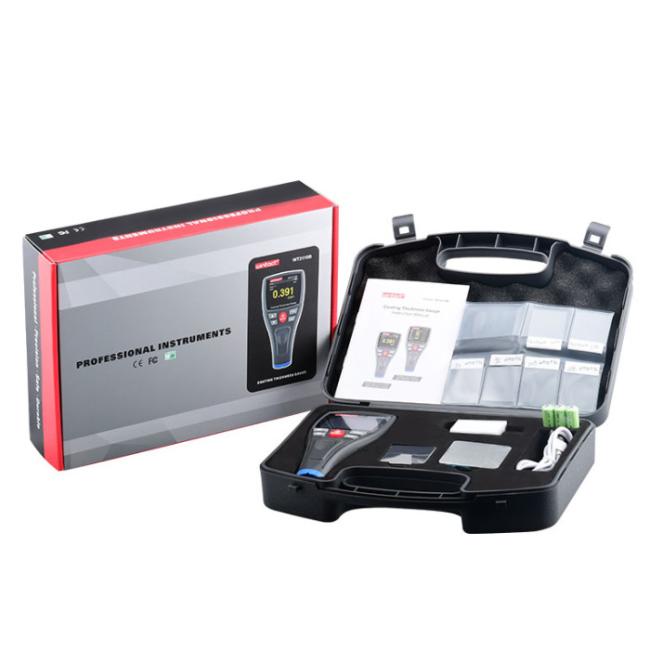

Accessories
Calibration sheet*6
Aluminum base*1
Iron base*1
USB cable*1
Manual *1
Host*1
PP box*1
Color box*1
Ni-MH rechargeable battery*3
Plug*1
