2000 Series Cast Aluminium Magnehelic Differential Pressure Gauge 2000 - 60 Pa
Price:
USD$15/PC
MOQ:
1
Delivery Time:
5-10 Work days
Brand:
MC
Product Description

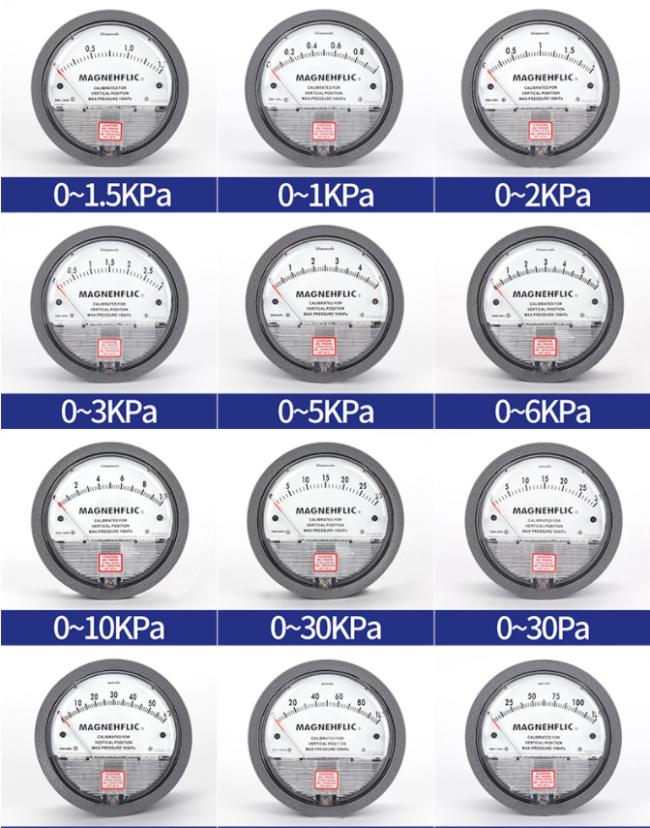

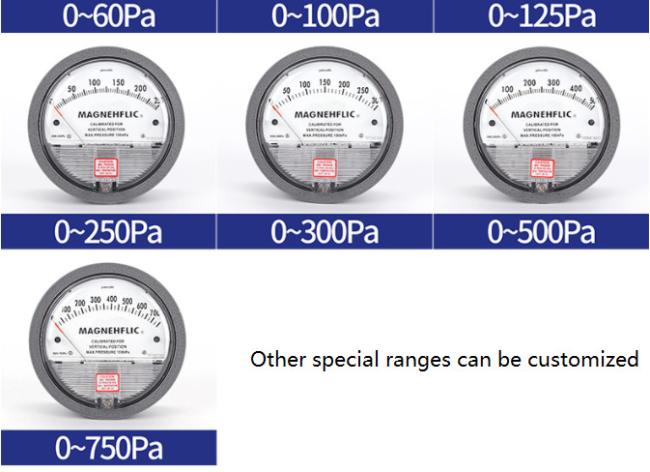

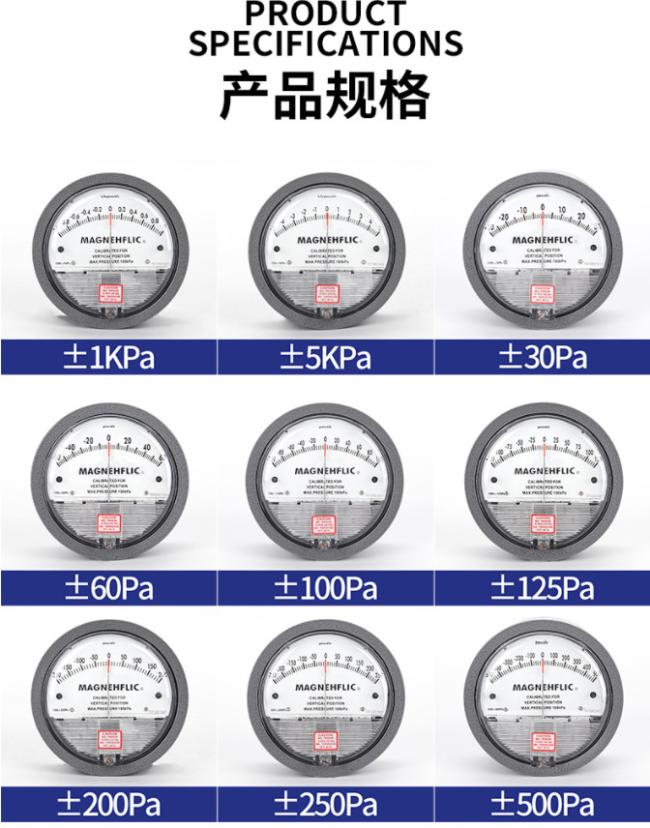

2000 Series Magnehelic Differential Pressure Gauge 2000-60 Pa Positive And Negative Pressure Wind Pressure Meter
Select the SERIES 2000 Magnehelic® Gage for a versatile low differential pressure gage with a wide choice of 81 models and 27 options to choose from. Using simple, frictionless Magnehelic gage movement, it quickly indicates air or noncorrosive gas pressures--either positive, negative (vacuum) or differential. The design resists shock, vibration, over-pressures and is weatherproof to IP67.
Select the –HA High Accuracy Magnehelic gage option for an accuracy within 1% of full scale. Also included with the –HA option at no extra cost are a mirrored scale overlay and a 6 point calibration certificate.
FEATURES/BENEFITS
• Easy to read gage through undistorted plastic face permits viewing from far away
• Patented design provides quick response to pressure changes means no delay in assessing critical situations
• Durable and rugged housing and high-quality components combine to provide long-service life and minimized down-time
• High accuracy option is twice as accurate as the standard Magnehelic gage
APPLICATIONS
• Filter monitoring
• Air velocity with Dwyer pitot tube
• Blower vacuum monitoring
• Fan pressure indication
• Duct, room or building pressures
• Clean room positive pressure indication

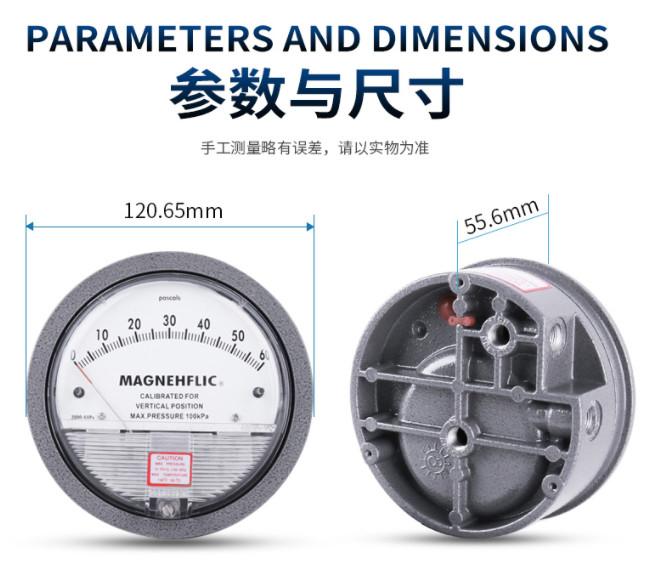

Specification
|
item
|
value
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM, ODM
|
|
Place of Origin
|
China
|
|
|
Zhejiang
|
|
Brand Name
|
MC
|
|
Model Number
|
2000 Series
|
|
Type
|
Differential Pressure Gauge
|
|
Material
|
Cast Aluminium
|
|
Medium
|
Air and non-corrosive gases
|
|
Ambient temperature
|
-7 to 60 ℃
|
|
Rating pressure
|
-68 to 100 Kpa
|
|
Weight
|
550 g
|
|
Connection
|
1/8"
|
|
Thread
|
1/2/ 1/4/ 1/8PT/NPT/G/M
|
