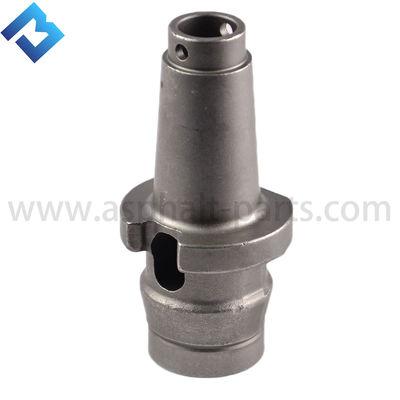

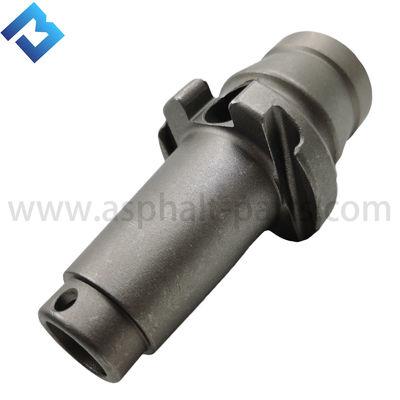

241-4559 Road Milling Cutter Holder PM200 Asphalt Milling Machine Wear Resistant Tool Holder Parts

The 241-4559 road milling cutter holder is designed for PM200 asphalt milling machines in road paving and rehabilitation projects. This wear-resistant OEM tool holder spare part holds the milling cutter firmly in the milling system, extending tool life and lowering maintenance cost.

• Heavy-duty 241-4559 asphalt milling cutter holder for PM200 milling machines.
• Wear-resistant steel construction withstands abrasive road milling conditions.
• Accurate tolerance fit for quick replacement and reduced machine downtime.
• Heat-treated surface resists deformation in continuous asphalt paving work.
• OEM spare part supplied direct from the factory for road construction fleets.

• Part number 241-4559 is a critical wear component on the drum of a 2-meter road milling machine, used to hold milling teeth and protect the base block beneath them. This tool holder features a plug-in quick-change design with a tapered fit that self-locks during operation—the harder it cuts, the tighter it grips—while a knock-out hole allows fast tooth removal.

  Material and Process
  The holder body is typically forged from AISI 4140 or 42CrMo alloy steel, then quenched and tempered to 42–50 HRC, balancing impact toughness with wear resistance. The finished tapered bore forms an interference fit with the tooth shank, with a standard 30° taper and an interference of 0.08–0.12 mm, ensuring the tooth rotates freely during cutting without loosening.

  Key Technical Parameters
  The bore diameter is usually 20 mm, matching round-shank milling teeth of the same shank size. Fit accuracy directly affects service life: if the fit is too loose, tooth life drops by 30–50% and holder replacement frequency doubles. A wear indicator groove on the holder shoulder allows visual assessment of remaining life. Hydraulic pressing is recommended during installation, with axial force controlled at 3,500–4,500 N to avoid interference deviation caused by hammering.

  Use and Maintenance
  The milling tooth must rotate freely inside the holder; once it seizes, holder wear accelerates sharply. Regular spraying with a water-based asphalt emulsifier helps remove buildup and maintain rotation, extending life by 20–40%. If grooves appear on the holder bottom face, replace it promptly to prevent damage to the drum base.

Suzhou Benit Machinery Technology Co., Ltd. specializes in manufacturing and retailing after-market parts for asphalt pavers, milling machines and road rollers. We supply daily maintenance, overhaul and technical service for road construction companies worldwide. Our main products include asphalt paver screed parts, leveling systems, auger blades and rubber tracks; milling machine conveyor rollers, spiral cables, road milling teeth, holders and spare parts chain; and road roller rubber shocks, water pumps and spray nozzles. Located in Taicang, Suzhou, Jiangsu province, Benit enjoys convenient water, land and air transportation, ensuring timely delivery and export. Our parts are exported to Indonesia, Moldova, Nigeria, Sudan, Sweden and many other markets with stable, long-term cooperation. Benit always adheres to the management concept "honest, quality first, service first", constantly upgrading products and offering professional technical support, perfect after-sales service and complete product stock.

Q1. Are you a manufacturer?
A1: Yes, we have workshops and automatic production lines for rubber products, screed plates and electronic products. For other items we are an OEM supplier.
Q2. What is your supply capacity?
A2: Annual output of 650000 track pads and large monthly capacity for milling parts.
Q3. Can you provide samples?
A3: We can provide samples, but the sample fee and freight are paid by the buyer.
Q4. Do you have a minimum order?
A4: It depends on different products. Normally MOQ 1 pcs is acceptable.
Q5. What is your delivery time?
A5: Around 5-15 days depending on products and quantities, please confirm with our sales rep.
Q6. Payment terms?
A6: T/T, L/C at sight and Western Union are all acceptable and negotiable.
Q7. CIF / FOB / EXW?
A7: FOB Shanghai or EXW with factory address in Taicang, Suzhou city, Jiangsu province. Please send your destination port for a CIF quote.
Q8. Shipping methods?
A8: Air freight cargo, train or sea shipment.
