DIMEX L72 High UV uPVC Profiles for Casement Window & Door Systems

DIMEX Lotus 72 uPVC Profiles

The structure design of the L72 system with 6chambers and 3 seals. It has passed the system certification of the international authority IFT. This system features the same high-end design and technical benefits of E82 system on an economical 72mm and 5 chambers/6chambers platform with an innovative 3-level center seal gasket design. The L72 is the perfect match to fulfill all technical requirements stipulated by European building regulations. This windoor system is the perfect solution for low-energy high-rise projects requiring windows with Uw of 1.3 W/m2.K.

L72 Casement Windoor Profiles' Features:

1.6 chambers and 3 seals, passed the system certification of IFT.

2.The hardware is versatile and easy to select and assemble

3.Excellent energy saving effect

4.Excellent sound insulation

5.Excellent sealing

6.Wind pressure rating P3 ≥ 4.0 KPa

7.Safe and reliable

8.Easy to clean and maintenance free.

9.System Uf 1.3 W/.K (including steel reinforcements)

10.System depth :72mm - 5 chambers

11.Glazing width range from 8mm - 46mm

Specifications:
Cross section:72mm
Profile type: frame, sash, mullion
Color: white, brown, blue, etc.
Processing: extrusion, laminated,

Accessories:
glazing bead, coupling, seal strip, post, cover, etc.

Certificates:
SKZ, ift, CE, TUV, SGS, ISO9001.

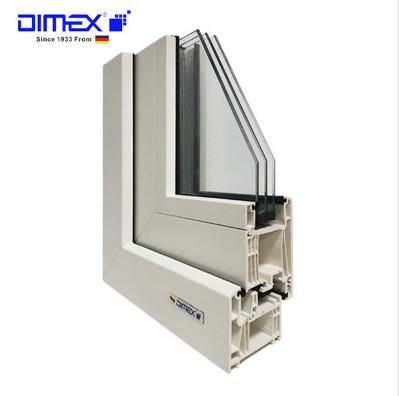

Pictures, Structure & Drawing:

Casement Window/Door: inward opening, outward opening

Tilt & Turn Window/Door: inward opening, ourtward opening

Color:

Certificates:

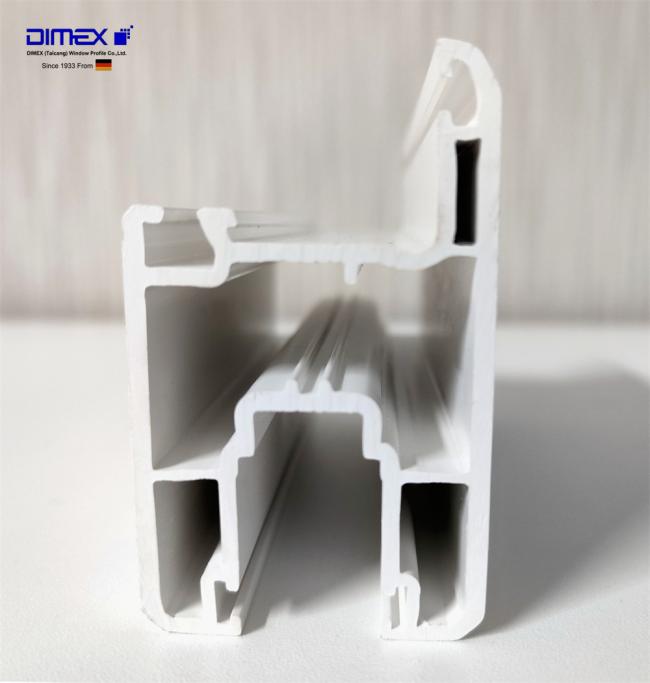

Samples of uPVC profiles

sliding frame, casement mullion, frame, sash
