Profiles Manufacturer:

DIMEX is a German specialist of uPVC window/door profiles and systems. It was founded in Germany in 1933, with about 90 years history till now. GKBM acquired it in 2010.

L65 high UV features:

1. Colour options: Standard white, Full color( homogeneous),Color Co- extruded, Lamination;
2. Glazing width of 22mm,24mm, 28mm, 33mm and 38mm are available, improving thethermal and sound insulation performances of windows and doors;

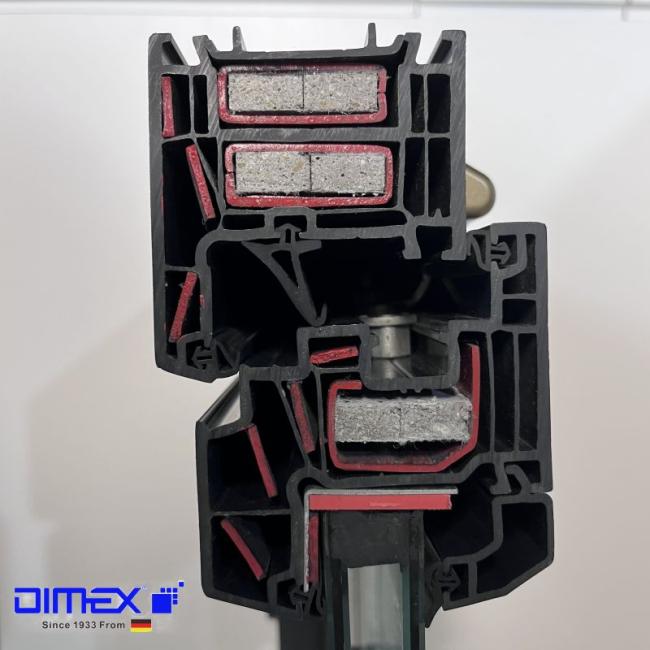

3. This series is a five-chamber triple-seal structure, which greatly improves the sealing performance, sound insulation and thermal insulation;
4. The window sash is designed with "a large forehead " and the drainageis more smooth, which can effectively prevent the sash from being frozen in winter;
5. The visible surface thickness is not less than 2.5mm;the hardware is common and convenient for fitting;
6. The customer can select the appropriate thickness of rubber gaskets according to the corresponding glass thickness and try installing the glass for verification.

L65 uPVC Pfofiles Specifications:

Casement window/door profiles, there are 35, 50, 55, 60, 65, 72, 82.
Sliding window/door profiles, there are 82, 90, 127, 195, etc.
Profile type: frame, sash, mullion
Color: white, standard white, extrusion

Accessories:

Glazing bead, coupling, seal strip, post, cover, etc.

Our Certificates:

SKZ, ift, CE, TUV, SGS, ISO9001.

Product Pictures:
