Female Ethernet Coupler Wall Plate Rj11 Faceplate Con Jack
Price:
$0.25 - $0.50/Pieces
MOQ:
2000 Pieces
Delivery Time:
Negotiable
Brand:
CHNOK or OEM
Product Description

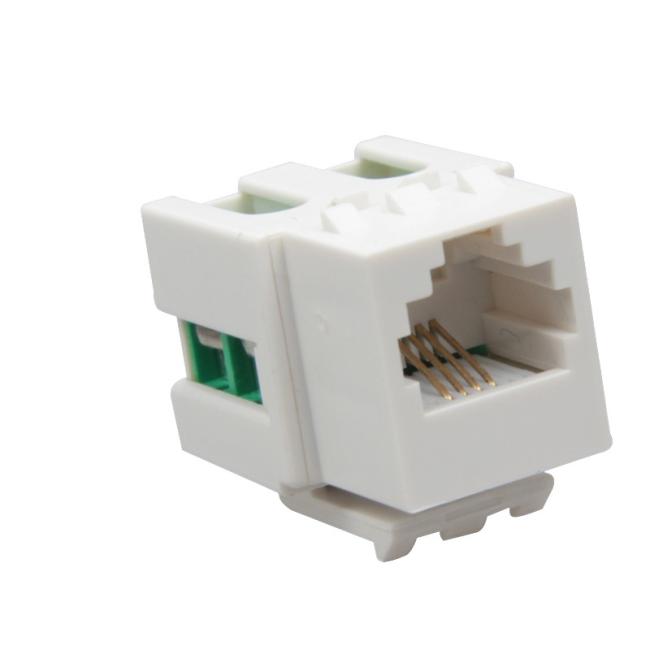

RJ11 CAT3 Keystone for Standard Wall Plate
| Electrical | |
| Voltage rating : | 125 VAC RMS |
| Current rating : | 1.5 AMP |
| Contact resistance: | 100 Milliohms MAX |
| Insulation resistance: | 1000 Megohms MIN @ 500 VDC |
| Dielectric strength: | 750 VAC RMS 60Hz, 1MIN |
| Mechanical | |
| Housing material: | PC UL94V-0 |
| Inser material: | lame retardancy ABS UL94V-0 |
| PCB material: | FR-4 Thickness: 1.6mm |
|
Contact material: |
Phosphor bronze stamp PIN T=0.35mm |
| IDC Contact material: | Phosphor bronze T=0.50mm with nickel platin |
| Wire: | AWG 24-26 |
| ENVIRONMENTAL | |
| Storage: | -40° TO +85° |
| Operation : | 0° TO 70° |
| Conform to TIA/EIA 568B Category 5e Mates with modular plug conforming to FCC part 68, Subpart F. |
