LLANO LN-AT12 Standard CNG Pressure Regulator Reducer For Car Fuel System Parts
LLANO LN-AT12 Standard CNG Pressure Regulator Reducer For Car Fuel System Parts
AT12 CNG pressure regulator is equipped with a low pressure solenoid valve. It is a 2-stage
pressure reducer for traditional CNG sequential injection systems.
| Gas fuel type | CNG |
| Work for | CNG sequential injection system |
| Material | Die cast aluminium body |
| Size | 12cm*15cm*15.5cm |
| Weight | 1.8 kg |
| Max inlet pressure | 26 MPa |
| Outlet pressure | adjustable from 160 to 280 kPa |
| Coil voltage | 12 V DC |
| Coil power | 17 W |
| Inlet Connection | M12x1 pipe Ø 6 mm |
| Outlet connection | Swivel fitting Ø 12.5 mm |
| Coolant liquid connections | for rubber pipe Ø 8 mm |
| MAP connection | for rubber pipe Ø 6 mm |
| Working temperature | -40~120 °C |
HUNAN LLANO ELECTRONIC TECHNOLOGY CO.,LTD.
ADD: No. 304, Block A12, Jindaoyuan(Phase VI) Industrial Park, 169 Huizhi Middle Road,
High Tech Development Zone, Changsha, Hunan, China.

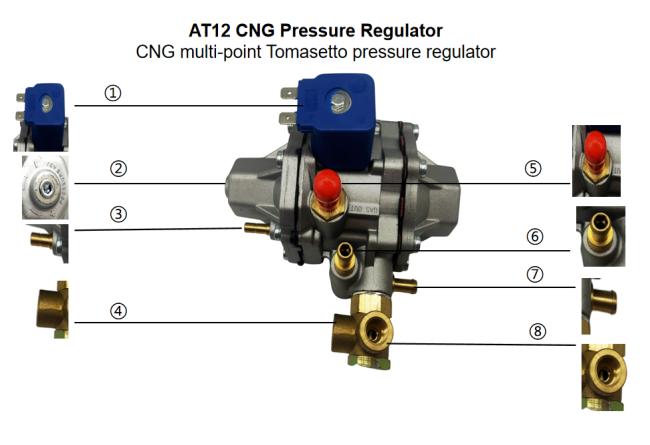

①electromagnetic valve
②pressure adjustment knob
③vacuum pipe interface
④pressure guage interface
⑤low-pressure pipe interface ∅10mm
⑥antifreeze hose interface ∅8mm
⑦antifreeze hose interface ∅8mm
⑧high pressure steel pipe interface
