Premium Needle-Punched Short Fiber Non Woven Geotextile Fabric For Soil Stabilization
Our Short Fiber Geotextile features a highly irregular, interconnected maze of short synthetic fibers that are mechanically bound through a specialized needle-punching matrix. This distinct structural network allows the fabric to absorb and distribute localized heavy stresses, making it a reliable solution for structural stabilization. Acting as a hydraulic gatekeeper, this non-woven short fiber fabric allows water to pass through freely while preventing fine silts from migrating into clean aggregate layers. Its excellent conformability ensures it wraps seamlessly around irregular rock profiles, creating a durable protective barrier that prevents biological clogging and preserves soil layers over time.
| Specification | 100 | 150 | 200 | 300 | 400 | 500 | 600 | 800 | Remark |
|---|---|---|---|---|---|---|---|---|---|
| Quality deviation per unit acreage% | -8 | -8 | -8 | -7 | -7 | -6 | -6 | -6 | |
| Thickness,mm≥ | 0.9 | 1.3 | 1.7 | 2.4 | 3.0 | 3.6 | 4.1 | 5.0 | |
| Width deviation for range,%m | 0.5 | ||||||||
| Mightiness at break,KN/m ≥ | 2.5 | 4.5 | 6.5 | 9.5 | 12.5 | 16.0 | 19.0 | 25.0 | Vertical and horizontal |
| Elongation at break,% | 25-100 | Vertical and horizontal | |||||||
| CBR bursting strengthk,KN≥ | 0.3 | 0.6 | 0.9 | 1.5 | 2.1 | 2.7 | 3.2 | 4.0 | |
| Effective aperture O90(O95)mm | 0.07-0.20 | ||||||||
| Vertical osmotic coefficient,cm/s | K x(10-1-10-3) | K=1.0-9.9 | |||||||
| Tearing strength, KN≥ | 0.08 | 0.12 | 0.16 | 0.24 | 0.33 | 0.42 | 0.46 | 0.60 | Vertical and horizontal |
- Superior Fabric Uniformity: Our advanced needle-punching tech ensures zero thin spots and consistent flow rates, preventing unexpected site failures.
- Eco-Safe Material Matrix: Made from chemically inert, virgin-grade fibers that endure aggressive soil conditions without degrading or leaching.
- 24/7 Remote Tech Support: Our engineers provide instant online consulting for roll layout calculations and installation troubleshooting to keep your projects on track.
- Asphalt Road Overlays: Absorbing stress between old concrete roads and new asphalt toppings to retard reflective cracking.
- Sports Field Sub-bases: Heap leach pads, evaporation ponds, and oil & gas containment.
- Gabion Wall Linings: Placed behind wire gabion baskets to prevent the backfill earth from washing out through the rock voids.

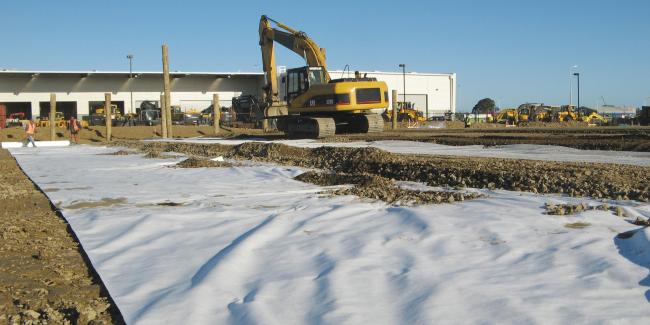

- Foundation Mud-Control: Installed on soft construction access roads to prevent heavy machinery from sinking into wet subgrade soil.
